Stock No: 388224 Enquire about this vehicle Enquire via

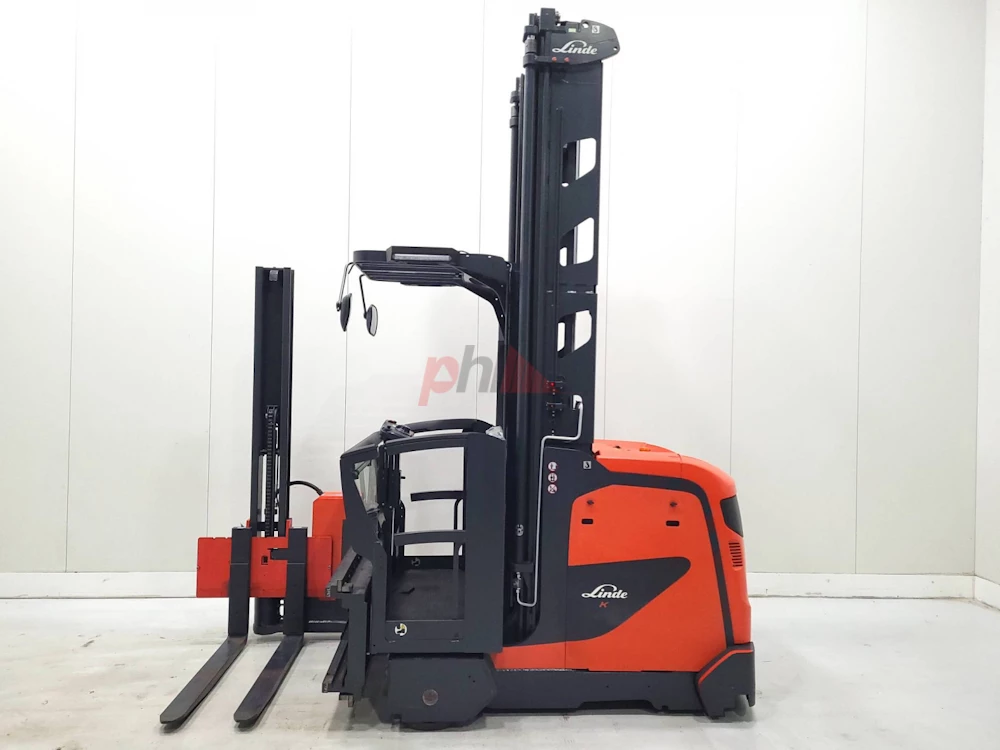

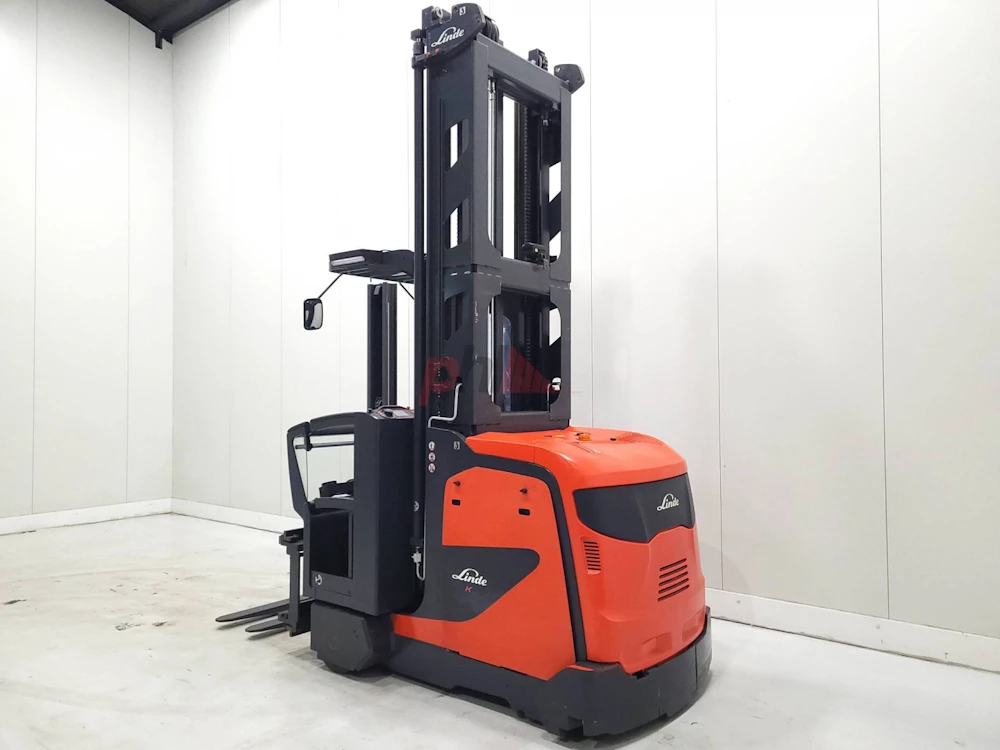

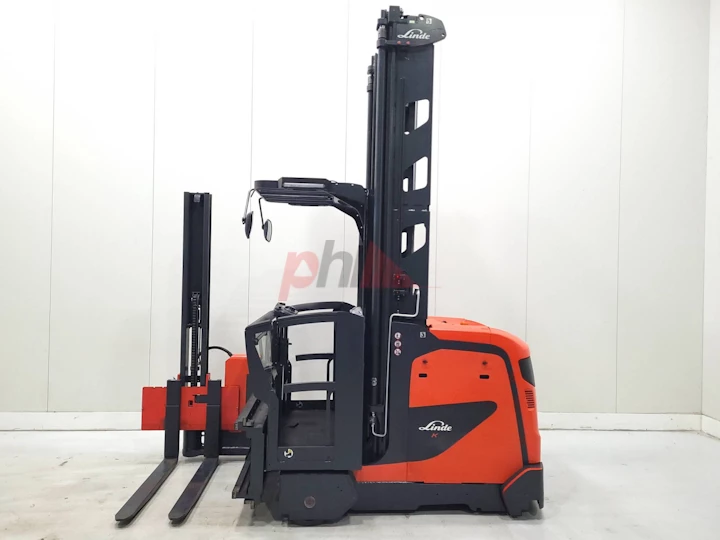

LINDE TURRET MAN UP
£££££ Login to see price Register for a trade account Model K
Year 2022
Euromast 2W746
Hours 314
Capacity 1000 kg
Lift height 5600
Download
Share
Further Vehicle Details
Specification:
Type TURRET MAN UP
Make LINDE
Valves
Character.
Load Centre (c) 625 mm

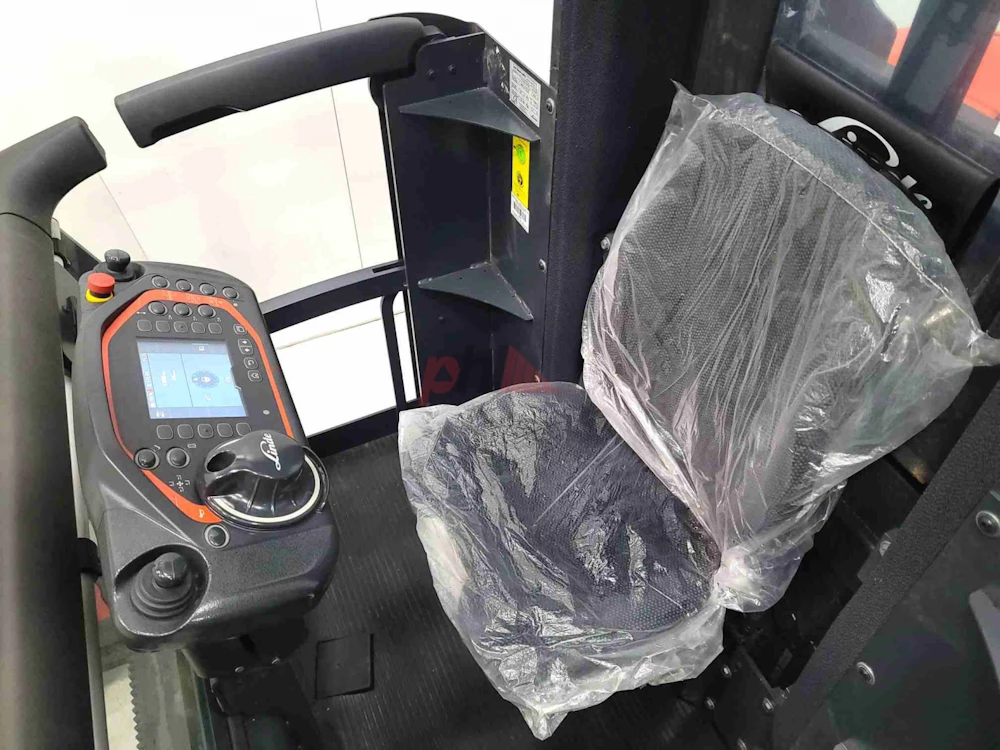

Operating mode (Characteristic) Seated
Wheelbase (y) 1614 mm
Weights
Service weight (Total weight ) 7081 kg
Wheels
Tyres type Polyurethane
Tyre size front Very good mm
Tyre size rear Very good mm
Dimensions
Lift height (h3) 5600 mm
Extended height (h4) 8200 mm
Height of overhead guard (cabin) (h6) 2555 mm
Overall length (l1) 3522 mm
Overall width (b1/b2) 1160/1500 mm
Forks length (l) 1205 mm
Fork carriage width (b3) 890 mm
Ground clearance, mast (m1) 40 mm
Ground clearance, centre of wheelbase (m2) 87 mm
Turning radius (Wa) 1879 mm
Collapsed height (h1) 3900 mm
Forks height (s) 50 mm
Forks width (e) 120 mm
Fork spread (min/max) (b5) 470 mm
Length of chasis (l7) 1614 mm
Seat/stand height (h7) 460 mm
Fork height, lowered (h13) 60 mm
Rotator length 1520 mm
Pick height (h28) 7660 mm
Platform height, raised (h12) 6060 mm
Auxiliary lift (h9) 1800 mm
Fork pivot point (l8) 1198 mm
Track width, front (b10) 1295 mm
Rotator width (F) 267 mm
Traverse stroke (b7) 1400 mm
Traverse frame width (B) 1495 mm
Rotator length (A) 625 mm
Overall width of chassis (b1) 1160 mm
Overall width of track wheel axle (b2) 1500 mm
AST (AST) 1800 mm
Performance
Service brake electromagnetic
Drive
Battery weight 1326 kg

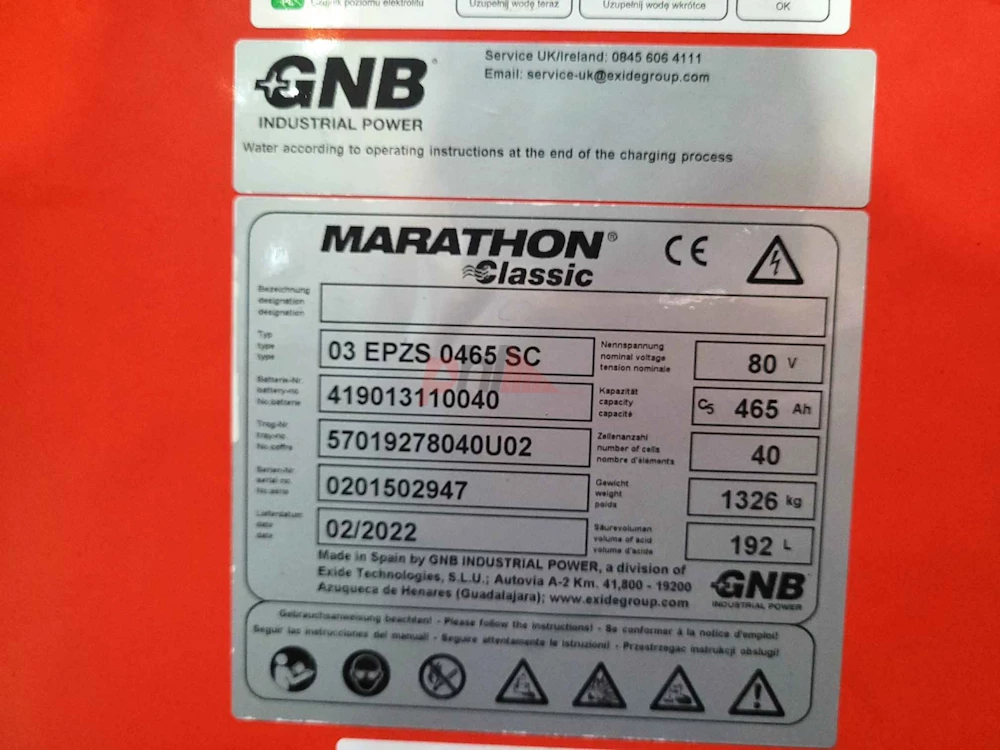

Battery voltage/capacity 80 / 465 V/Ah
Battery (Acc. to DIN) GNB Marathon
Engine
Engine type (Engine type) electric
Extras
Extras LED, USB 5V socket
Battery
Battery Year (Battery Year of Manufacture) 2022
