Stock No: 382235

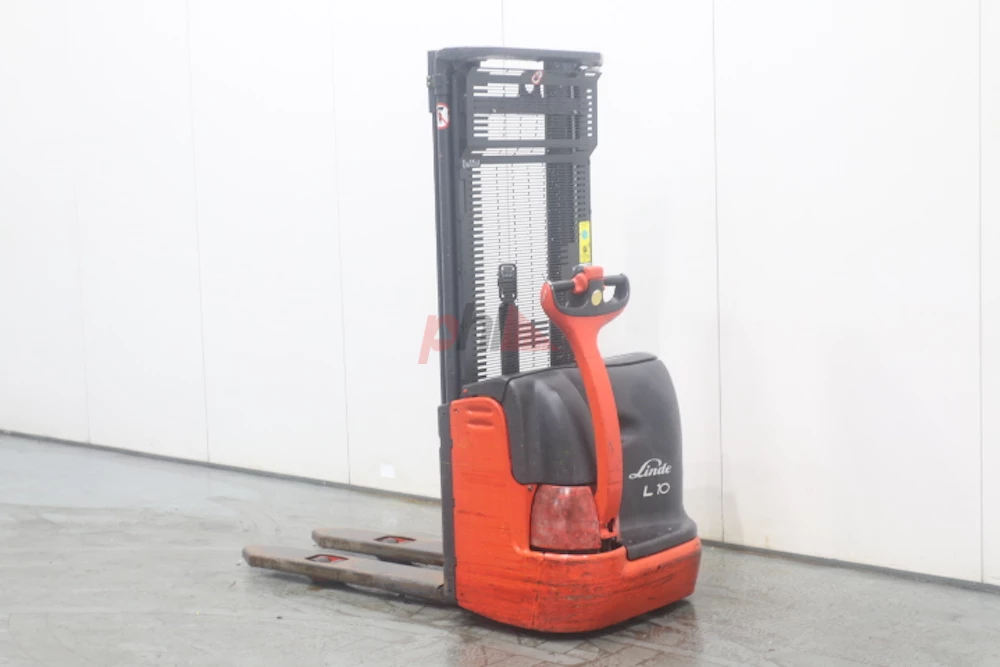

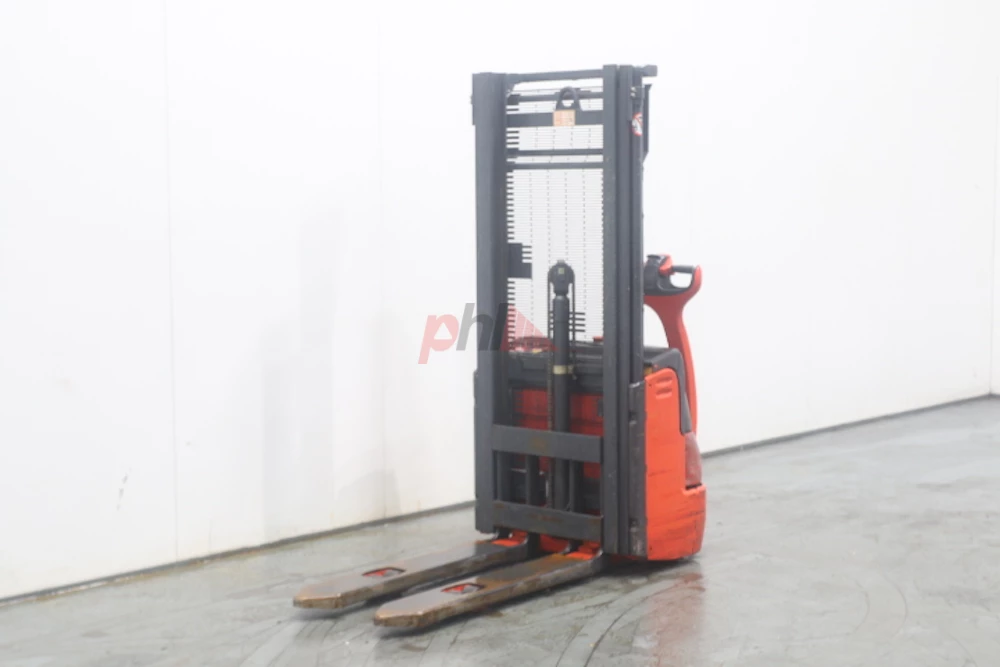

LINDE STACKER, WRAPOVER

£ Register for a trade account
Model L10 379
Year 2008
Euromast 2F301
Hours 1574

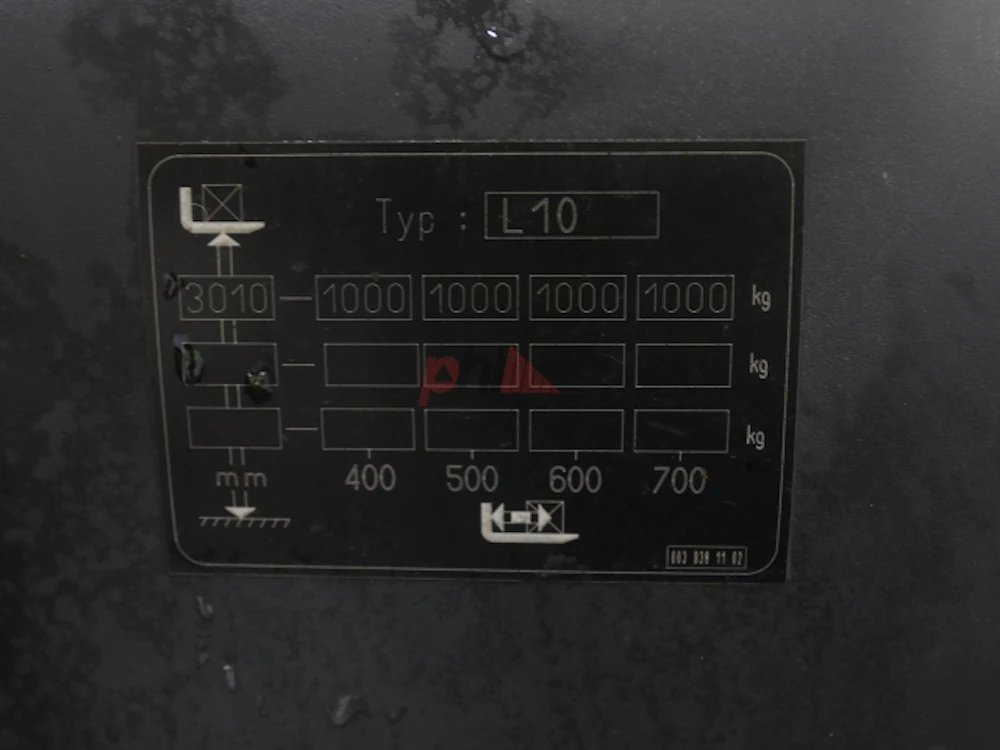

Capacity 1000 kg
Lift height 3020
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type STACKER, WRAPOVER
Make LINDE
Valves

Character.

Load Centre (c) 700 mm
Operating mode (Characteristic) Pedestrian
Wheelbase (y) 1170 mm

Weights

Service weight (Total weight ) 885 kg
Axle load without load (front/rear) 605/250 kg
Axle load with load (front/rear) 635/1220 kg

Wheels

Tyre size front 85X85 mm
Tyre size rear 230X90 mm
Track width front (b10) 495 mm
Track width rear (b11) 500 mm

Dimensions

Lift height (h3) 3020 mm
Overall length (l1) 1800 mm
Length to fork face (l2) 650 mm
Overall width (b1/b2) 800 mm
Forks length (l) 1150 mm
Fork spread (min/max) (b5) 560 mm
Width between legs (b4) 200 mm
Ground clearance, centre of wheelbase (m2) 30 mm
Turning radius (Wa) 1365 mm
Ast across 1000x1200 (Ast) 2235 mm
Ast along 800x1200 (Ast) 2205 mm
Collapsed height (h1) 1930 mm
Forks height (s) 86 mm
Forks width (e) 180 mm

Performance

Travel speed (With, w/o load) 6 km/h
Lifting speed (With, w/o load) .1/.13 m/s
Lowering speed (With, w/o load) .35/.2 m/s
Maximum climbing (With, w/o load) 10 %
Service brake electromagnetic

Drive

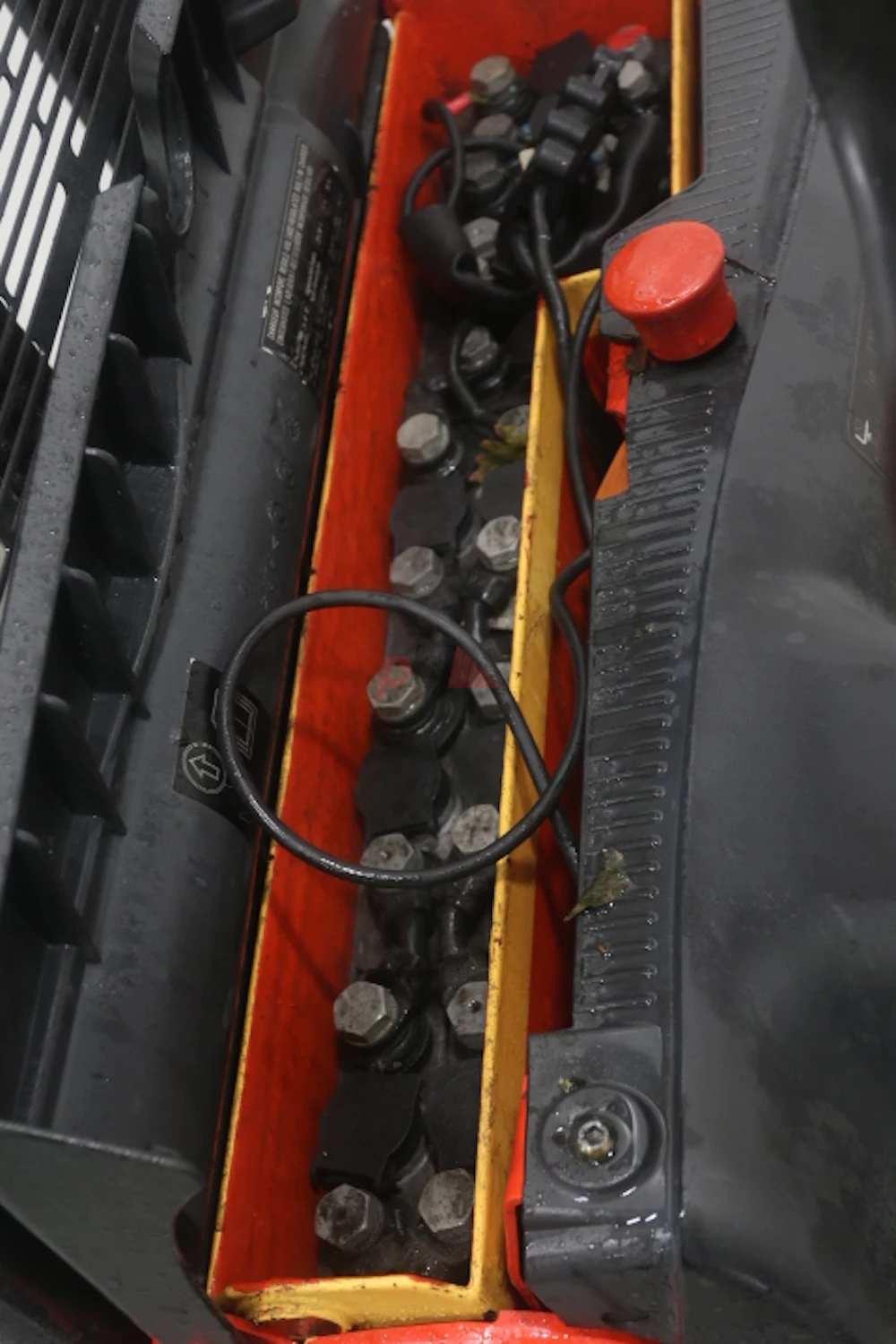

Battery weight 190 kg
Drive motor (60 min rating) 1.2 kW
Lift motor (15% rating) 1.4 kW
Battery class British Standard
Battery voltage/capacity 24/180 V/Ah

Attachment

Attachments (Has attachment) Forks.
Attachment type (Attachment type) Forks

Engine

Engine type (Engine type) electric

Extras

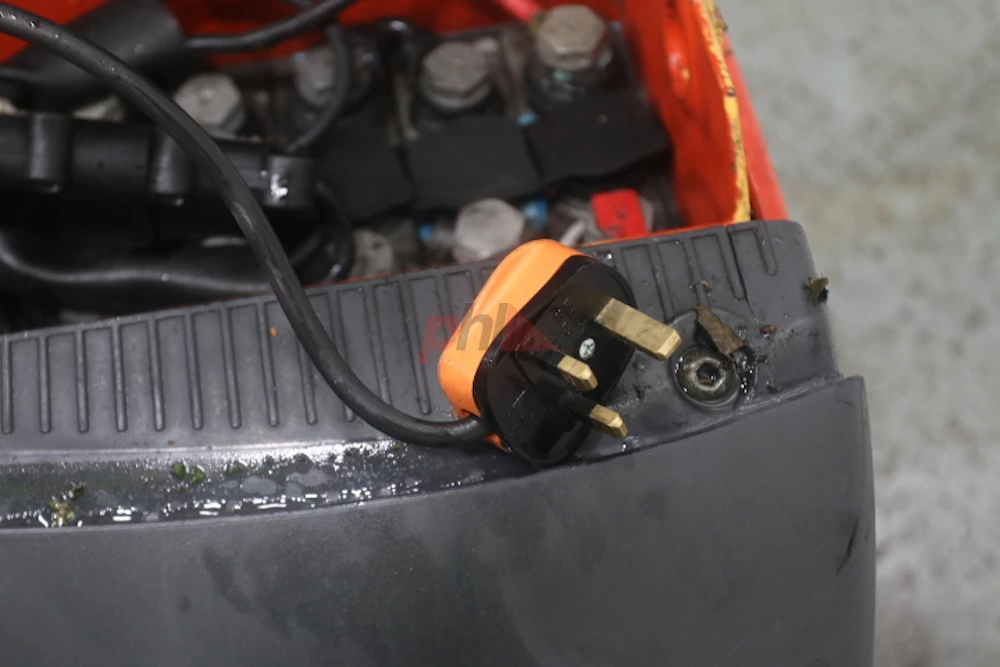

Extras Built in Charger.
