Stock No: 358082

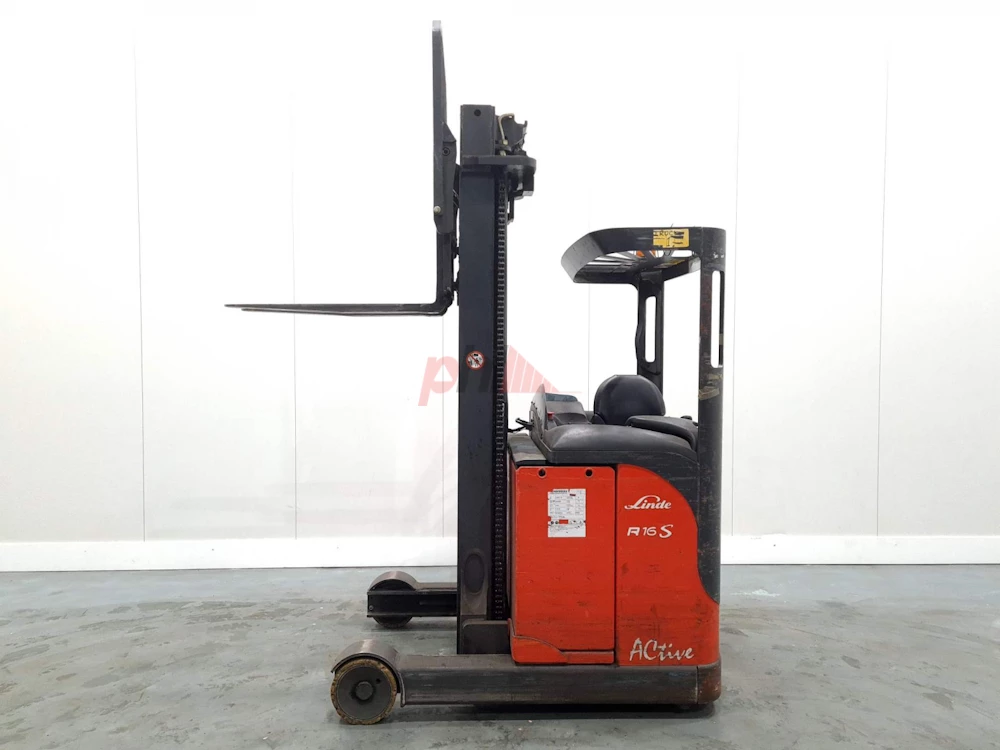

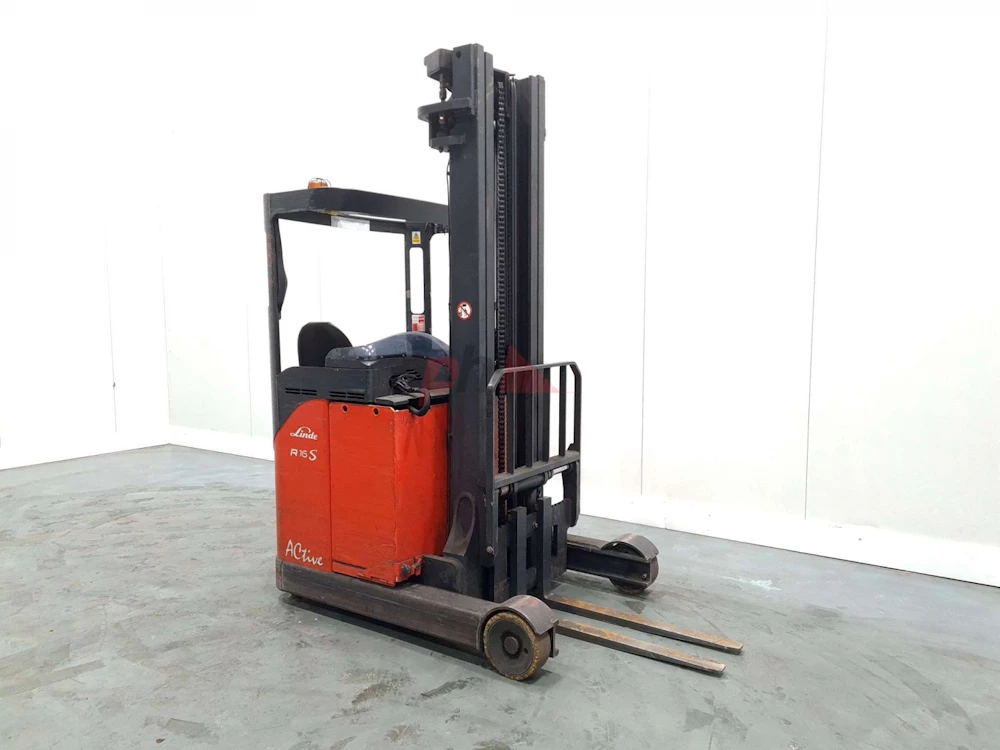

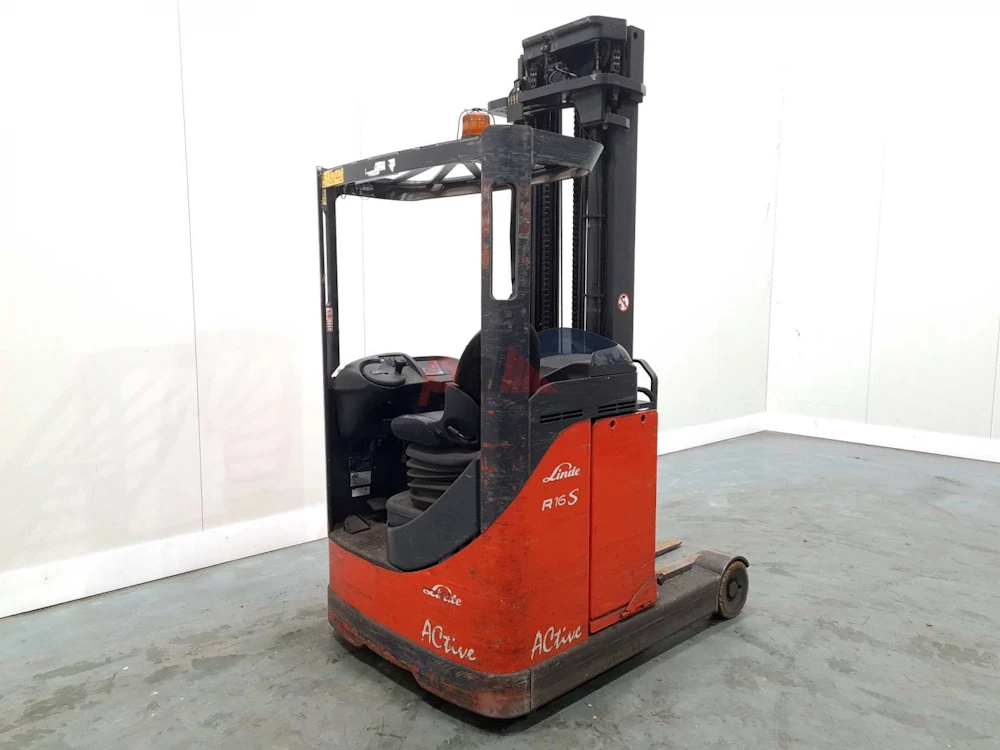

LINDE REACH

£ Register for a trade account
Model R16S 115
Year 2006
Euromast 3F645
Hours 4217
Capacity 1600 kg
Lift height 6450
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type REACH
Make LINDE
Valves

Character.

Load Centre (c) 400, 500,600 mm
Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 3485 kg

Wheels

Tyres type Polyurethane

Dimensions

Free lift (h2) 1870 mm
Lift height (h3) 6450 mm
Extended height (h4) 7495 mm
Height of overhead guard (cabin) (h6) 2110 mm
Height of reach legs (h8) 305 mm
Overall length (l1) 2500 mm
Length to fork face (l2) 1310 mm
Overall width (b1/b2) 1250 mm
Forks length (l) 1190 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 860 mm
Fork spread (min/max) (b5) 240 / 750 mm
Width between legs (b4) 920 mm
Reach travel (l4) 460 mm
Length of chasis (l7) 1720 mm
Collapsed height (h1) 2710 mm
Forks height (s) 45 mm
Forks width (e) 100 mm

Performance

Service brake hydraulic/electric

Drive

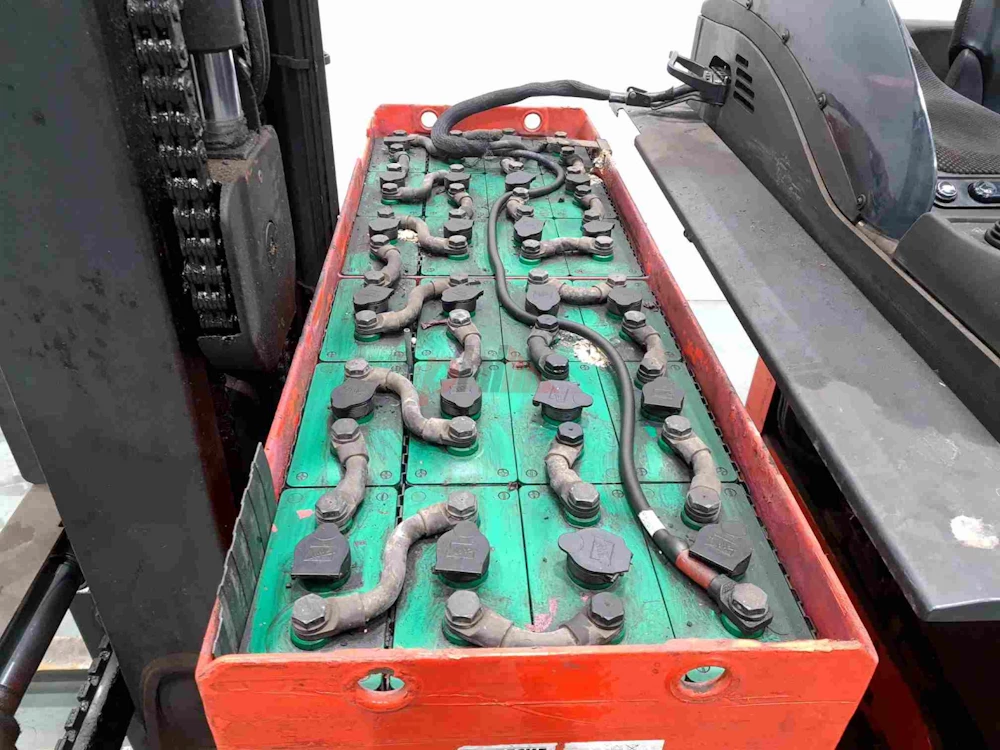

Battery weight 1175 kg
Drive motor (60 min rating) 6.5 kW
Battery class British Standard
Battery voltage/capacity 48V / 775Ah V/Ah
Battery (Acc. to DIN) HOPPECKE

Engine

Engine type (Engine type) electric

Extras

Extras SS.
Extras Hyds 3rd & 4th

Battery

Battery Serial No 00044568
Battery Year (Battery Year of Manufacture) 2006
