Further Vehicle Details
Specification:
Type REACH
Make LINDE
Valves
Character.
Load Centre (c) 400-600 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 4271 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 3150 mm
Lift height (h3) 10050 mm
Extended height (h4) 10870 mm
Height of overhead guard (cabin) (h6) 2090 mm
Height of reach legs (h8) 310 mm
Overall length (l1) 2450 mm
Length to fork face (l2) 1250 mm
Overall width (b1/b2) 1275 mm
Forks length (l) 1200 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 870 mm
Width between legs (b4) 910 mm
Reach travel (l4) 465 mm
Collapsed height (h1) 4160 mm
Forks height (s) 40 mm
Forks width (e) 100 mm
Performance
Service brake electromagnetic
Drive
Battery weight 986 kg
Drive motor (60 min rating) 6.5 kW
Battery class British Standard
Battery voltage/capacity 48V / 560Ah V/Ah
Battery (Acc. to DIN) GNB MARATHON CLASSIC
Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, Cold Store, Blue Spot.
Extras Hyds 3rd & 4th

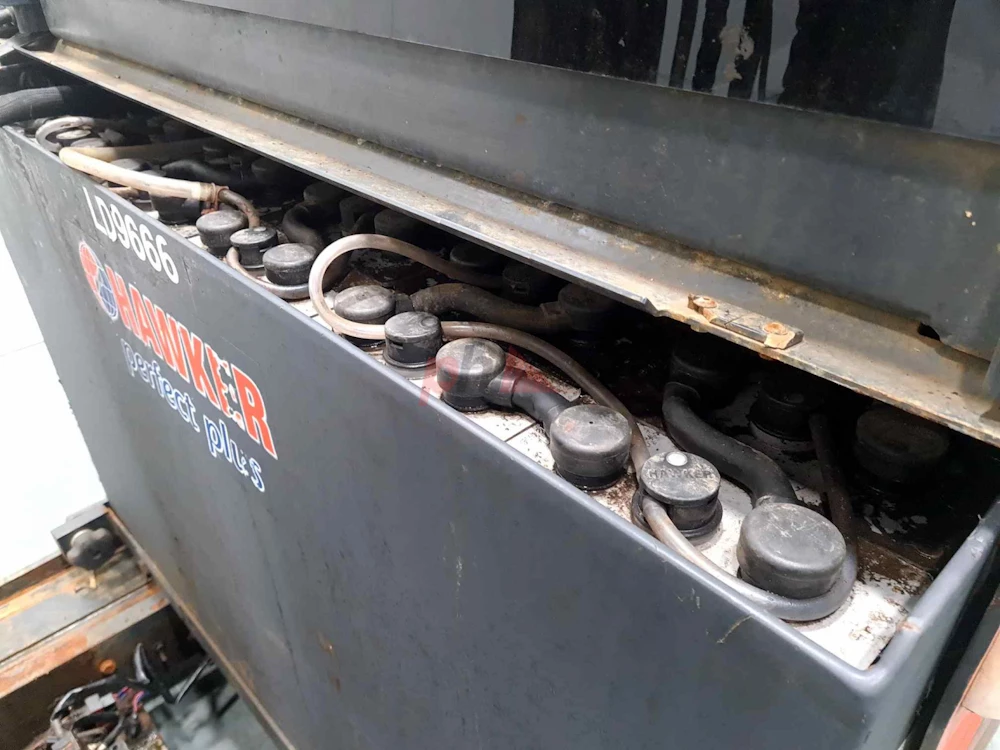

Battery
Battery Year (Battery Year of Manufacture) 2015
