Stock No: 356265 Enquire about this vehicle Enquire via

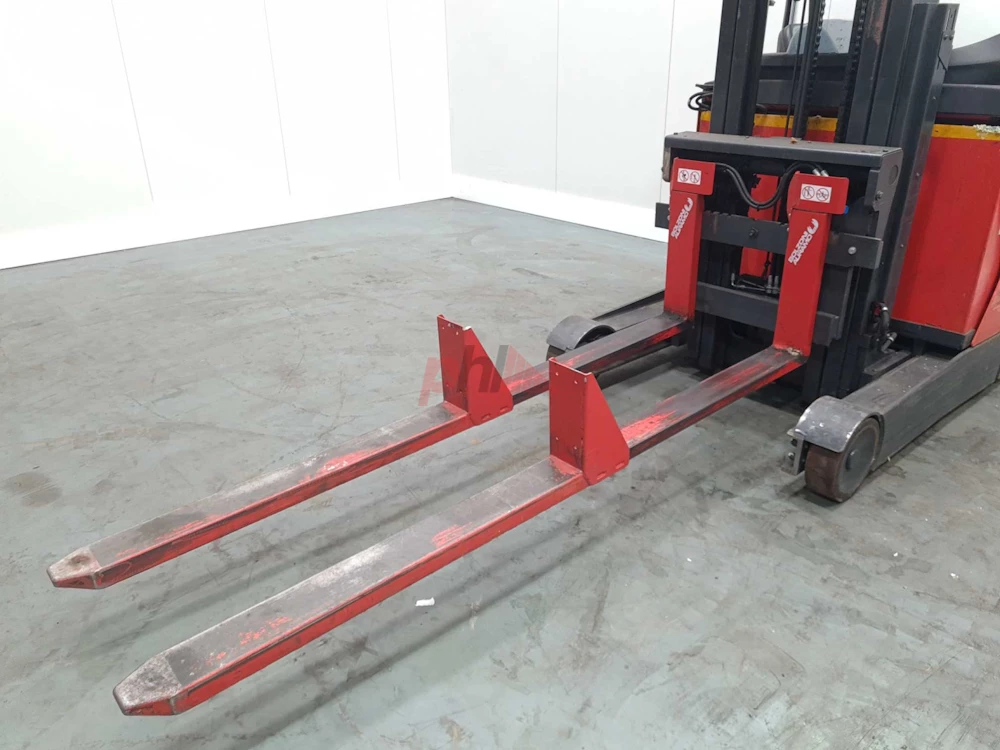

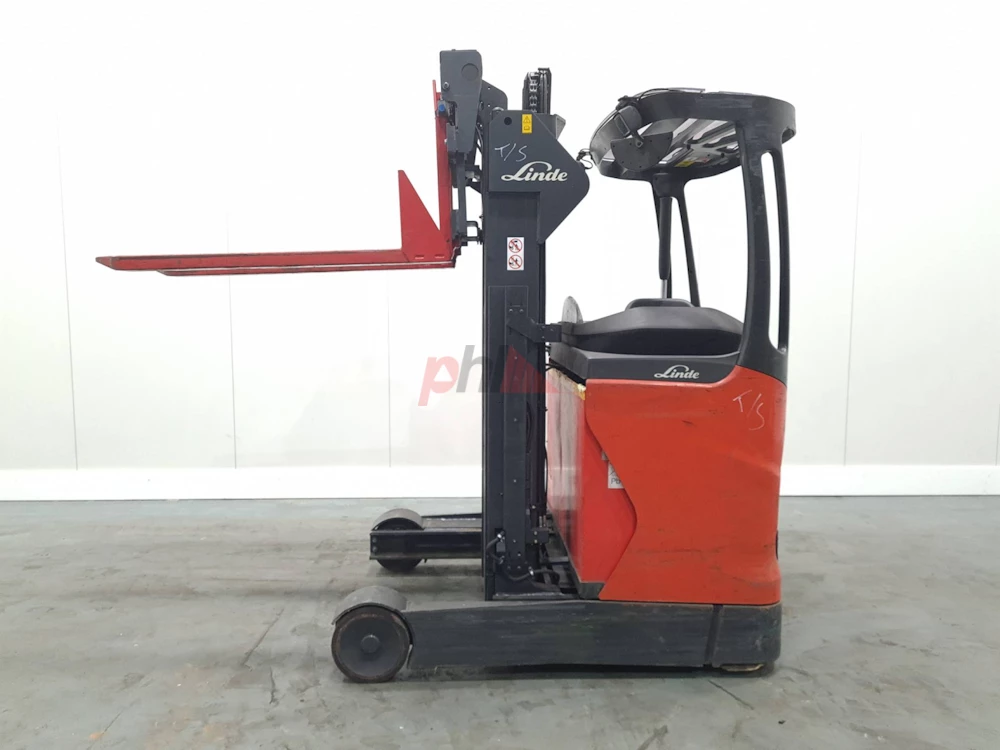

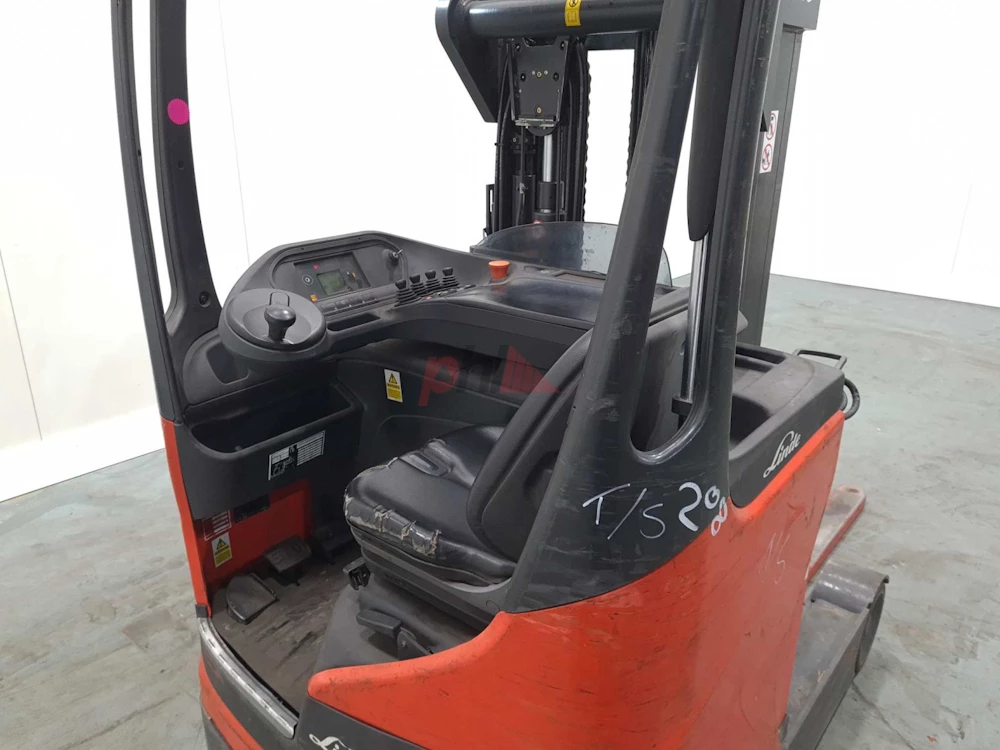

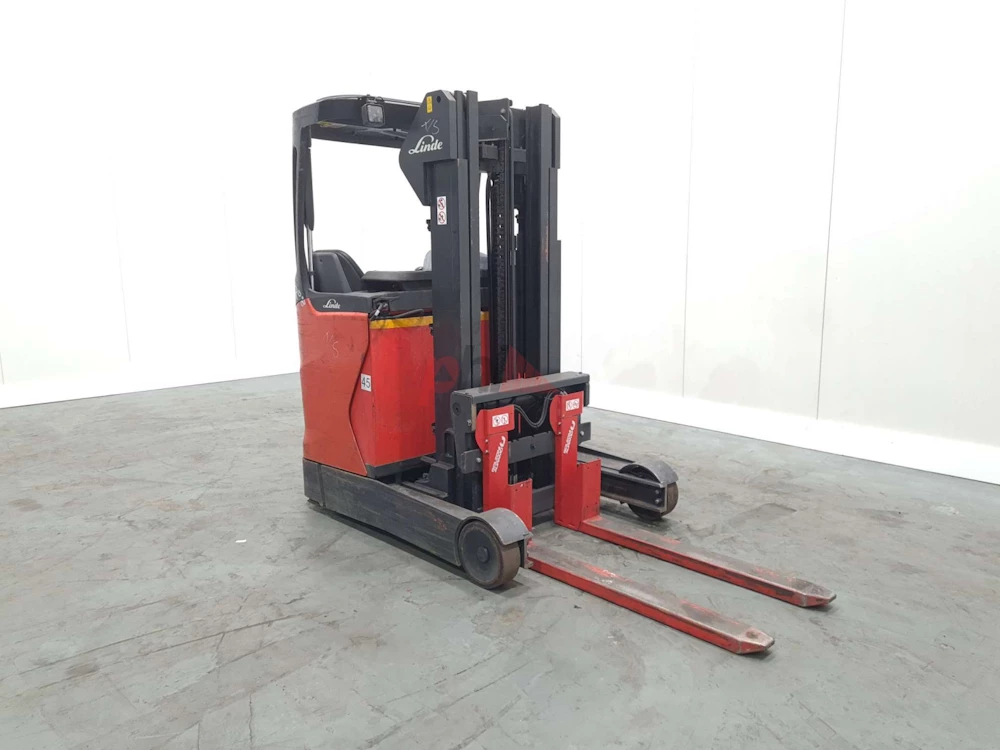

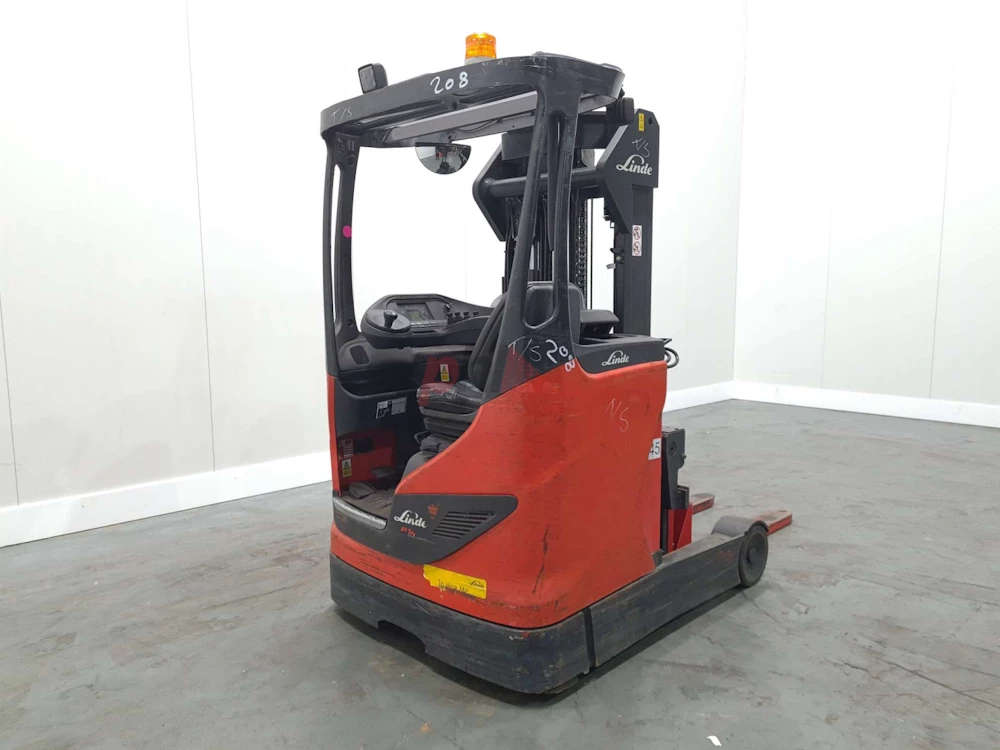

LINDE REACH
££ Login to see price Register for a trade account Model R14-01 1120
Year 2014
Euromast 3F456
Hours 2712
Capacity 1400 kg
Lift height 4560
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make LINDE
Valves
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 3211 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 1270 mm
Lift height (h3) 4560 mm
Extended height (h4) 5330 mm
Height of overhead guard (cabin) (h6) 2105 mm
Height of reach legs (h8) 300 mm
Overall length (l1) 2630 mm
Length to fork face (l2) 1290 mm
Overall width (b1/b2) 1250 mm
Forks length (l) 1340 / 2340 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 870 mm
Width between legs (b4) 925 mm
Reach travel (l4) 465 mm
Length of chasis (l7) 1760 mm
Collapsed height (h1) 2105 mm
Forks height (s) 60 mm
Forks width (e) 130 mm
Performance
Service brake electromagnetic
Drive
Battery weight 788 kg
Drive motor (60 min rating) 6.5 kW
Battery class British Standard
Battery voltage/capacity 48V / 465Ah V/Ah
Battery (Acc. to DIN) GNB MARATHON CLASSIC
Attachment
Attachments (Has attachment) Sideshift and DD Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, DD Forks, Top Screen, LED Lights.
Extras Hyds 3rd & 4th

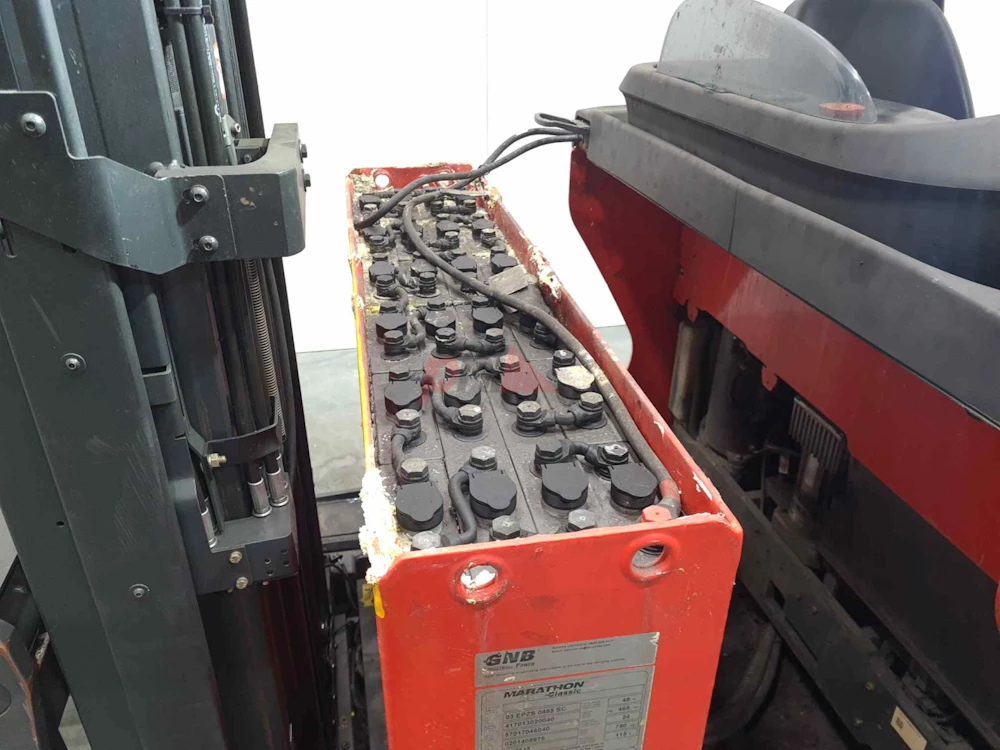

Battery
Battery Serial No 0201408976
Battery Year (Battery Year of Manufacture) 2015
