Further Vehicle Details
Specification:
Type 3 WHEEL
Make LINDE
Valves 3
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 3450 kg
Wheels
Tyres type Superelastic
Tyres front condition 50%
Tyres rear condition 50%
Dimensions
Lift height (h3) 3850 mm
Extended height (h4) 4900 mm
Height of overhead guard (cabin) (h6) 2100 mm
Overall length (l1) 3100 mm
Length to fork face (l2) 2000 mm
Overall width (b1/b2) 1100 mm
Forks length (l) 1100 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 1070 mm
Collapsed height (h1) 2100 mm
Forks height (s) 40 mm
Forks width (e) 80 mm
Performance
Service brake electromagnetic
Drive
Battery weight 1080 kg
Drive motor (60 min rating) 2*4.6 kW
Battery voltage/capacity 48V/700AH V/Ah
Battery (Acc. to DIN) MARATHON Classic
Attachment

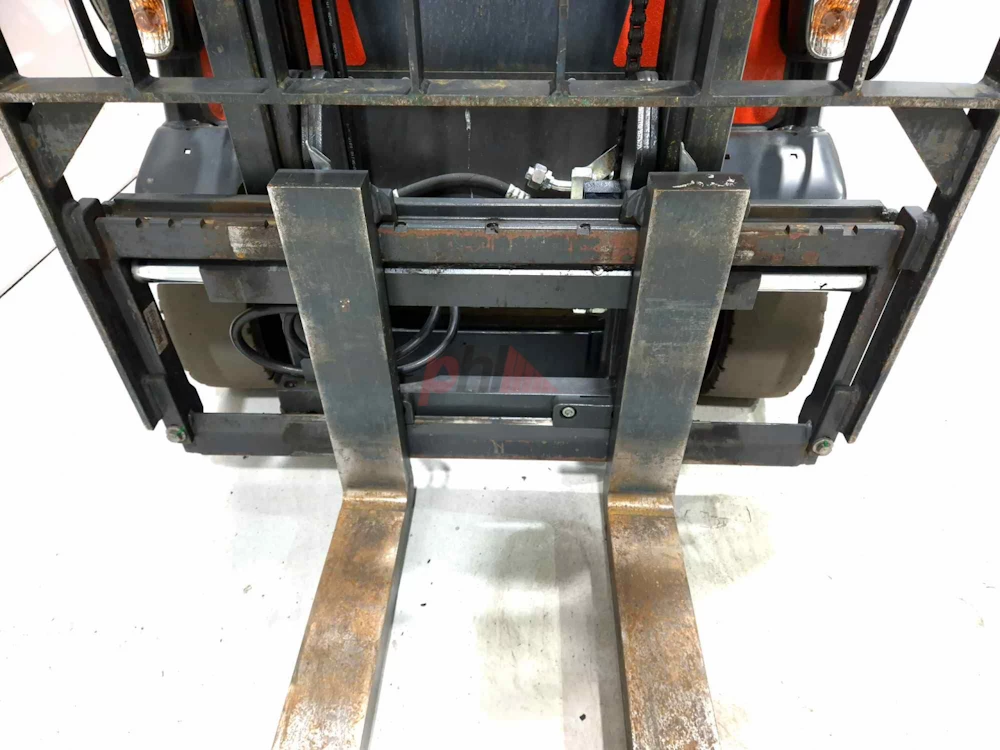

Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS,LIGHTS, BLUE SPOT.
Extras Hyds 3rd
To carriage 1

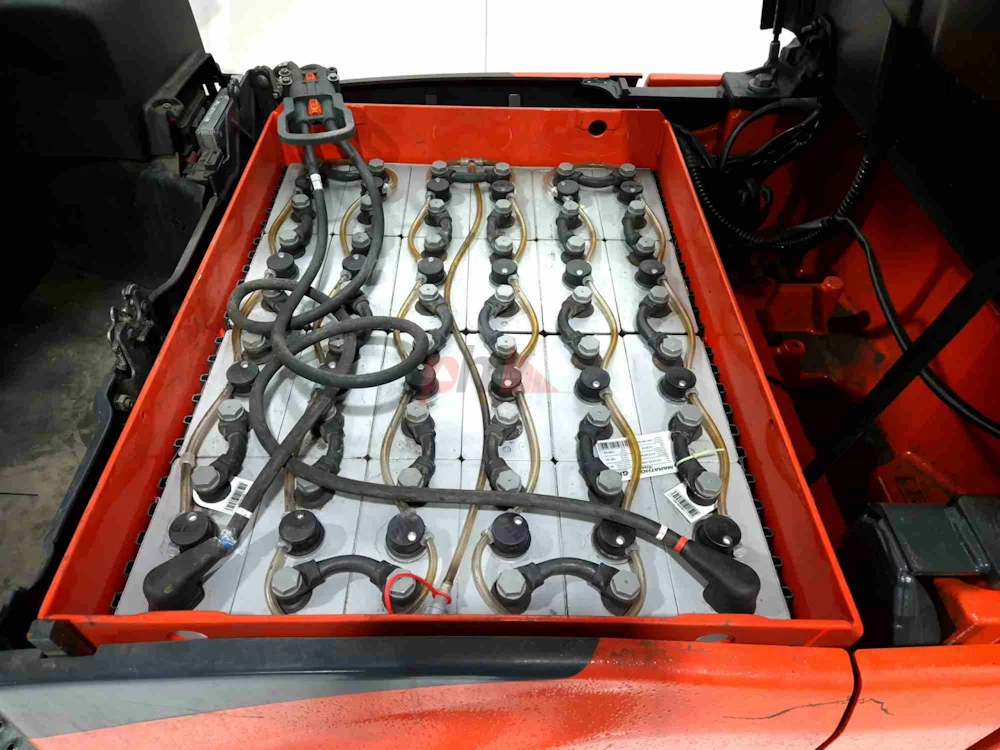

Battery
Battery Serial No 40040
Battery Year (Battery Year of Manufacture) 2008
