Stock No: 455141

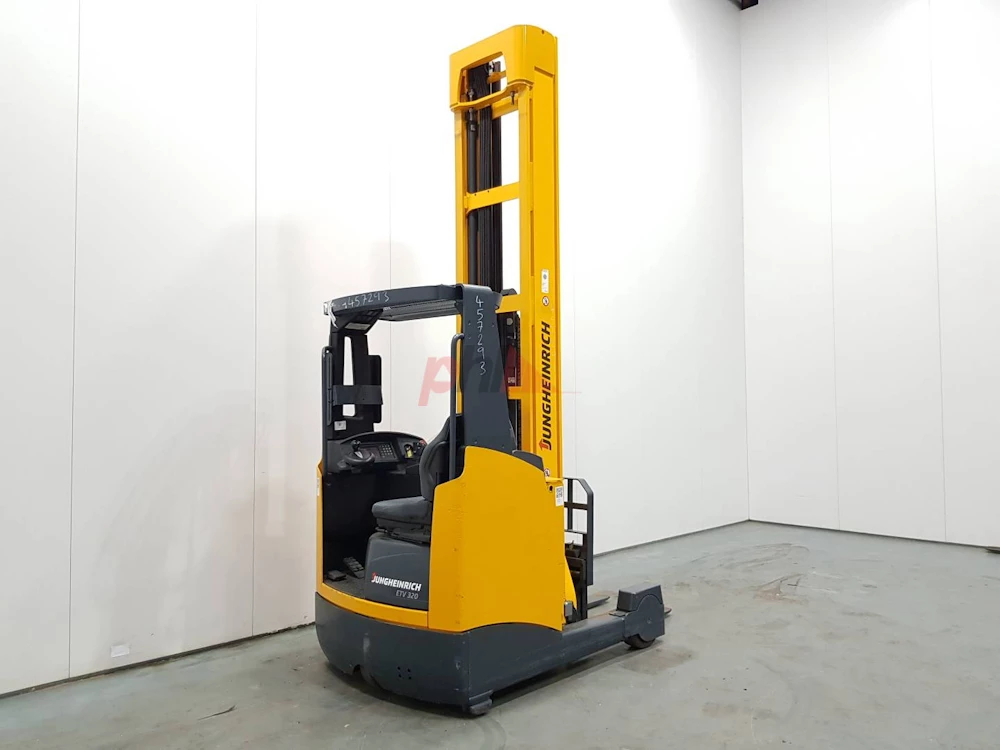

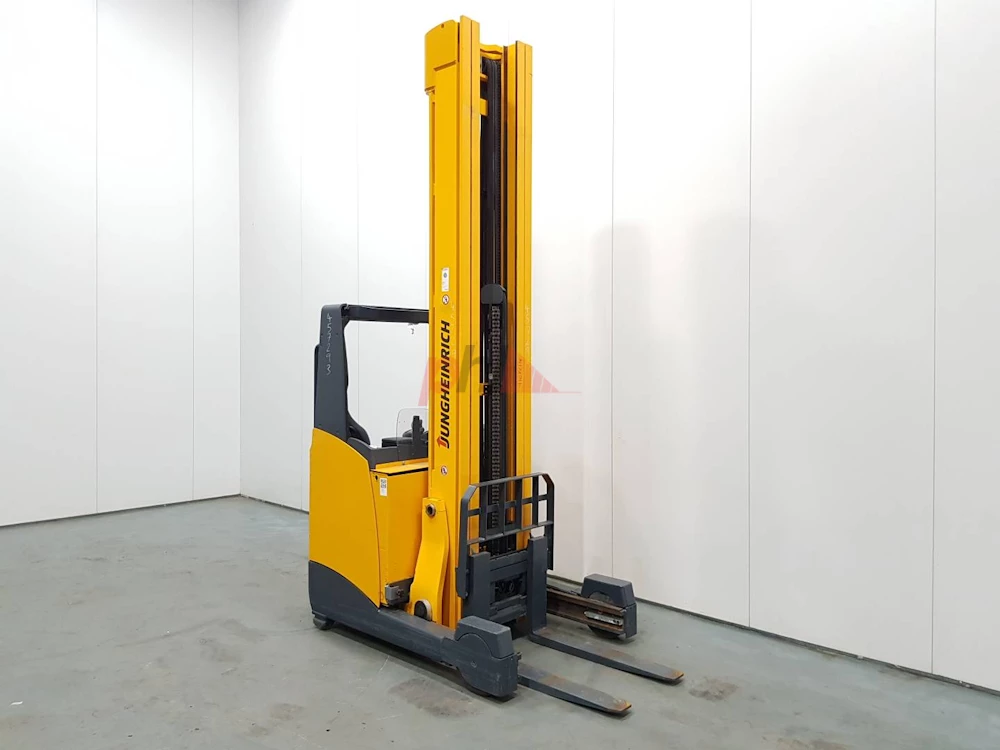

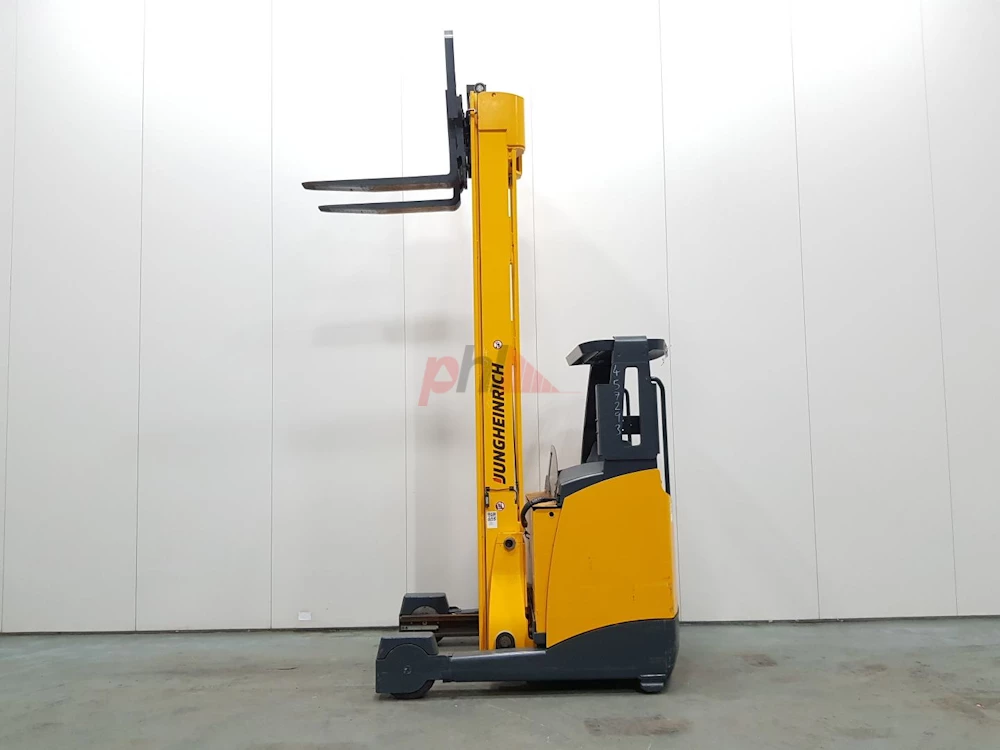

JUNGHEINRICH REACH

££ Register for a trade account
Model ETV320
Year 2013
Euromast 3F962
Hours 7037
Capacity 2000 kg
Lift height 9620
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type REACH
Make JUNGHEINRICH
Valves

Character.

Load Centre (c) 500/600/700 mm

Weights

Service weight (Total weight ) 4600 kg

Wheels

Tyres type Polyurethane

Dimensions

Free lift (h2) 3340 mm
Lift height (h3) 9620 mm
Extended height (h4) 10605 mm
Height of overhead guard (cabin) (h6) 2170 mm
Height of reach legs (h8) 370 mm
Overall length (l1) 2450 mm
Length to fork face (l2) 1450 mm
Overall width (b1/b2) 1295 mm
Forks length (l) 1000 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 800 mm
Width between legs (b4) 940 mm
Reach travel (l4) 495 mm
Length of chasis (l7) 1900 mm
Collapsed height (h1) 3850 mm
Forks height (s) 40 mm
Forks width (e) 100 mm

Performance

Service brake electromagnetic

Drive

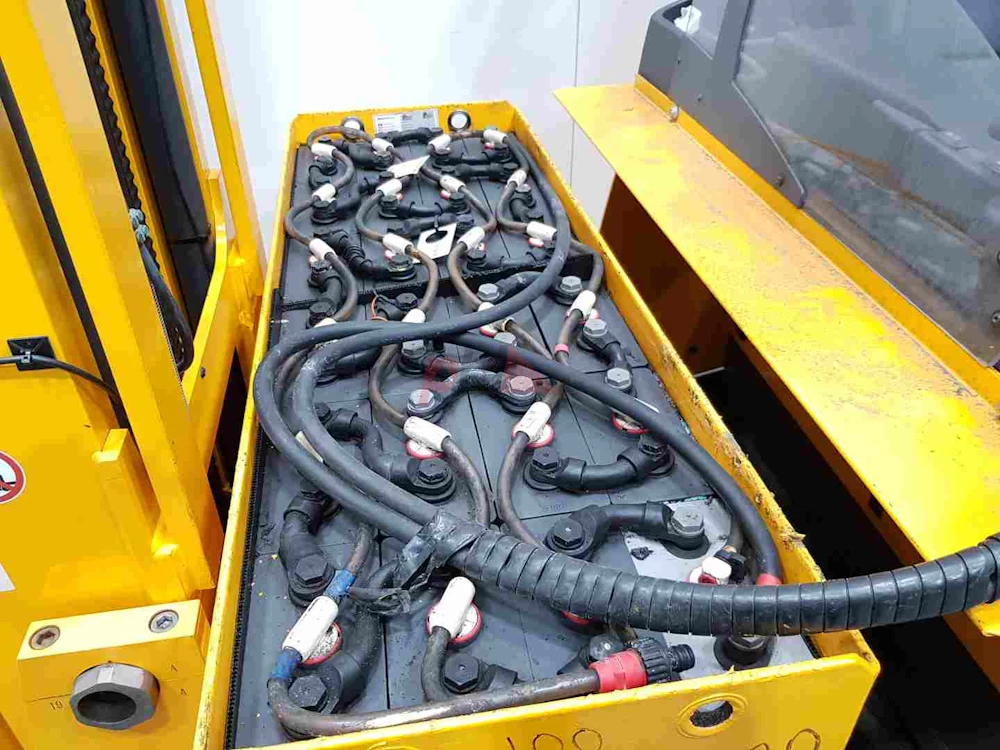

Battery weight 1180 kg
Drive motor (60 min rating) 6,9 kW
Battery class British Standard
Battery voltage/capacity 48V / 775Ah V/Ah
Battery (Acc. to DIN) MIDAC / JUNGHIENRICH

Attachment

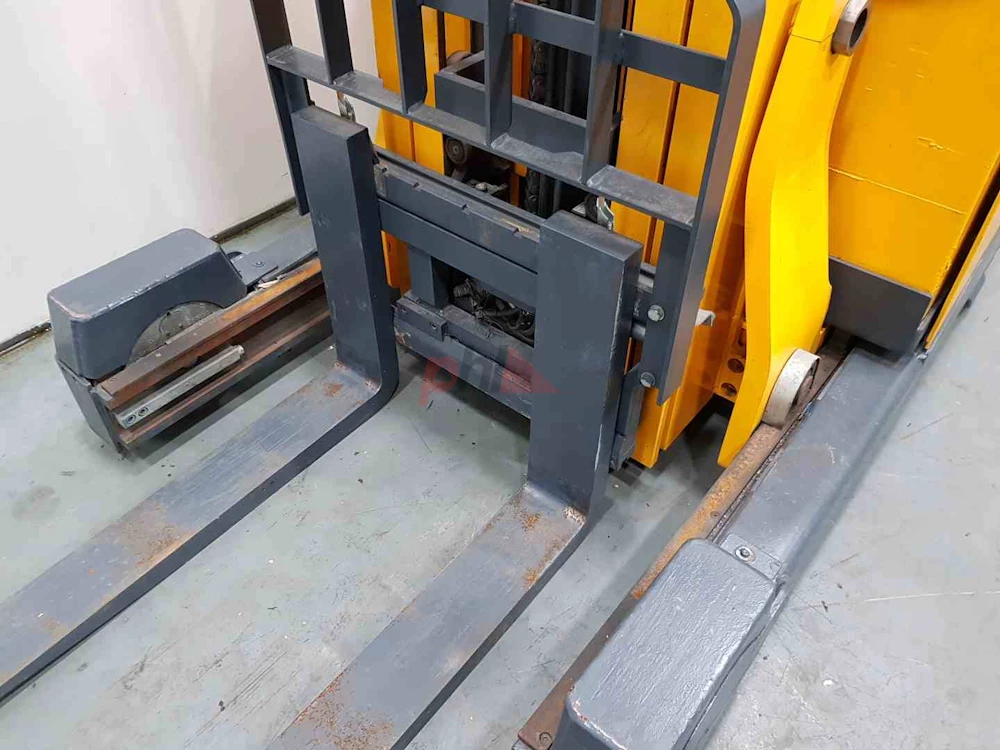

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

Engine

Engine type (Engine type) electric

Extras

Extras SS,360* STEERING.
Extras Hyds 3rd & 4th

Battery

Battery Year (Battery Year of Manufacture) 2013
