JUNGHEINRICH REACH
REACH • Stock No: 452676 ££
Login to see price Model ETV320
Year 2013
Euromast 3F962
Hours 1984
Capacity 2000 kg
Lift height 9620
Back to search results
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
Stock No: 454402 Enquire about this vehicle Enquire via
JUNGHEINRICH REACH
££ Login to see price Register for a trade account Model ETV320
Year 2013
Euromast 3F920
Hours 3899
Capacity 2000 kg
Lift height 9200
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make JUNGHEINRICH
Valves
Character.
Load Centre (c) 500/600/700 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 4516 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 3345 mm
Lift height (h3) 9200 mm
Extended height (h4) 10185 mm
Height of overhead guard (cabin) (h6) 2170 mm
Height of reach legs (h8) 370 mm
Overall length (l1) 2450 mm
Length to fork face (l2) 1450 mm
Overall width (b1/b2) 1295 mm
Forks length (l) 1000 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 800 mm
Width between legs (b4) 940 mm
Reach travel (l4) 495 mm
Length of chasis (l7) 1900 mm
Collapsed height (h1) 3830 mm
Forks height (s) 40 mm
Forks width (e) 100 mm
Performance
Service brake electromagnetic
Drive
Battery weight 1180 kg
Drive motor (60 min rating) 6,9 kW
Battery class British Standard
Battery voltage/capacity 48V / 775Ah V/Ah
Battery (Acc. to DIN) MIDAC / JUNGHIENRICH
Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS,360* STEERING.
Extras Hyds 3rd & 4th

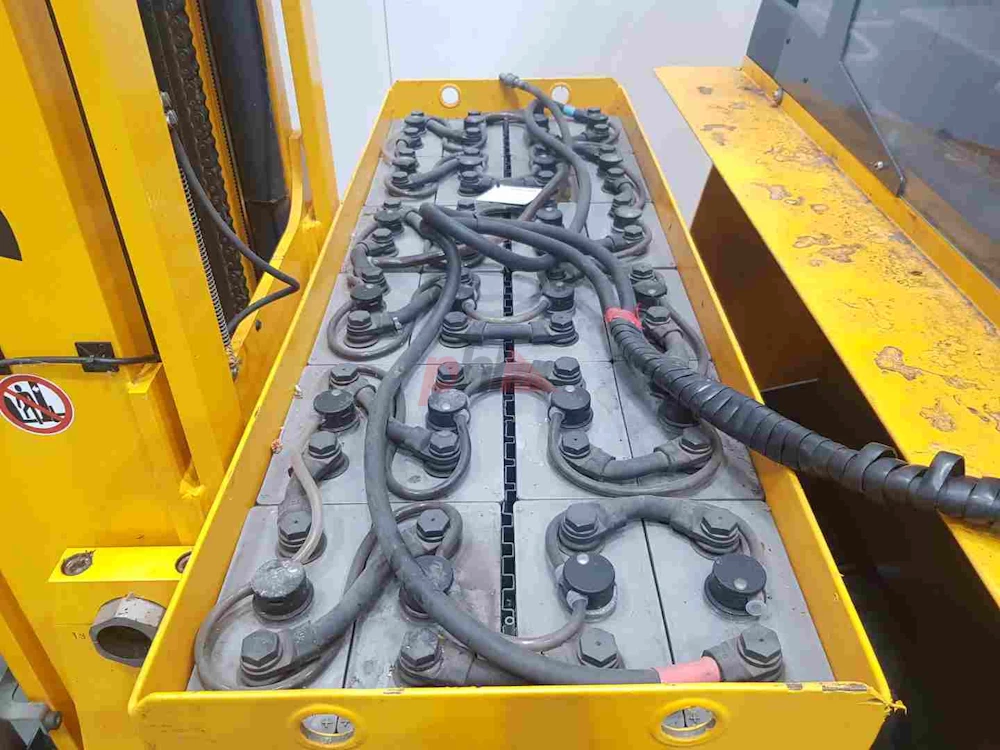

Battery
Battery Serial No 80938476
Battery Year (Battery Year of Manufacture) 2014
