Further Vehicle Details
Specification:

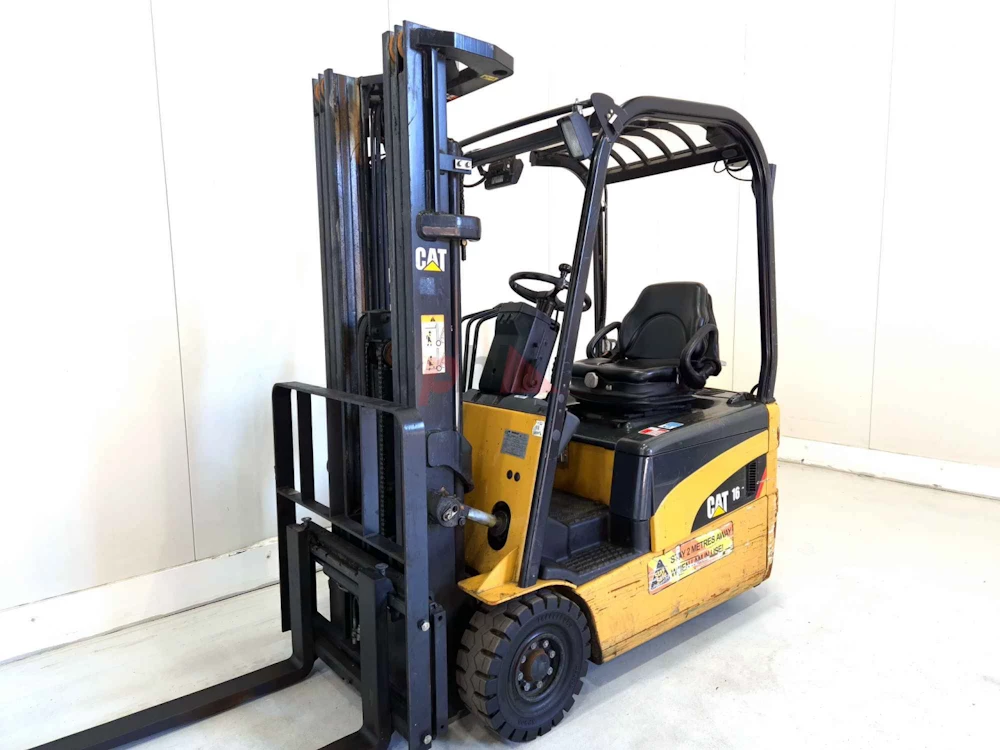

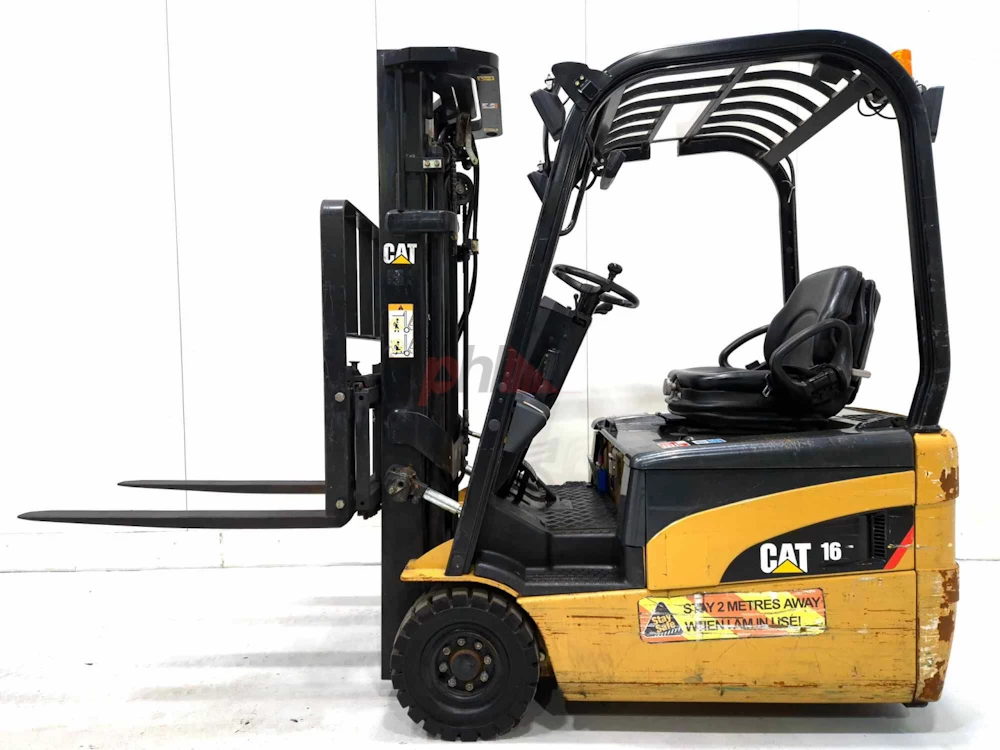

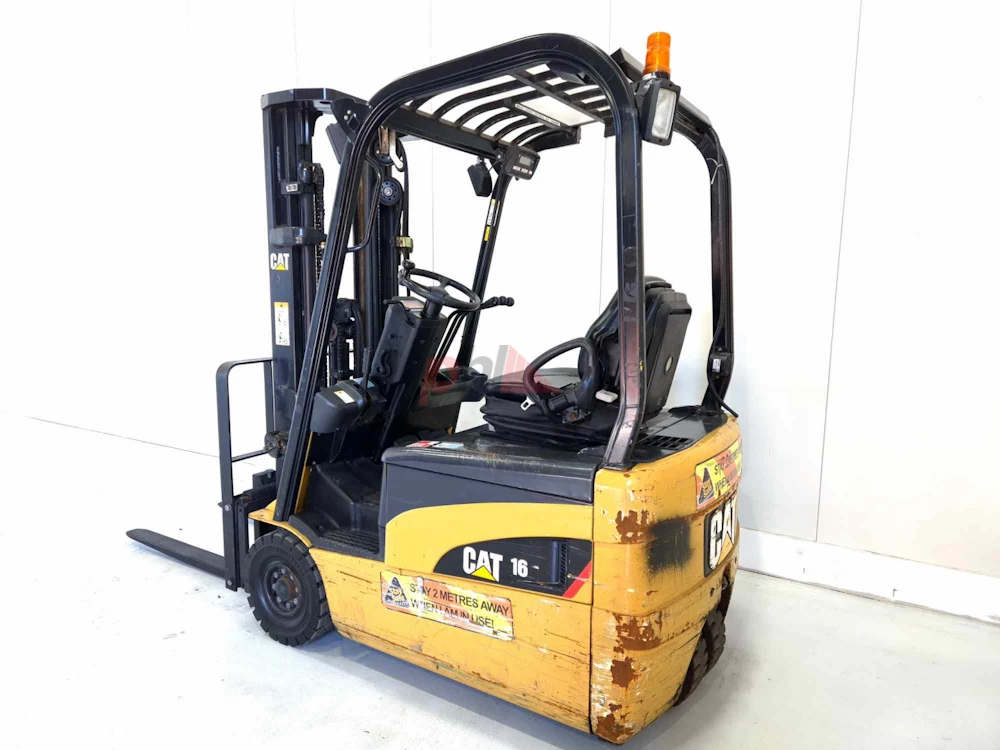

Type 3 WHEEL
Make CATERPILLAR
Valves 3
Character.
Load Centre (c) 500 mm

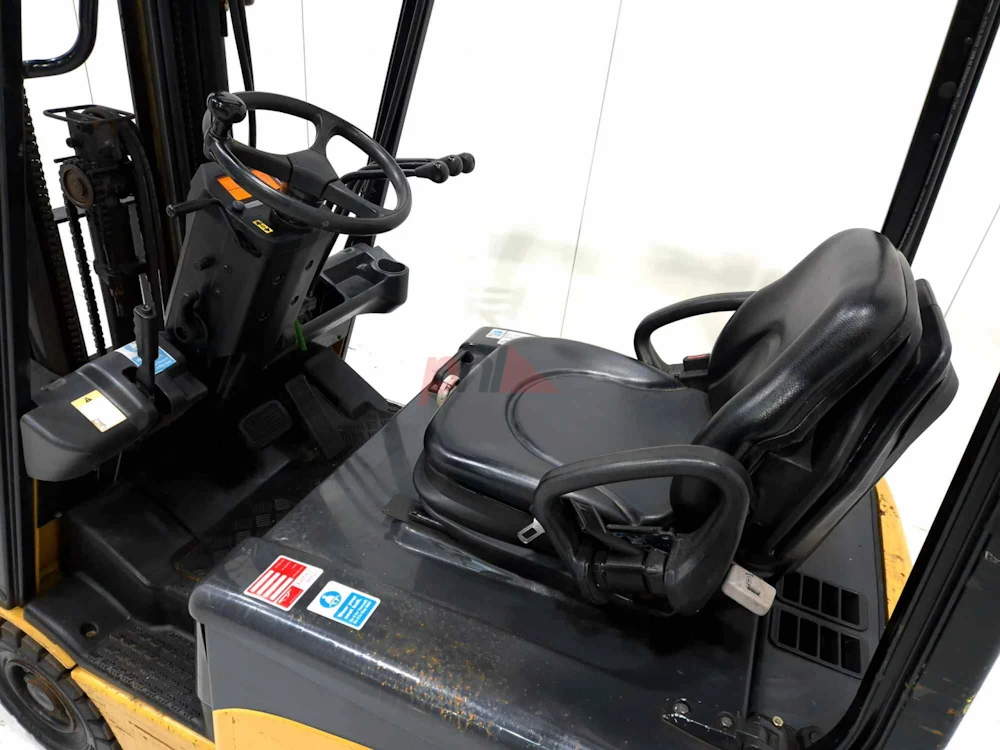

Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 3250 kg
Wheels
Tyres type Superelastic
Tyres front condition 50%
Tyres rear condition 50%
Dimensions
Lift height (h3) 4750 mm
Extended height (h4) 5750 mm
Height of overhead guard (cabin) (h6) 2040 mm
Overall length (l1) 2970 mm
Length to fork face (l2) 1970 mm
Overall width (b1/b2) 1070 mm
Forks length (l) 1000 mm

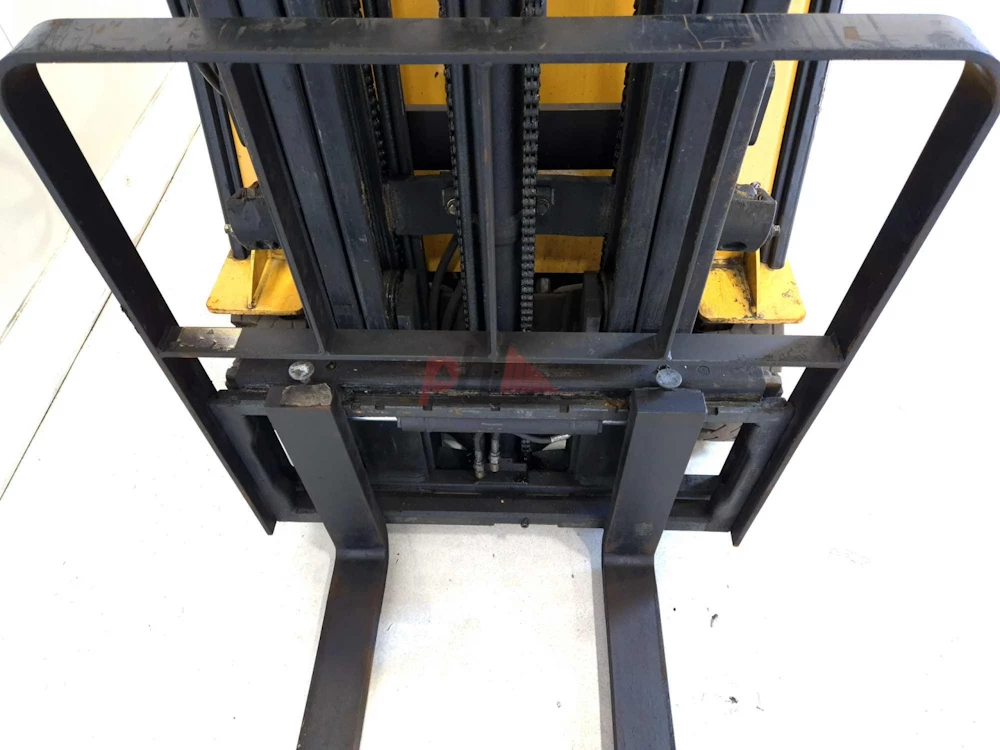

Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 920 mm
Collapsed height (h1) 2050 mm
Forks width (e) 100 mm
Performance
Service brake hydraulic/mechanical
Drive

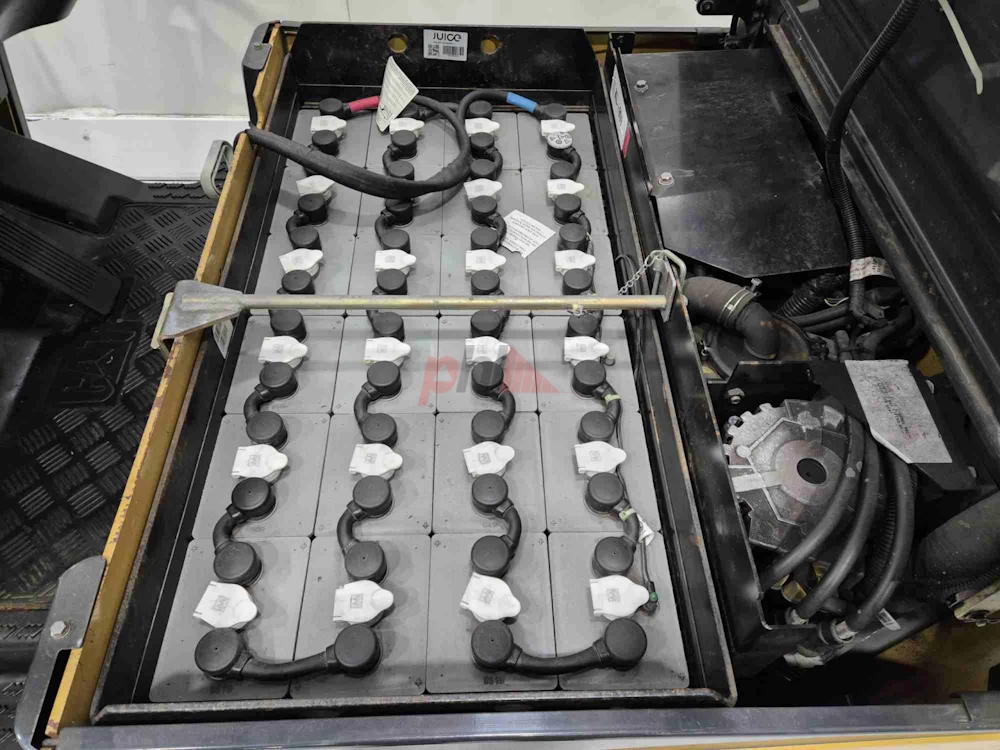

Battery weight 890 kg
Battery voltage/capacity 48v/525Ah V/Ah
Attachment
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, Lights.
Extras Hyds 3rd
Battery
Battery Serial No 0442
Battery Year (Battery Year of Manufacture) 2007
