Stock No: 488710 Enquire about this vehicle Enquire via

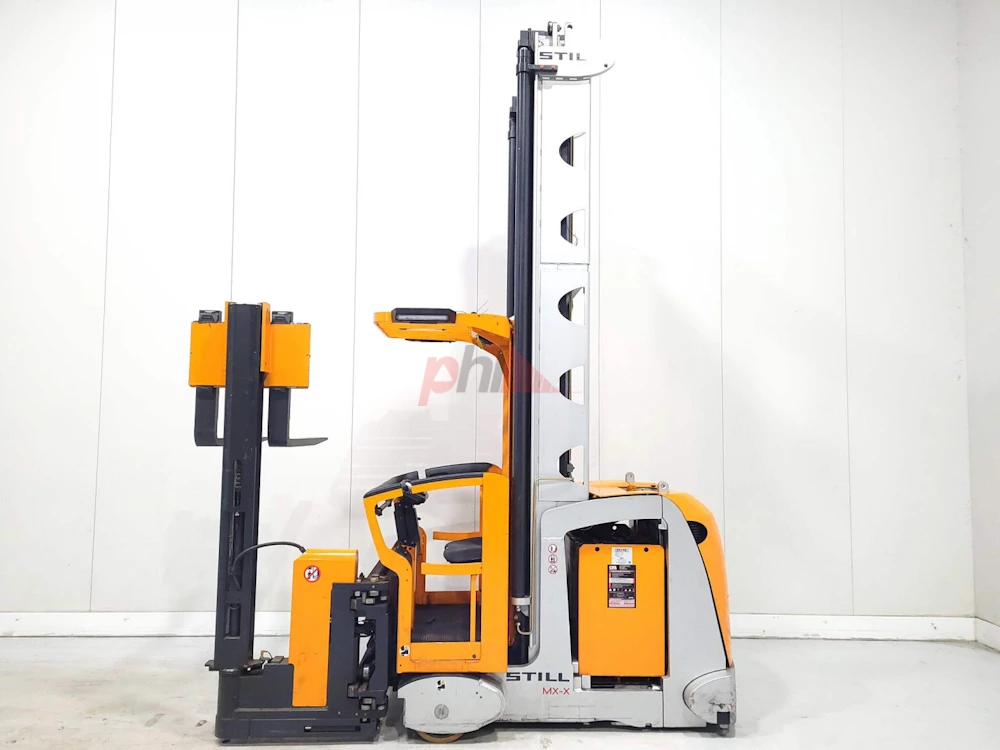

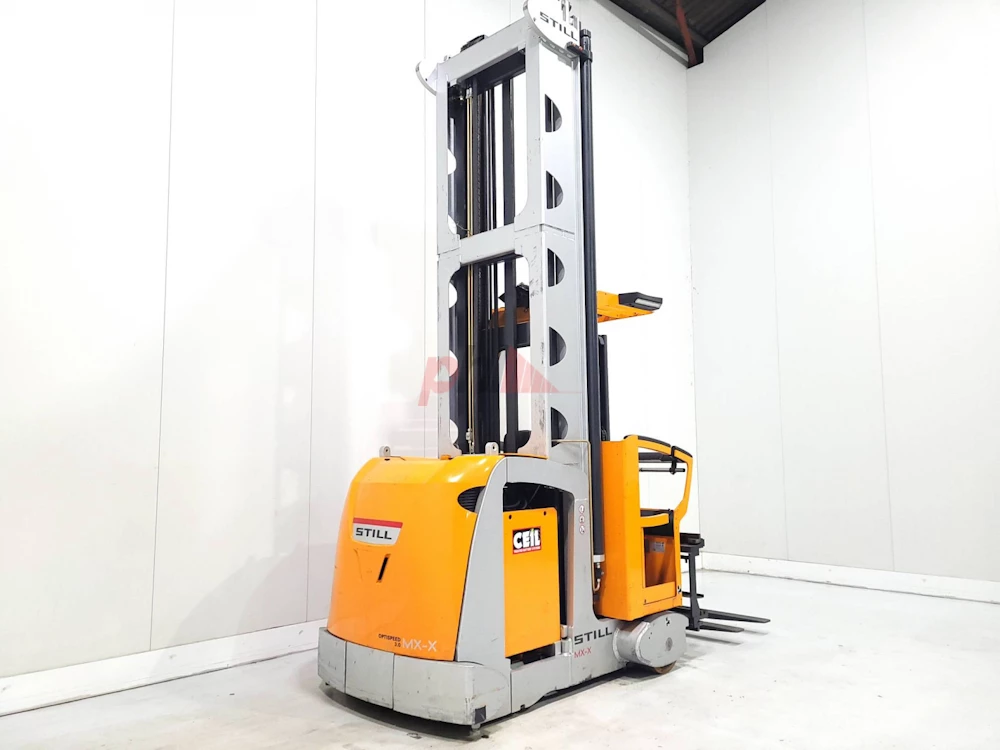

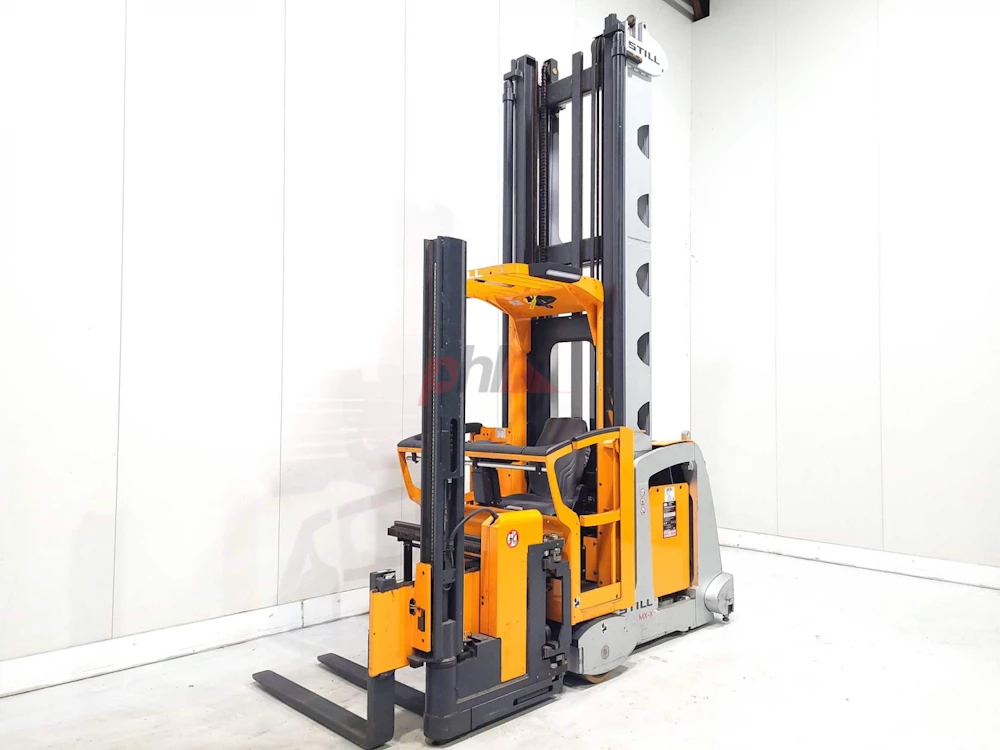

STILL TURRET MAN UP
£££ Login to see price Register for a trade account Model MX-X TE
Year 2012
Euromast 2F793
Hours 7088
Capacity 1150 kg
Lift height 7935
Download
Share
Further Vehicle Details
Specification:
Type TURRET MAN UP
Make STILL
Valves
Character.
Load Centre (c) 500 mm

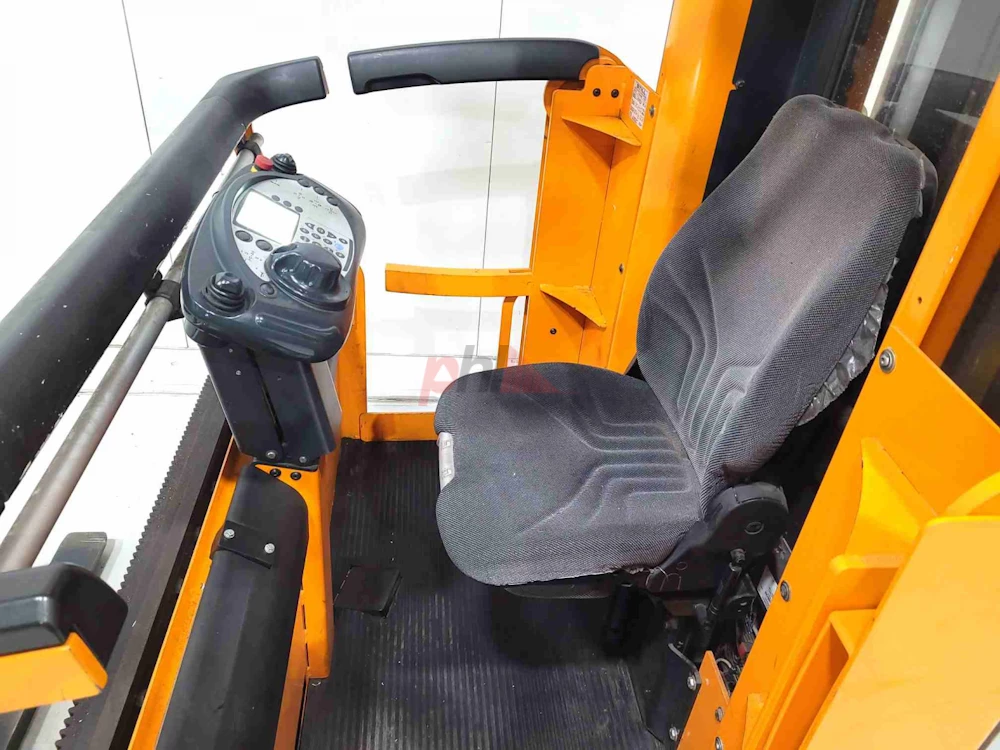

Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 5843 kg
Wheels
Tyres type Polyurethane
Tyre size front Good mm
Tyre size rear Good mm
Dimensions
Lift height (h3) 7935 mm
Extended height (h4) 10000 mm
Height of overhead guard (cabin) (h6) 2560 mm
Overall length (l1) 3400 mm
Overall width (b1/b2) 1500 mm
Forks length (l) 1200 mm
Fork carriage width (b3) 700 mm
Ground clearance, mast (m1) 30 mm
Ground clearance, centre of wheelbase (m2) 45 mm
Length of chasis (l7) 2630 mm
Collapsed height (h1) 4450 mm
Seat/stand height (h7) 460 mm
Forks height (s) 50 mm
Forks width (e) 120 mm
Fork height, lowered (h13) 50 mm
Auxiliary lift (h9) 1850 mm
Rotator width (F) 295 mm
Traverse frame width (B) 1495 mm
Rotator length (A) 665 mm
Overall width of chassis (b1) 1550 mm
Overall width of track wheel axle (b2) 1555 mm
Load length (l6) 985 mm
Performance
Service brake electromagnetic
Drive

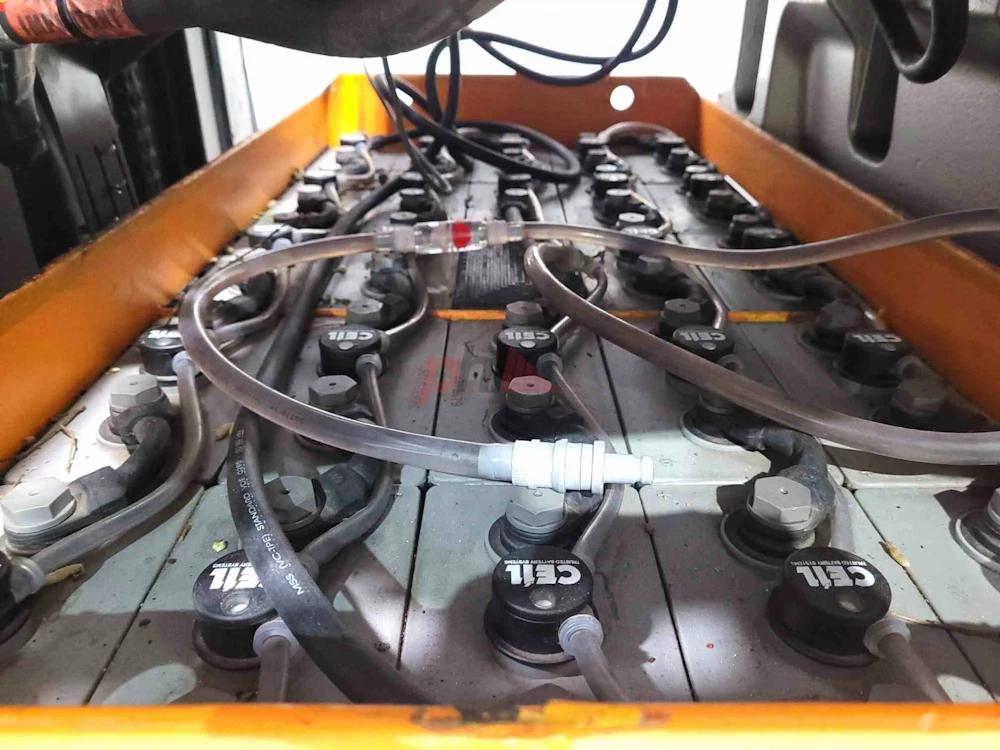

Battery weight 1174 kg
Drive motor (60 min rating) 6.5 kW
Battery voltage/capacity 48/700 V/Ah
Other
Noise level 0 dB
Engine
Engine type (Engine type) electric
