Further Vehicle Details
Specification:
Type GAS
Make MITSUBISHI
Valves
Character.
Load Centre (c) 500/600 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 6100 kg
Wheels
Tyres type Superelastic
Dimensions
Lift height (h3) 4000 mm
Extended height (h4) 5050 mm
Height of overhead guard (cabin) (h6) 2300 mm
Overall length (l1) 4300 mm
Length to fork face (l2) 3200 mm
Overall width (b1/b2) 1400 mm
Forks length (l) 1100 mm
Fork carriage (class) DIN 15173 / 3A
Length of chasis (l7) 2800 mm
Collapsed height (h1) 2680 mm
Forks height (s) 45 mm
Forks width (e) 80 mm
Performance
Service brake hydraulic/mechanical
Drive
Drive motor (60 min rating) 68.5 kW
Battery voltage/capacity 12V V/Ah
Other
Noise level 108 dB

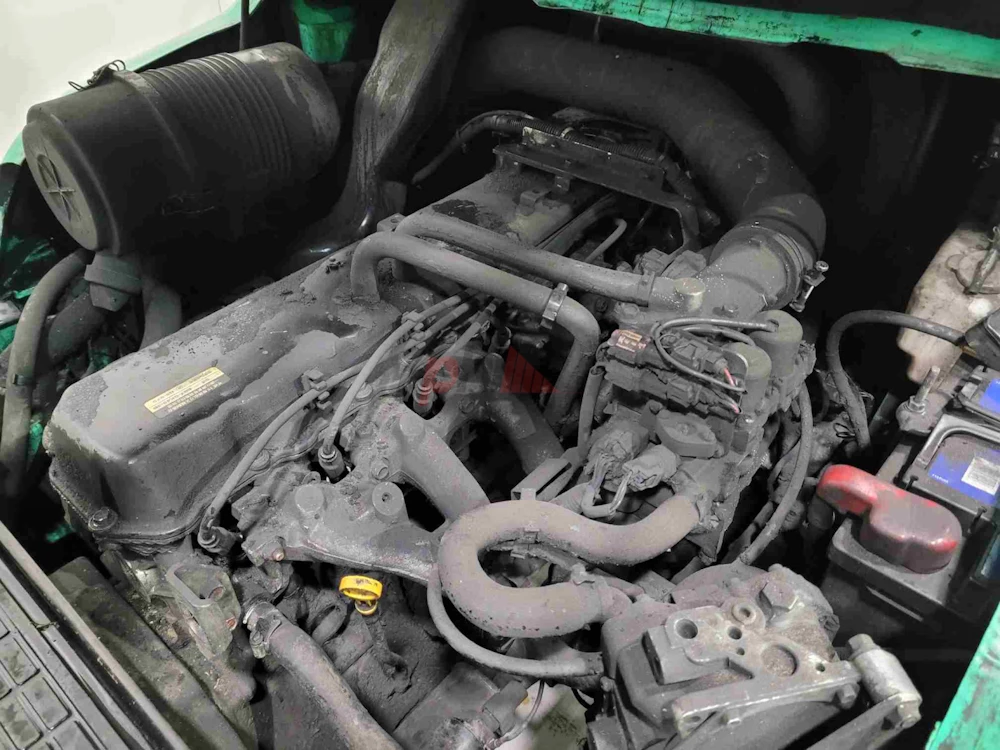

Engine
Engine type (Engine type) gas
Extras

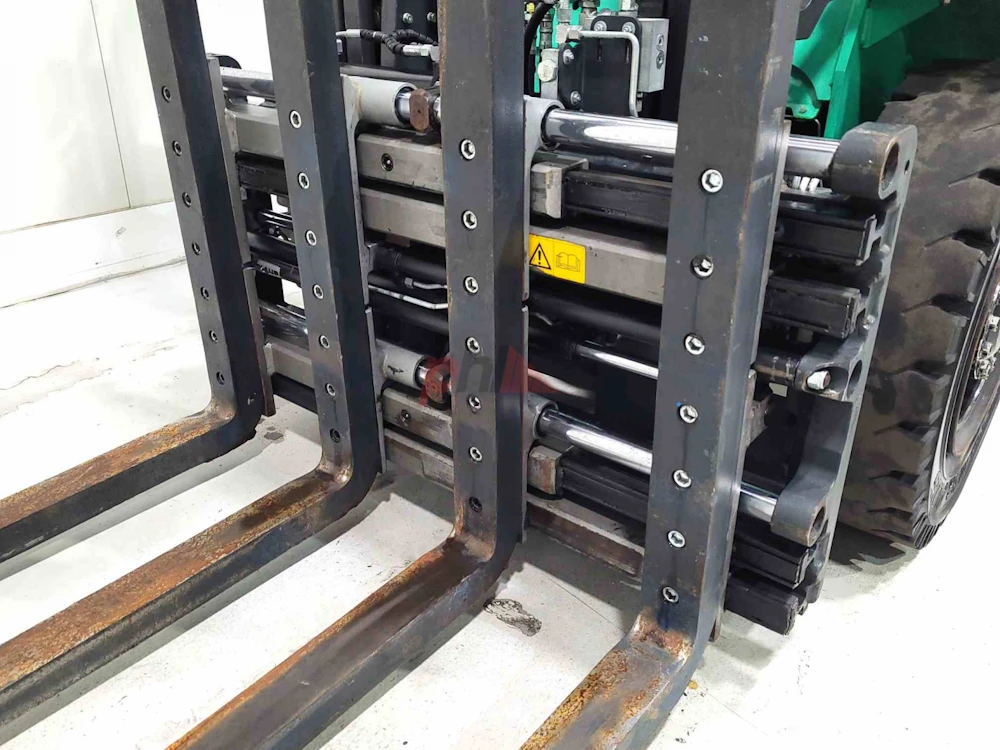

Extras SS, Double Pallet Handler T429C, rear and front blue spot
