Stock No: 578752

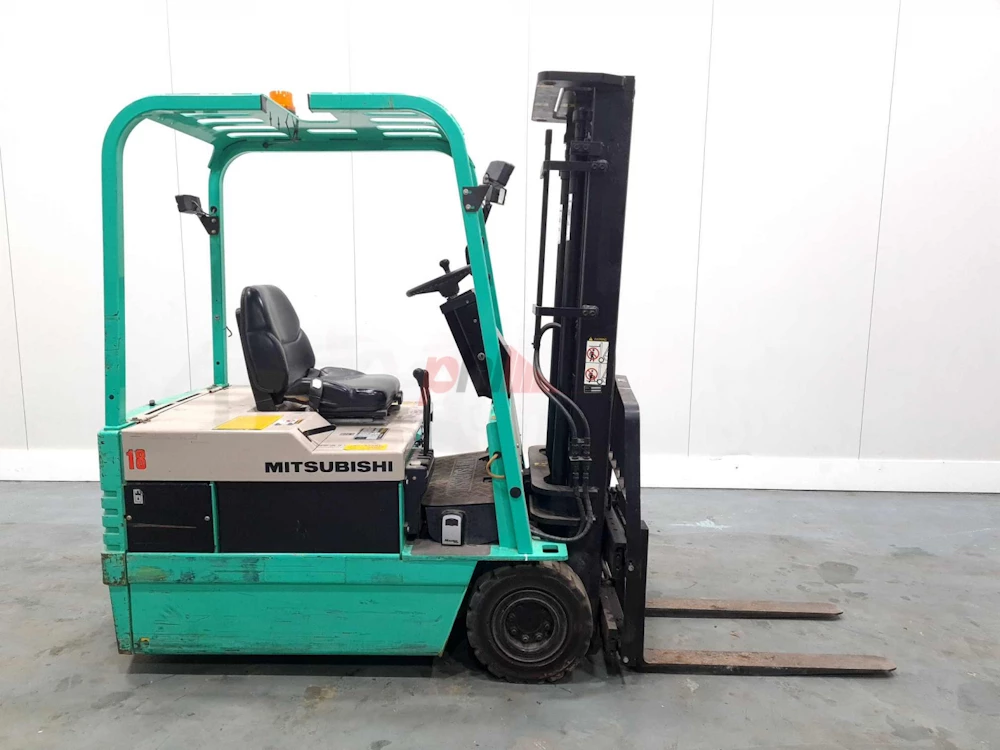

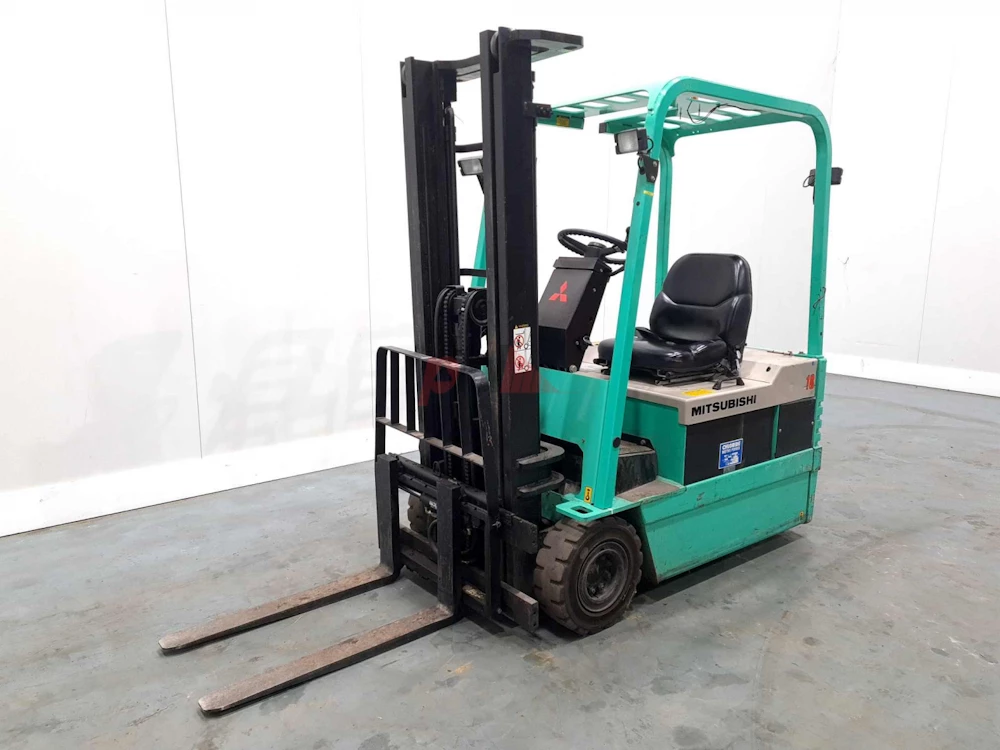

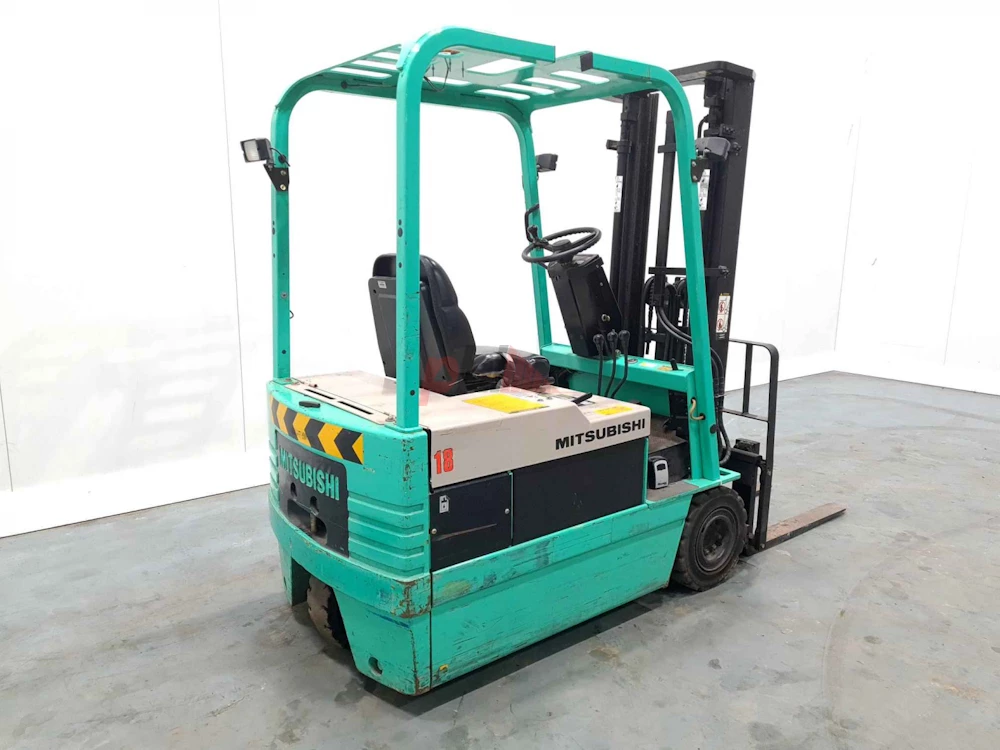

MITSUBISHI 3 WHEEL

£ Register for a trade account
Model FBS18
Year 1998
Euromast 2F330
Hours 994
Capacity 1750 kg
Lift height 3300
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type 3 WHEEL
Make MITSUBISHI
Valves 3

Character.

Load Centre (c) 500 mm
Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 3525 kg

Wheels

Tyres type Superelastic
Tyres front condition 50%
Tyres rear condition 50%

Dimensions

Lift height (h3) 3300 mm
Extended height (h4) 4250 mm
Height of overhead guard (cabin) (h6) 1990 mm
Overall length (l1) 2860 mm
Length to fork face (l2) 1960 mm
Overall width (b1/b2) 1060 mm
Forks length (l) 900 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 1000 mm
Length of chasis (l7) 1810 mm
Collapsed height (h1) 2090 mm
Forks width (e) 100 mm

Performance

Service brake hydraulic/mechanical

Drive

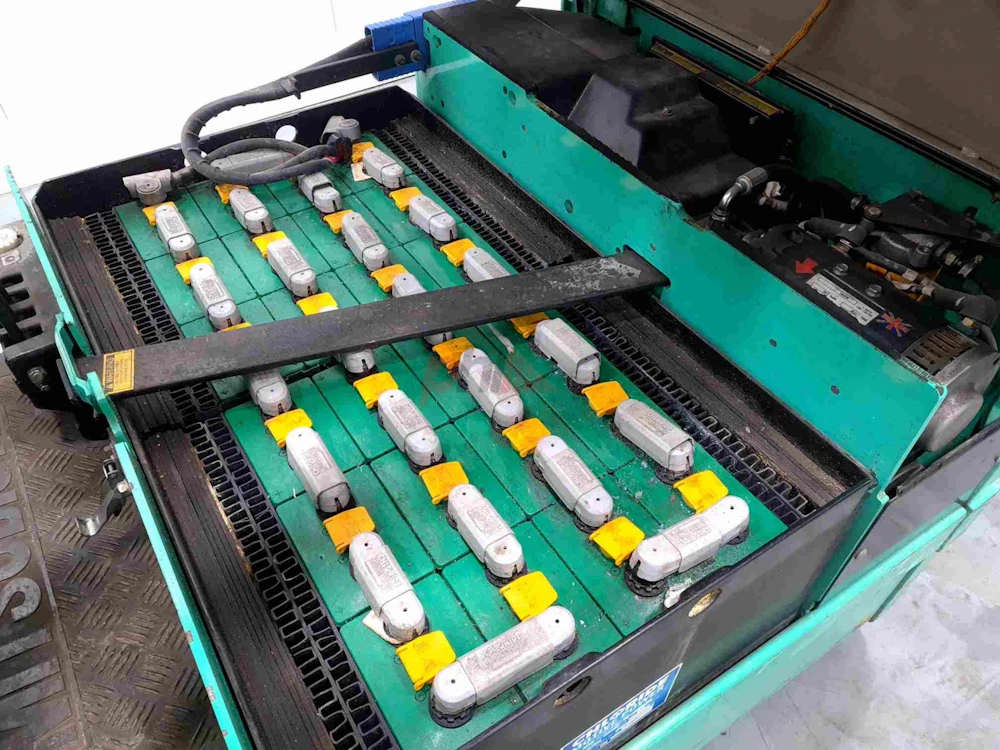

Battery weight 1225 kg
Drive motor (60 min rating) 6.2 kW
Battery voltage/capacity 48V / 438Ah V/Ah
Battery (Acc. to DIN) CHLORIDE MOTIVE POWER

Attachment

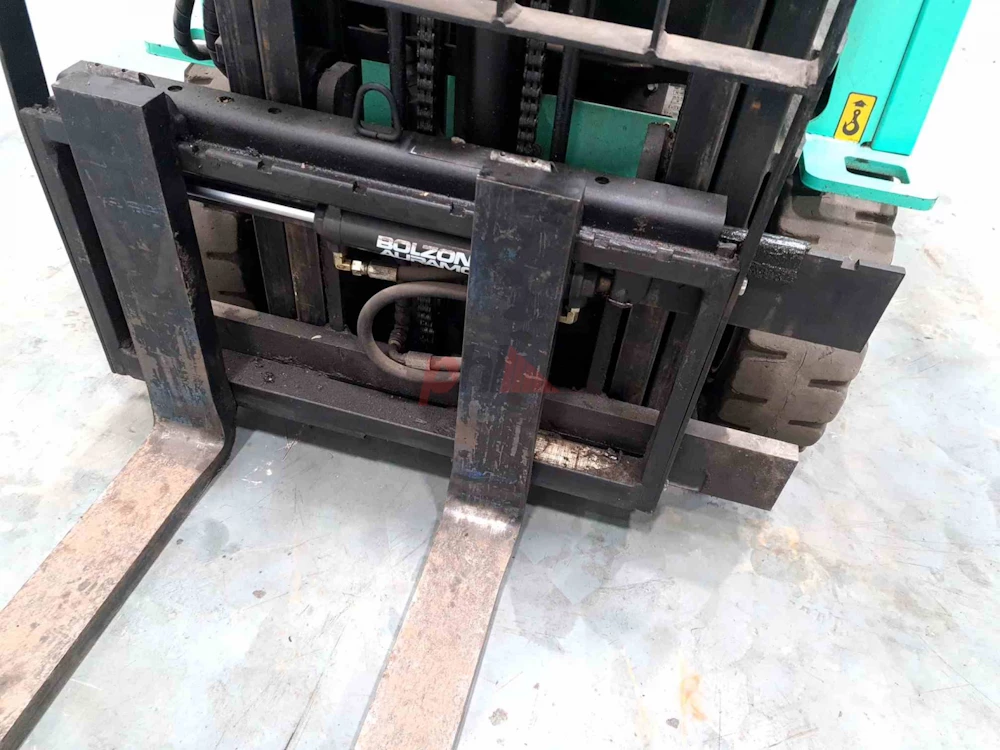

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

Engine

Engine type (Engine type) electric

Extras

Extras Lights, Key Lock Box.
Extras Hyds 3rd

Battery

Battery Serial No AB 0502952 F8
Battery Year (Battery Year of Manufacture) 1998
