LINDE TURRET MAN UP
TURRET MAN UP • Stock No: 385050 £££
Login to see price Model K
Year 2008
Euromast 3F912
Hours 19709
Capacity 1250 kg
Lift height 9125
Back to search results
![LINDE TURRET MAN DOWN]()
![LINDE TURRET MAN DOWN]()
![LINDE TURRET MAN DOWN]()
![LINDE TURRET MAN DOWN]()
![LINDE TURRET MAN DOWN]()
Stock No: 382531 Enquire about this vehicle Enquire via

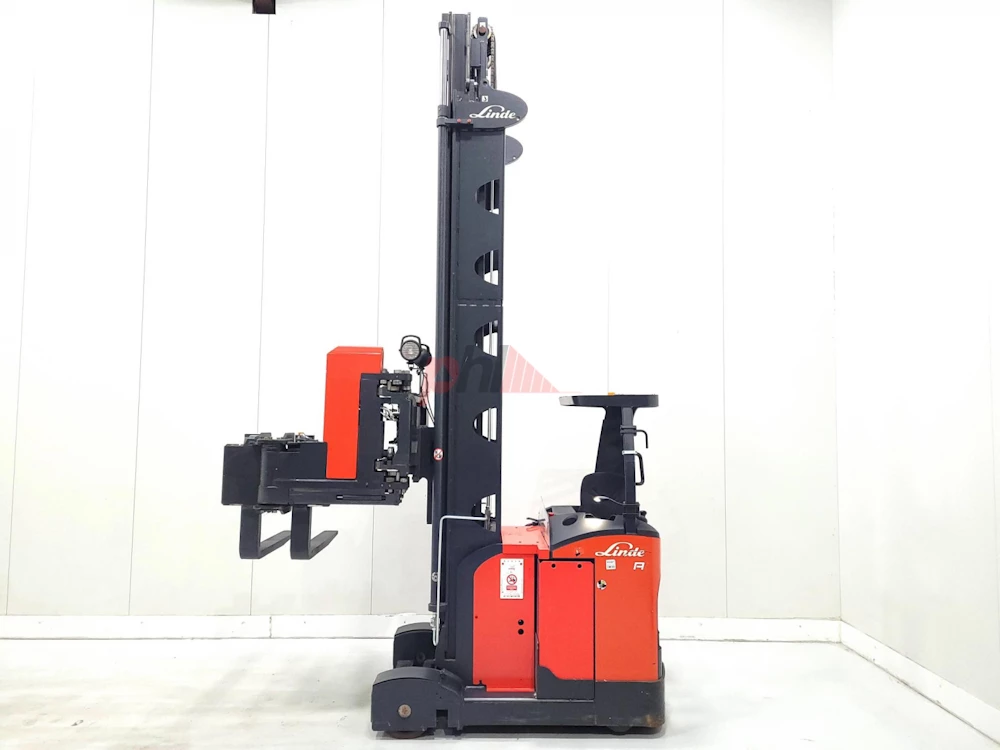

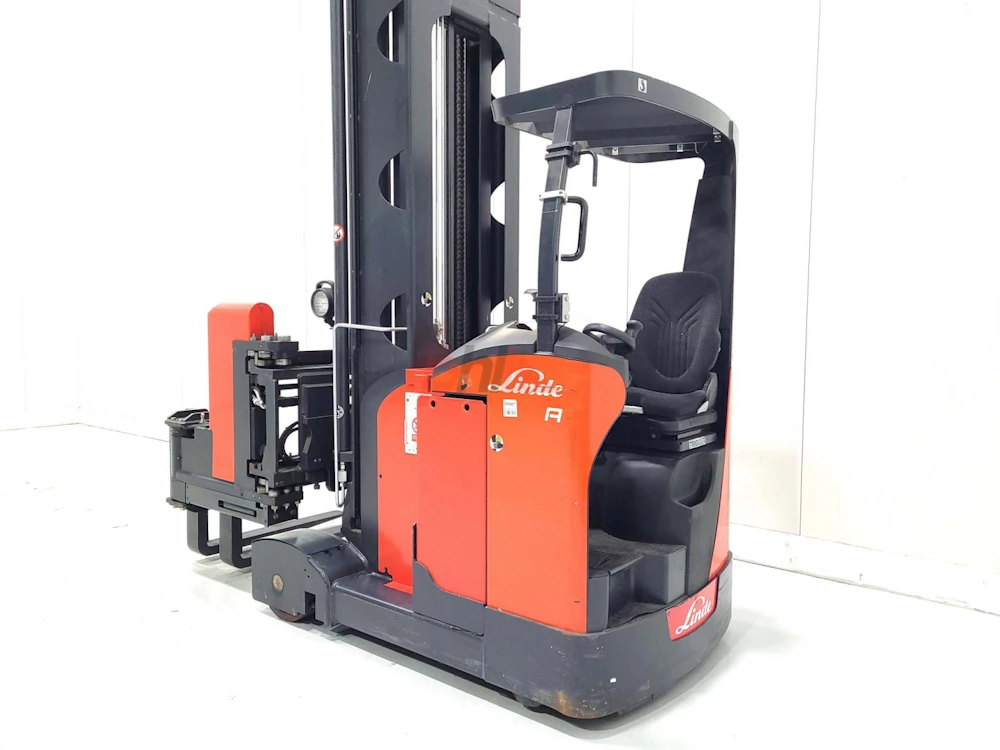

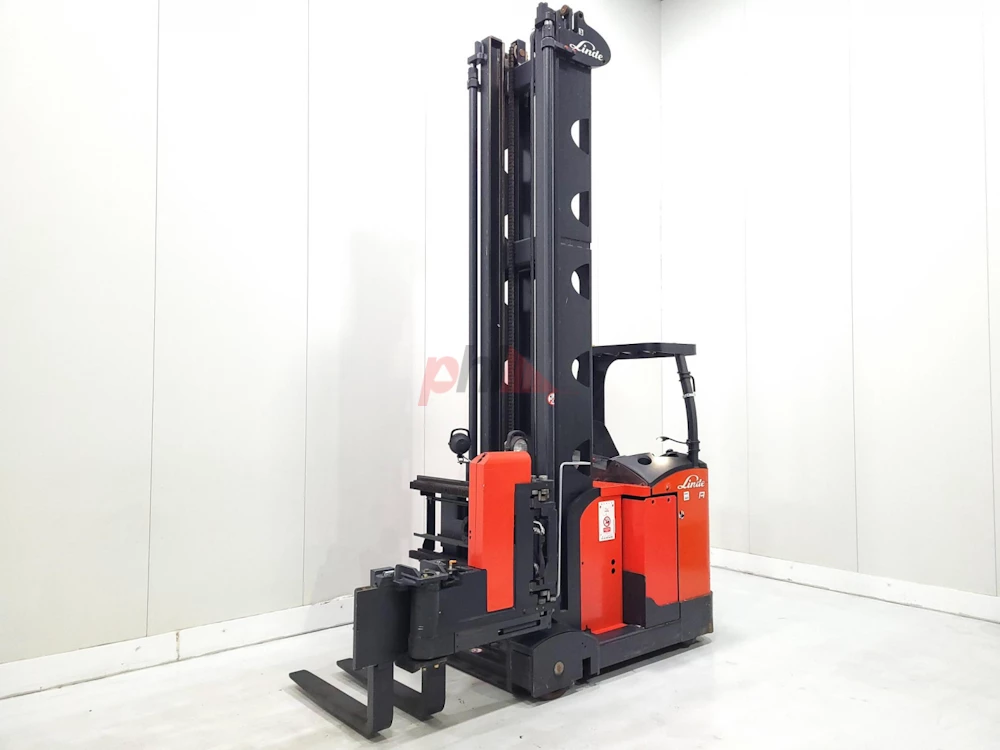

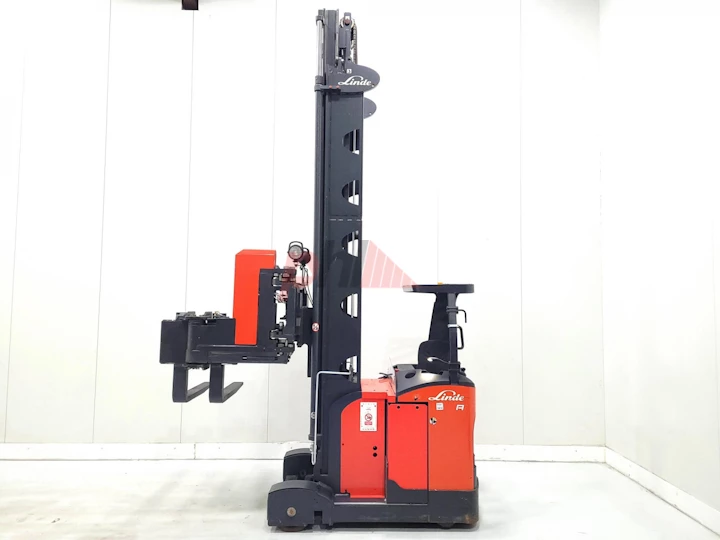

LINDE TURRET MAN DOWN
££££ Login to see price Register for a trade account Model A10
Year 2020
Euromast 2W566
Hours 993
Capacity 1250 kg
Lift height 5660
Download
Share
Further Vehicle Details
Specification:
Type TURRET MAN DOWN
Make LINDE
Valves
Character.
Load Centre (c) 600 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 1600 mm
Weights
Service weight (Total weight ) 5542 kg
Wheels
Tyres type Polyurethane
Dimensions
Lift height (h3) 5660 mm
Extended height (h4) 6140 mm
Height of overhead guard (cabin) (h6) 2190 mm
Overall length (l1) 3155 mm
Overall width (b1/b2) 1630 mm

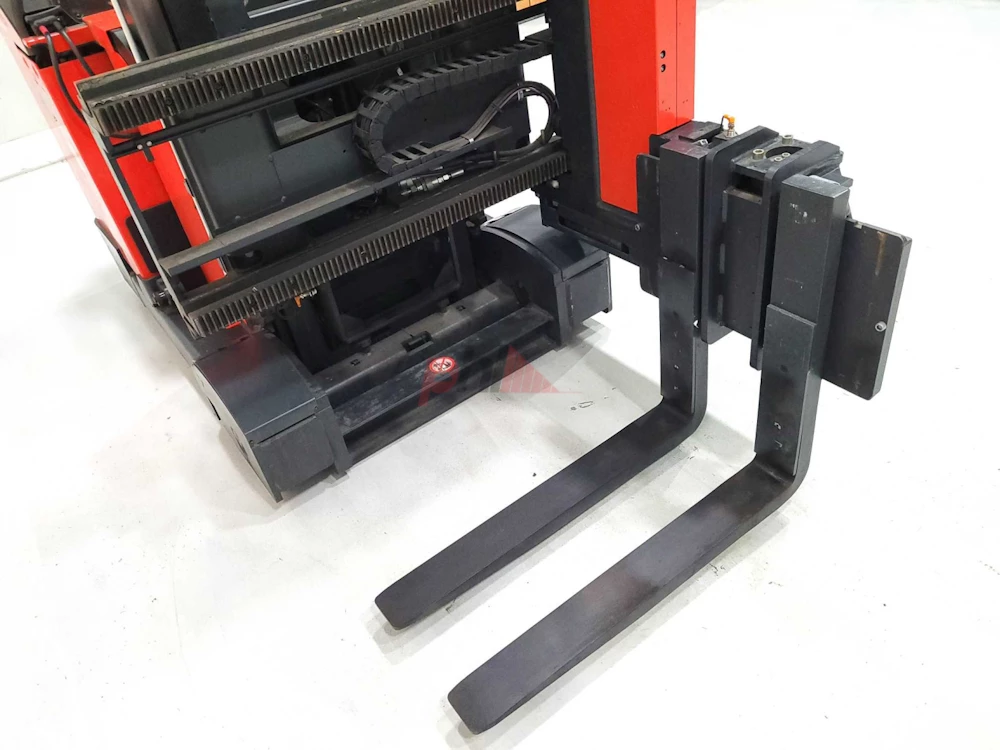

Forks length (l) 1195 mm
Fork carriage width (b3) 890 mm
Fork spread (min/max) (b5) 0 / 515 mm
Collapsed height (h1) 4410 mm
Forks height (s) 35 mm
Forks width (e) 150 mm
Fork height, lowered (h13) 35 mm
Rotator length 1040 mm
Auxiliary lift (h9) 990 mm
Fork pivot point (l8) 920 mm
Rotator width (F) 165 mm
Traverse frame width (B) 1530 mm
Overall width of chassis (b1) 1611 mm
Operating clearance (a3) 300 mm
Performance
Service brake electromagnetic
Drive
Battery weight 915 kg
Battery voltage/capacity 48V / 560Ah V/Ah

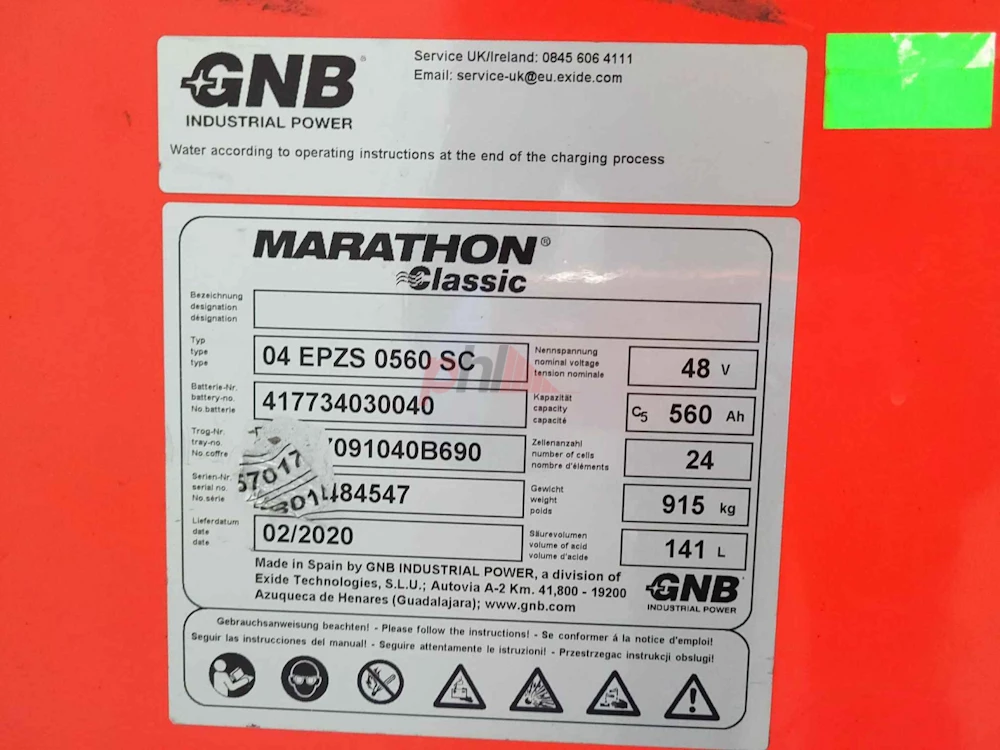

Battery (Acc. to DIN) MARATHON
Engine
Engine type (Engine type) electric
Extras
Extras LIGHTS, CABIN LIGHT
Battery
Battery Condition (Battery Condition) 90% %
Battery Year (Battery Year of Manufacture) 2020
