Further Vehicle Details
Specification:
Type STACKER, WRAPOVER
Make LINDE
Valves
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Stand-on
Weights
Service weight (Total weight ) 1090 kg
Dimensions
Lift height (h3) 2420 mm
Extended height (h4) 2970 mm
Overall length (l1) 1950 mm
Length to fork face (l2) 800 mm
Overall width (b1/b2) 810 mm
Forks length (l) 1150 mm
Fork spread (min/max) (b5) 570 mm
Width between legs (b4) 200 mm
Collapsed height (h1) 1910 mm
Auxiliary lift (h9) 200 mm
Drive

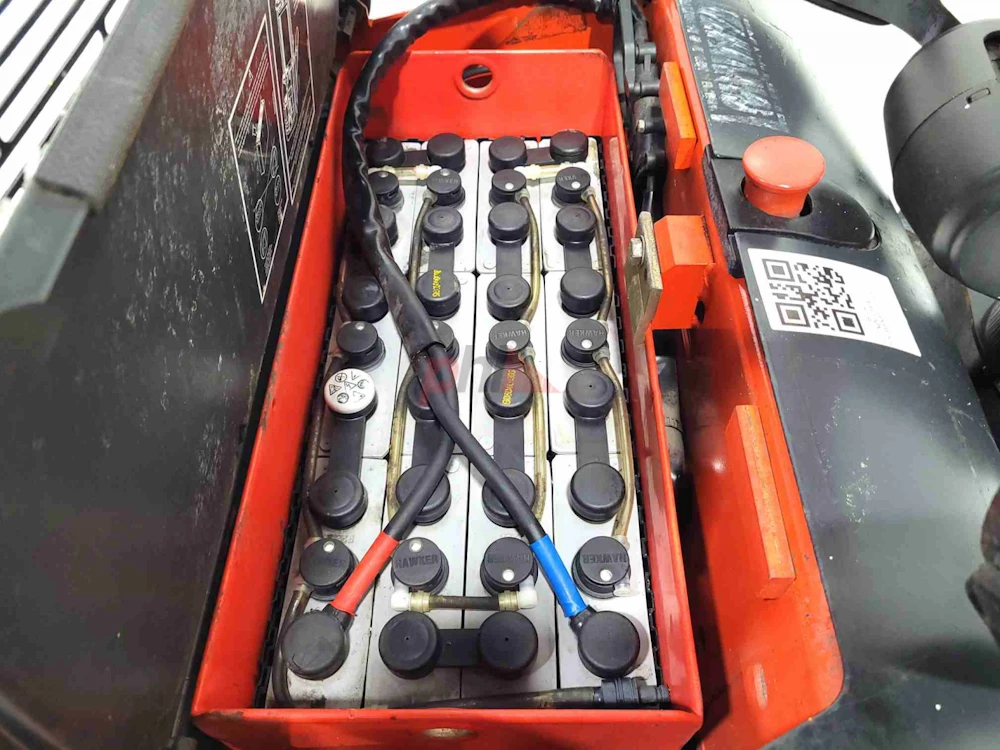

Battery voltage/capacity 24 / 315 V/Ah
Battery weight 285 kg
Engine
Engine type (Engine type) electric
