Stock No: 358515 Enquire about this vehicle Enquire via
LINDE REACH
££ Login to see price Register for a trade account Model R14G-12 115
Year 2012
Euromast 3F575
Hours 9422
Capacity 1400 kg
Lift height 5750
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make LINDE
Valves
Character.
Load Centre (c) 500/600 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 3361 kg
Wheels
Tyres type Superelastic
Dimensions
Lift height (h3) 5750 mm
Extended height (h4) 6810 mm
Height of overhead guard (cabin) (h6) 2200 mm
Height of reach legs (h8) 480 mm
Overall length (l1) 2550 mm
Length to fork face (l2) 1400 mm
Overall width (b1/b2) 1395 mm
Forks length (l) 1150 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 760 mm
Width between legs (b4) 930 mm
Reach travel (l4) 535 mm
Length of chasis (l7) 1800 mm
Collapsed height (h1) 2470 mm
Seat/stand height (h7) 1250 mm
Forks height (s) 40 mm
Forks width (e) 100 mm
Performance
Service brake electromagnetic
Drive
Battery weight 986 kg
Drive motor (60 min rating) 6.5 kW
Lift motor (15% rating) 10 kW
Battery class British Standard
Battery voltage/capacity 48V / 620Ah V/Ah
Battery (Acc. to DIN) HOPPECKE

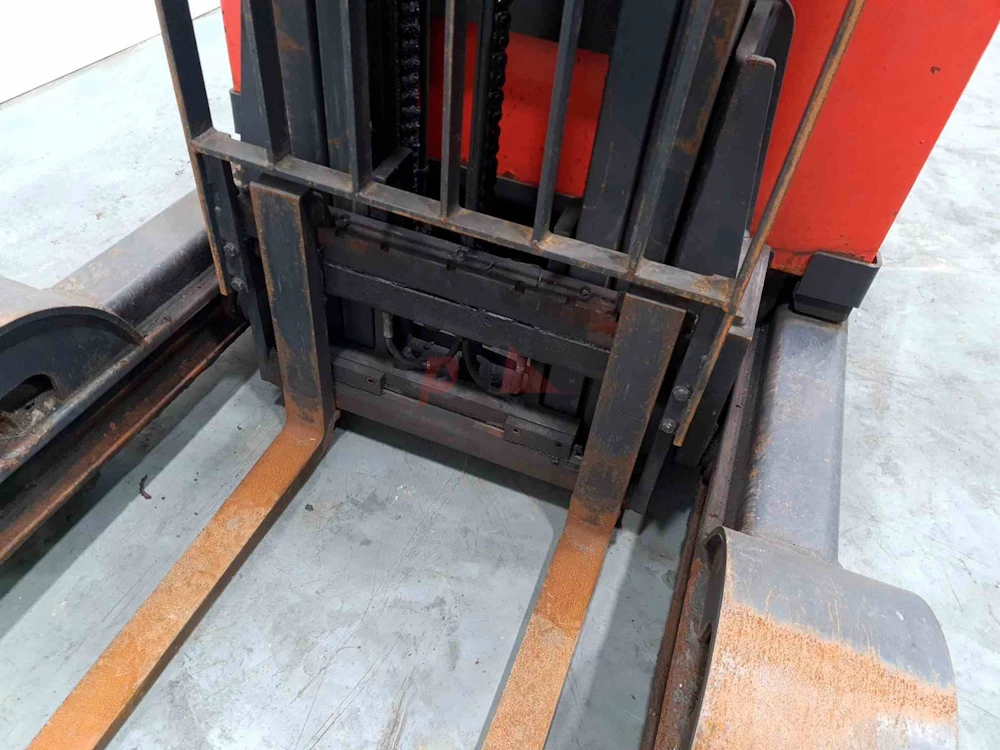

Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS.
Extras Hyds 3rd & 4th

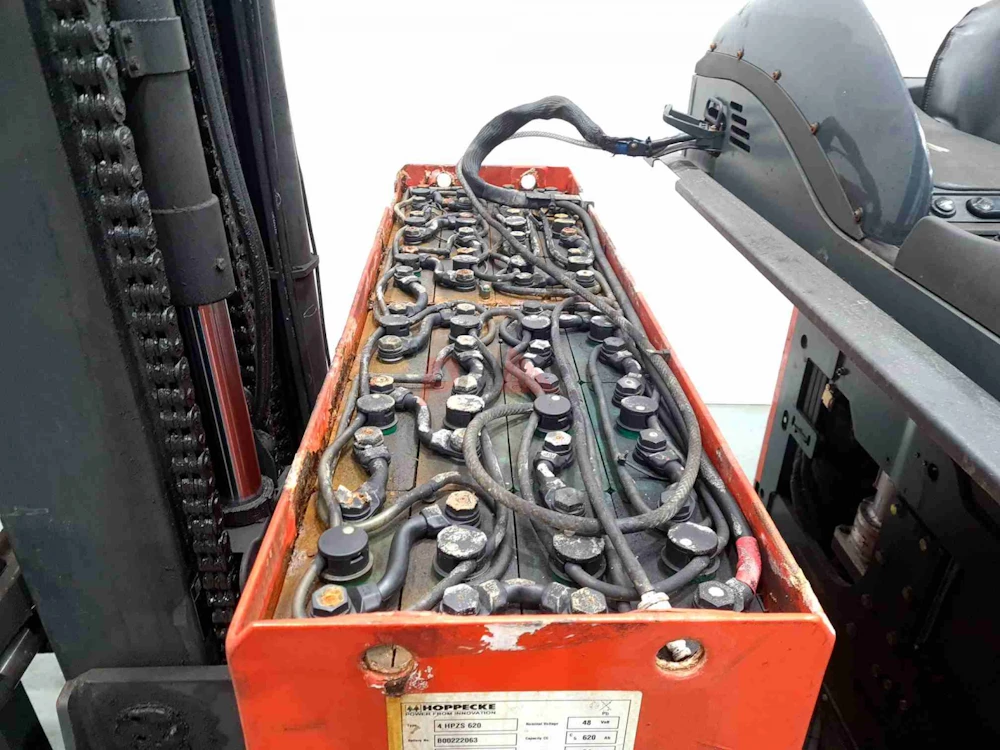

Battery
Battery Serial No B00222063
Battery Year (Battery Year of Manufacture) 2012
