LINDE REACH
REACH • Stock No: 355537 ££
Login to see price Model R14S 1120
Year 2013
Euromast 3F733
Hours 17211
Capacity 1400 kg
Lift height 7290
Back to search results
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
Stock No: 354133 Enquire about this vehicle Enquire via
LINDE REACH
££ Login to see price Register for a trade account Model R14-01 1120
Year 2015
Euromast 3F699
Hours 5452
Capacity 1400 kg
Lift height 6990
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make LINDE
Valves
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 3446 kg
Wheels
Tyres type Polyurethane
Dimensions
Lift height (h3) 6990 mm
Extended height (h4) 7990 mm
Height of overhead guard (cabin) (h6) 2120 mm
Height of reach legs (h8) 310 mm
Overall length (l1) 2240 mm
Length to fork face (l2) 1240 mm
Overall width (b1/b2) 1280 mm
Forks length (l) 1000 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 870 mm
Width between legs (b4) 930 mm
Reach travel (l4) 500 mm
Length of chasis (l7) 1750 mm
Collapsed height (h1) 2930 mm
Forks height (s) 45 mm
Forks width (e) 100 mm
Auxiliary lift (h9) 2410 mm
Performance
Service brake electromagnetic
Drive

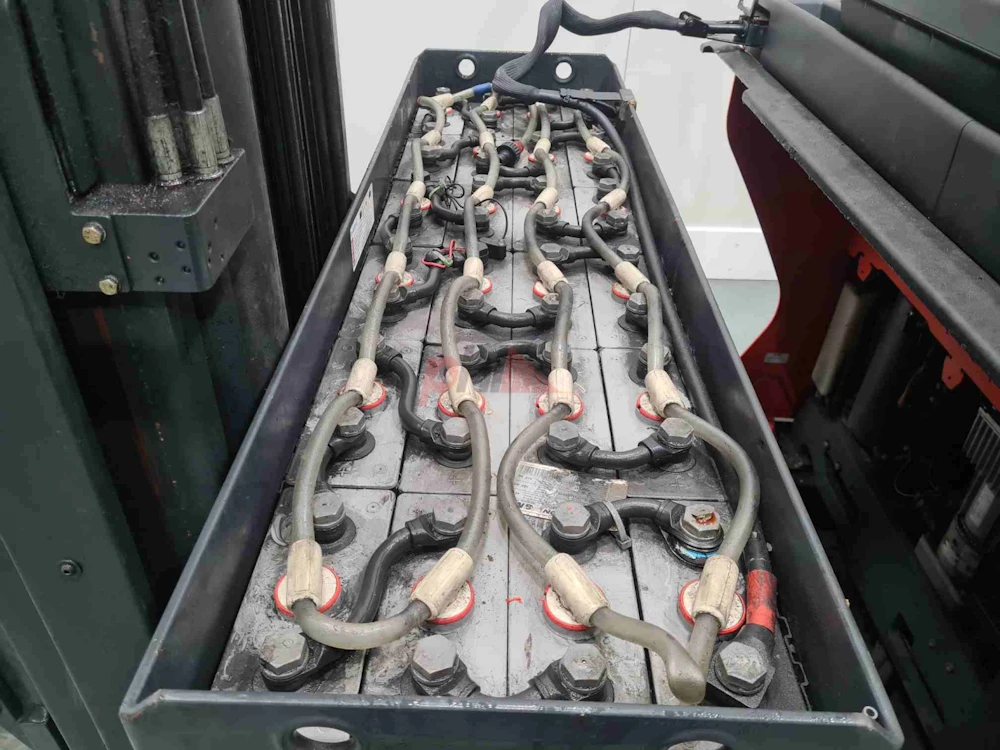

Battery weight 986 kg
Drive motor (60 min rating) 6.5 kW
Lift motor (15% rating) 10 kW
Battery class British Standard
Battery voltage/capacity 48V/560Ah V/Ah
Battery (Acc. to DIN) GNB MARATHON CLASSIC
Attachment

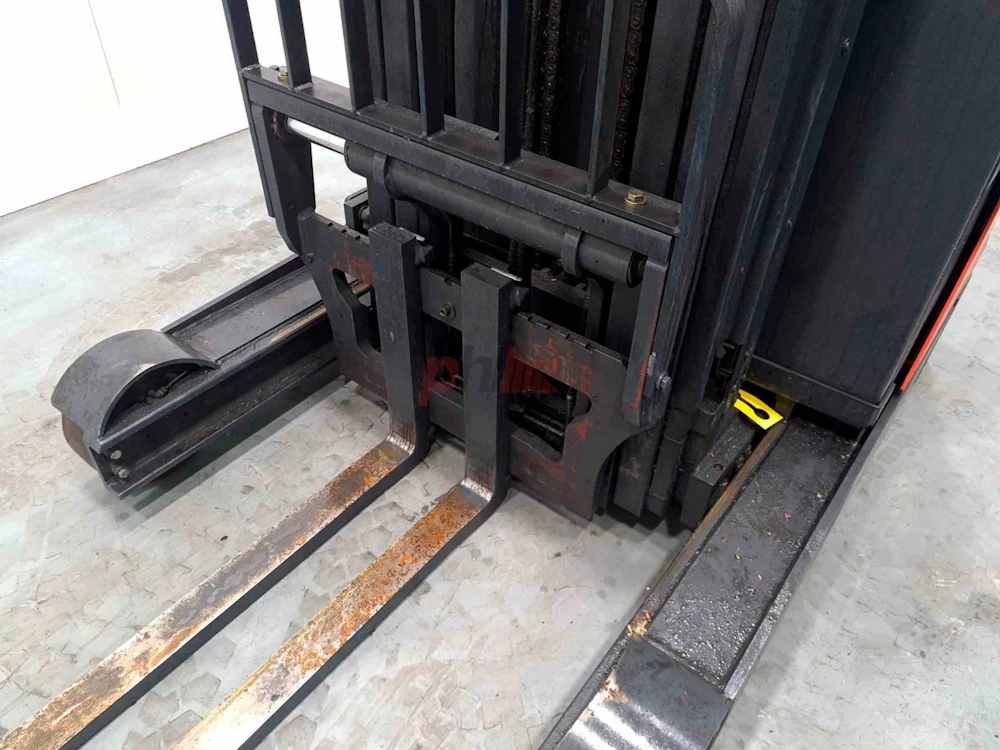

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, LED Light.
Extras Hyds 3rd & 4th
Battery
Battery Year (Battery Year of Manufacture) 2015
