Stock No: 354037

LINDE REACH

££ Register for a trade account
Model R14-01 1120
Year 2016
Euromast 3F509
Hours 1640
Capacity 1400 kg
Lift height 5090
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type REACH
Make LINDE
Valves

Character.

Load Centre (c) 500 mm
Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 2917 kg

Wheels

Tyres type Polyurethane

Dimensions

Free lift (h2) 1850 mm
Lift height (h3) 5090 mm
Extended height (h4) 6090 mm
Height of overhead guard (cabin) (h6) 2100 mm
Height of reach legs (h8) 310 mm
Overall length (l1) 2180 mm
Length to fork face (l2) 1200 mm
Overall width (b1/b2) 1280 mm
Forks length (l) 1000 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 870 mm
Width between legs (b4) 920 mm
Reach travel (l4) 520 mm
Ground clearance, mast (m1) 1600 mm
Length of chasis (l7) 1600 mm
Forks height (s) 40 mm
Forks width (e) 100 mm

Performance

Service brake electromagnetic

Drive

Battery weight 788 kg
Drive motor (60 min rating) 6.5 kW
Battery class British Standard
Battery voltage/capacity 48V / 420Ah V/Ah
Battery (Acc. to DIN) GNB MARATHON CLASSIC

Attachment

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

Engine

Engine type (Engine type) electric

Extras

Extras SS, Blue Spot.
Extras Hyds 3rd & 4th

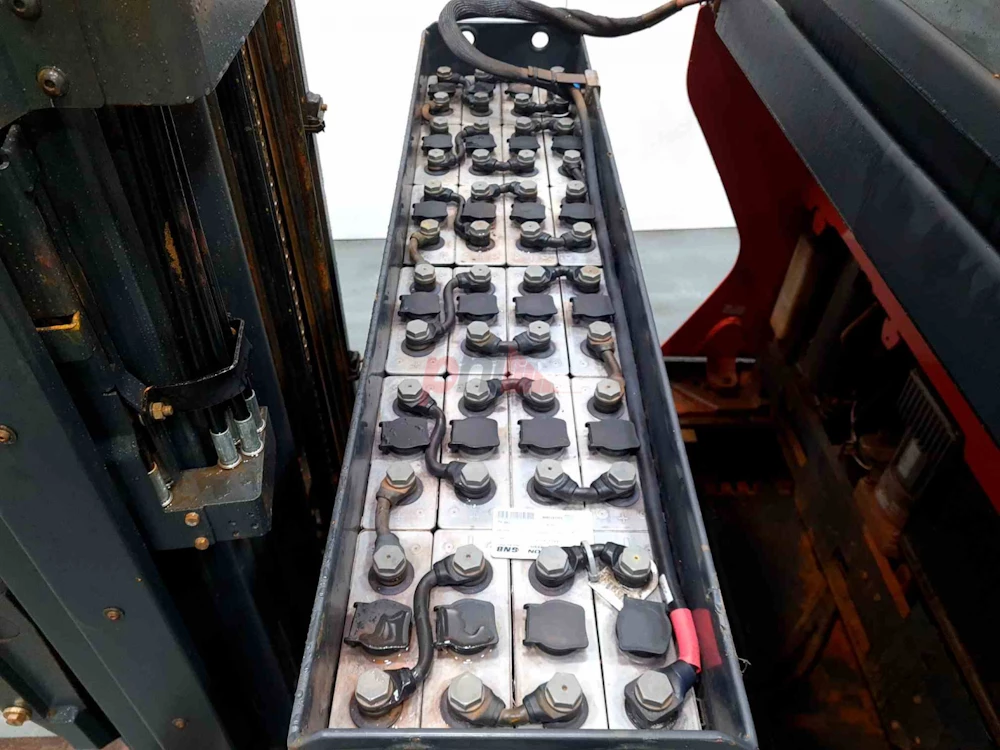

Battery

Battery Serial No 0201413609
Battery Year (Battery Year of Manufacture) 2016
