LINDE REACH
REACH • Stock No: 355537 ££
Login to see price Model R14S 1120
Year 2013
Euromast 3F733
Hours 17211
Capacity 1400 kg
Lift height 7290
Back to search results
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
Stock No: 353568 Enquire about this vehicle Enquire via

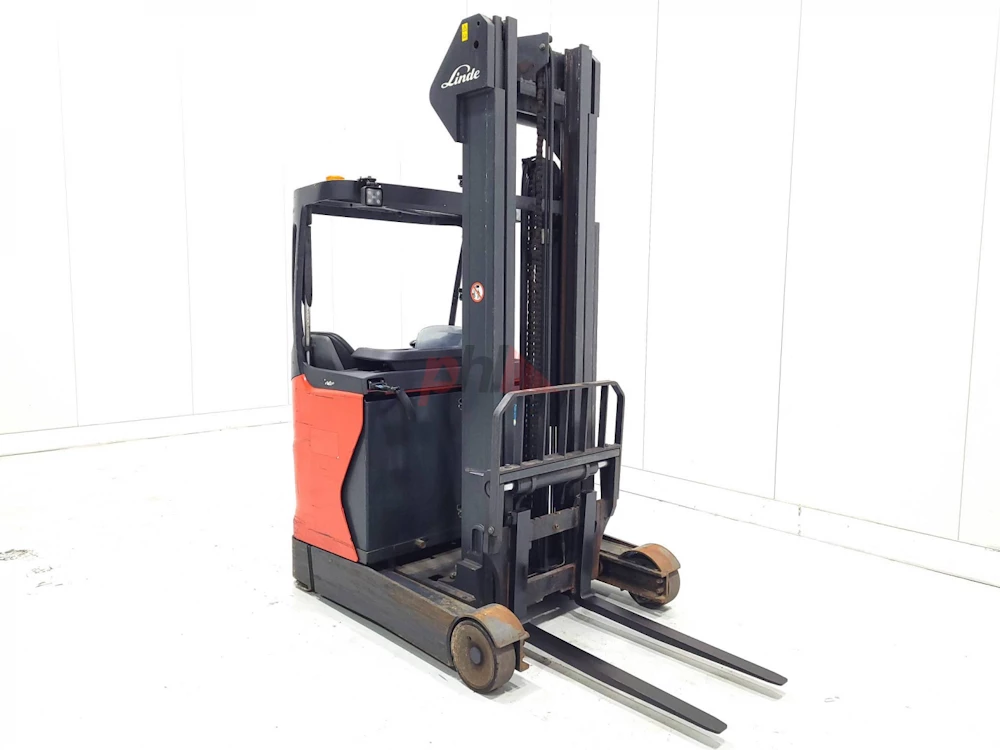

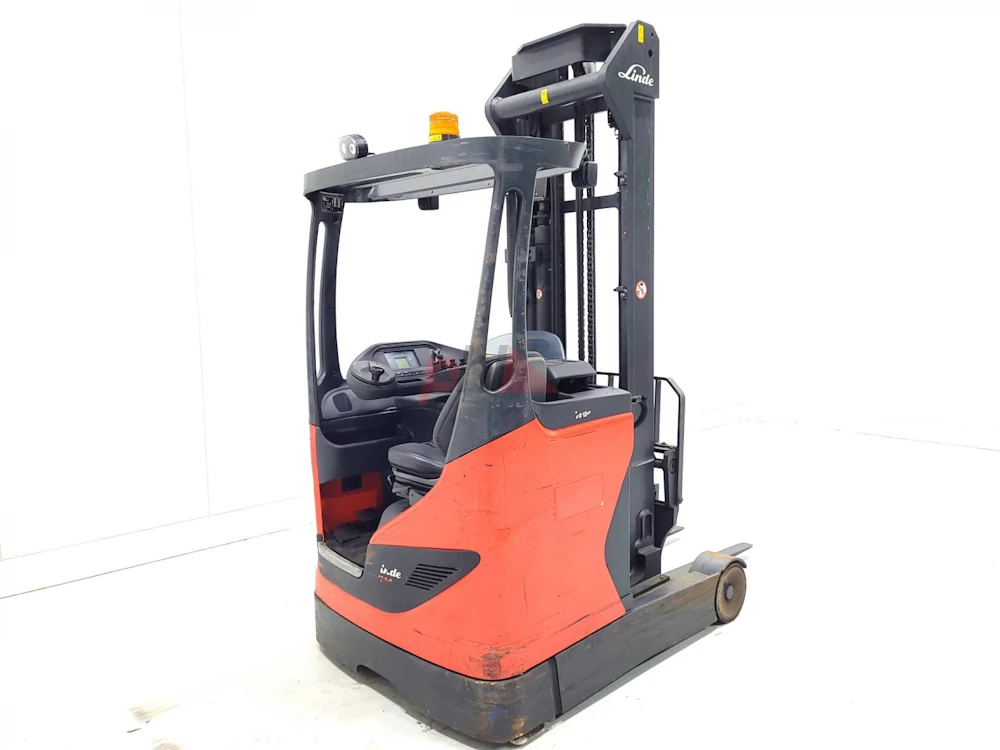

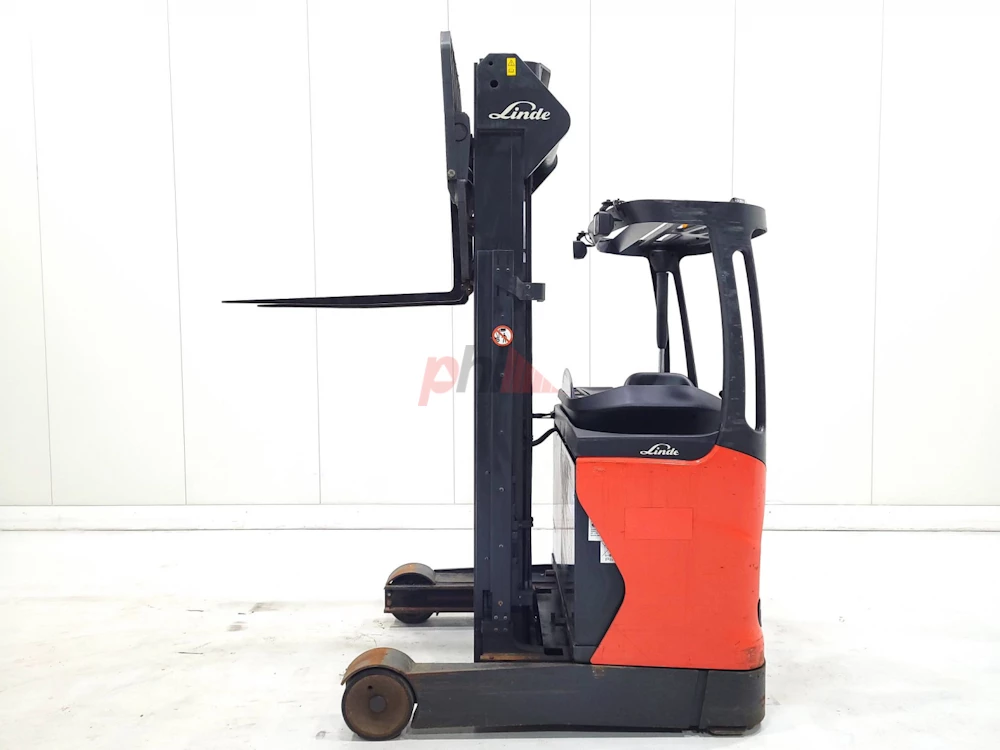

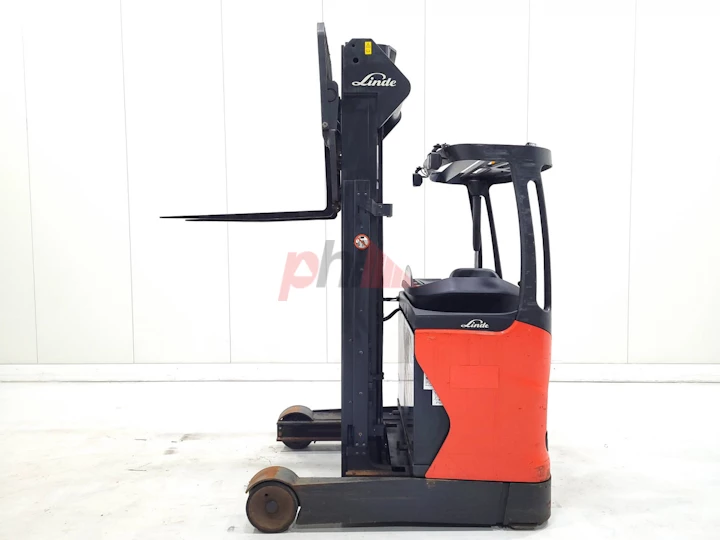

LINDE REACH
££ Login to see price Register for a trade account Model R14-01
Year 2014
Euromast 3F649
Hours 3625
Capacity 1400 kg
Lift height 6490
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make LINDE
Valves
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 2355 kg
Wheels
Tyres type Superelastic
Tyre size front worn mm
Tyre size rear worn mm
Dimensions
Free lift (h2) 1850 mm
Lift height (h3) 6490 mm
Extended height (h4) 7500 mm
Height of overhead guard (cabin) (h6) 2100 mm
Height of reach legs (h8) 310 mm
Overall length (l1) 2300 mm
Length to fork face (l2) 1200 mm
Overall width (b1/b2) 1250 mm
Forks length (l) 1100 mm

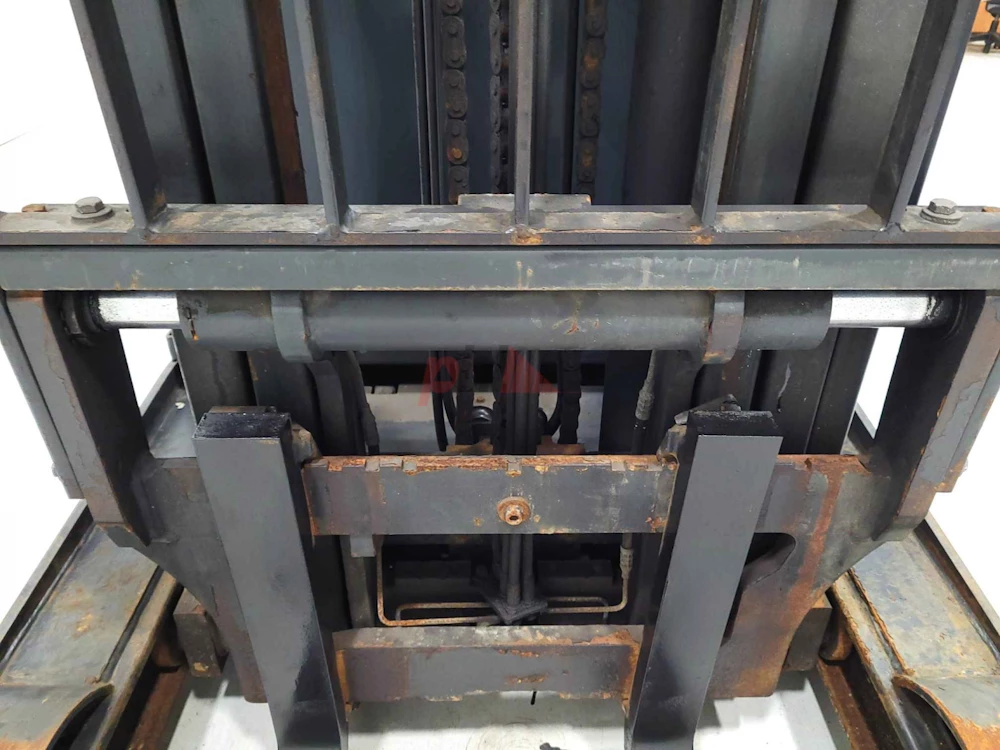

Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 770 mm
Fork spread (min/max) (b5) 195/740 mm
Width between legs (b4) 930 mm
Reach travel (l4) 495 mm
Length of chasis (l7) 1600 mm
Collapsed height (h1) 2700 mm
Forks width (e) 80 mm
Performance
Service brake electromagnetic
Drive
Battery weight 718 kg
Drive motor (60 min rating) 6.5 kW
Battery class British Standard
Battery voltage/capacity 48 / 420 V/Ah
Battery (Acc. to DIN) Hoppecke
Attachment
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, LED lights, Blue Spot.
Extras Hyds 3rd & 4th

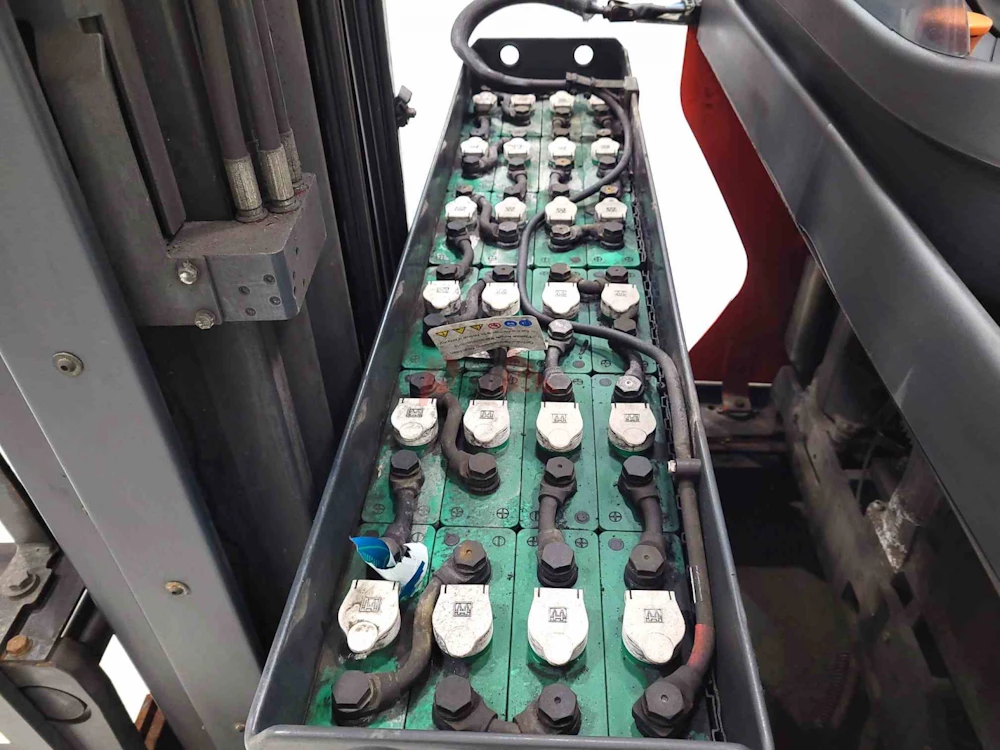

Battery
Battery Serial No 261769
Battery Year (Battery Year of Manufacture) 04/2014
