LINDE REACH
REACH • Stock No: 355537 ££
Login to see price Model R14S 1120
Year 2013
Euromast 3F733
Hours 17211
Capacity 1400 kg
Lift height 7290
Back to search results
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
![LINDE REACH]()
Stock No: 352723 Enquire about this vehicle Enquire via
LINDE REACH
££ Login to see price Register for a trade account Model R14-01 1120
Year 2015
Euromast 3F749
Hours 4266
Capacity 1400 kg
Lift height 7490
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make LINDE
Valves
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 3442 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 2560 mm
Lift height (h3) 7490 mm
Extended height (h4) 8530 mm
Height of overhead guard (cabin) (h6) 2100 mm
Height of reach legs (h8) 310 mm
Overall length (l1) 2180 mm
Length to fork face (l2) 1280 mm
Overall width (b1/b2) 1280 mm
Forks length (l) 1000 mm

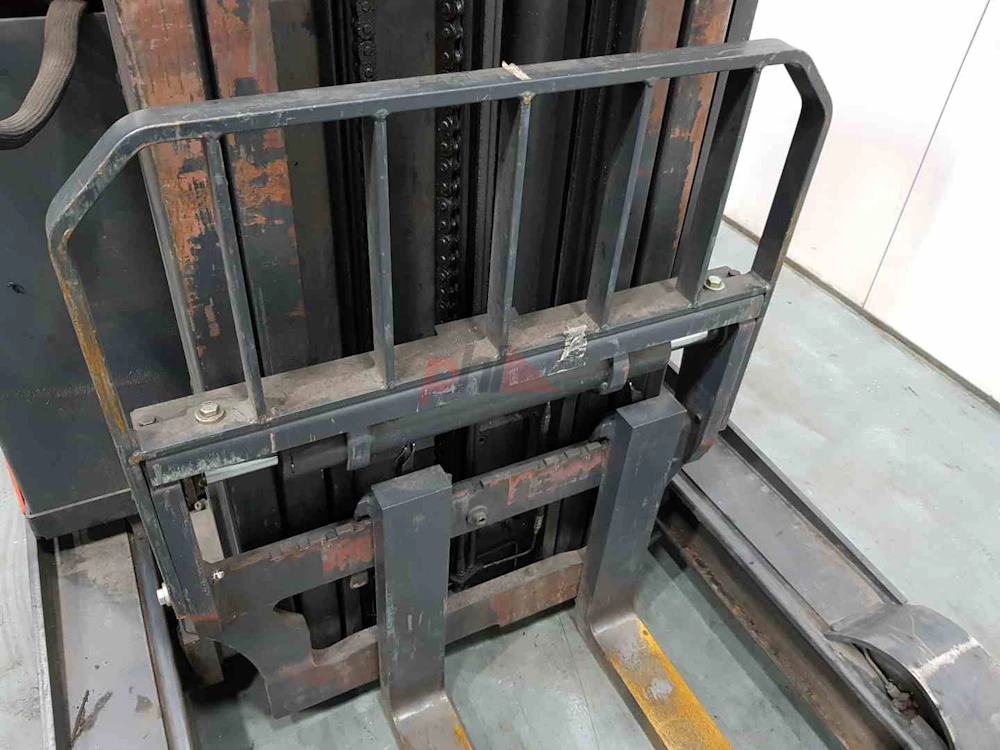

Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 870 mm
Width between legs (b4) 920 mm
Reach travel (l4) 520 mm
Ground clearance, mast (m1) 1600 mm
Length of chasis (l7) 1700 mm
Collapsed height (h1) 3080 mm
Forks height (s) 40 mm
Forks width (e) 80 mm
Performance
Service brake electromagnetic
Drive
Battery weight 788 kg
Drive motor (60 min rating) 6.5 kW
Battery class British Standard
Battery voltage/capacity 48V / 465Ah V/Ah
Battery (Acc. to DIN) GNB Marathon Classic
Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, Blue Spot.
Extras Hyds 3rd & 4th

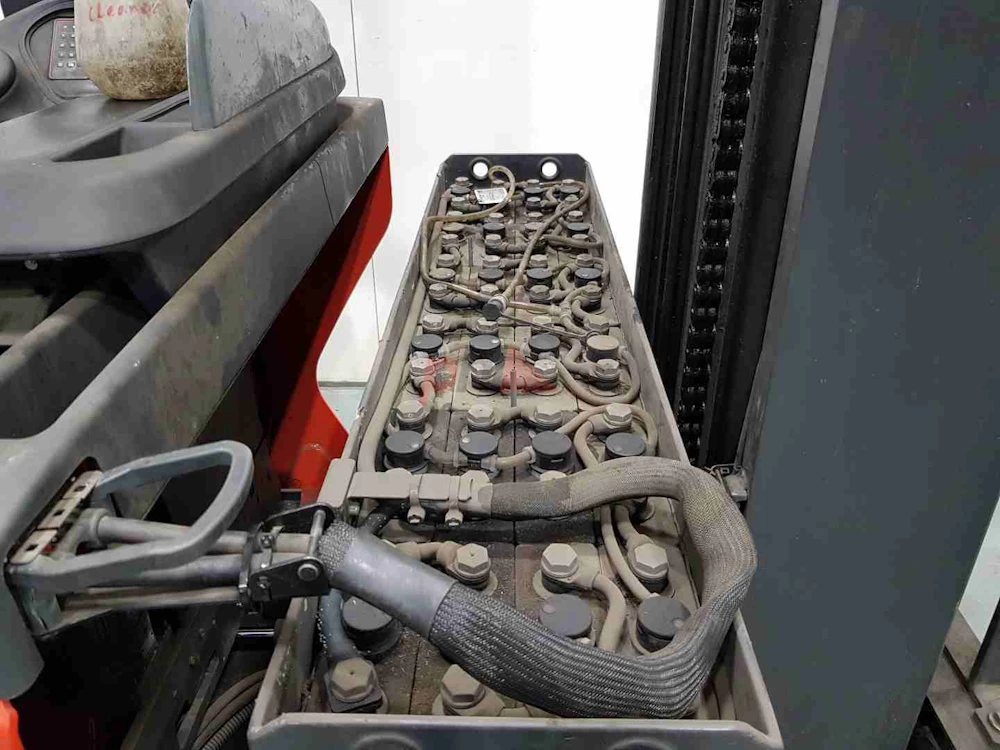

Battery
Battery Serial No 0201402735
Battery Year (Battery Year of Manufacture) 2015
