Stock No: 337429

LINDE GAS

GBP 10750.00 USD 13610.00 EUR 12550.00 Register for a trade account
Model H25T 392
Year 2011
Euromast 3F470
Hours 7030
Capacity 2500 kg
Lift height 4700
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type GAS
Make LINDE
Valves

Character.

Load Centre (c) 500 mm
Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 3840 kg
Axle load without load (front/rear) 1679/1877 kg
Axle load with load (front/rear) 5347/709 kg

Wheels

Tyres type Superelastic
Tyres front condition 35%
Tyres rear condition WORN
Tyre size front 23X8-10 mm
Tyre size rear 6.5-10 mm
Track width front (b10) 972 mm
Track width rear (b11) 942 mm

Dimensions

Mast or fork carrage tilt (alpha,beta) 5/8 grad
Lift height (h3) 4700 mm
Extended height (h4) 5800 mm
Height of overhead guard (cabin) (h6) 2170 mm
Overall length (l1) 3900 mm
Length to fork face (l2) 2700 mm
Overall width (b1/b2) 1180 mm
Forks length (l) 1200 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 1150 mm
Ground clearance, mast (m1) 109 mm
Ground clearance, centre of wheelbase (m2) 129 mm
Turning radius (Wa) 2420 mm
Length of chasis (l7) 2535 mm
Ast across 1000x1200 (Ast) 4010 mm
Ast along 800x1200 (Ast) 4210 mm
Towing coupling height (h10) 645 mm
Collapsed height (h1) 2150 mm
Seat/stand height (h7) 1065 mm
Forks height (s) 45 mm
Forks width (e) 100 mm
Auxiliary lift (h9) 1650 mm

Performance

Service brake hydrostatic

Drive

Drive motor (60 min rating) 44 kW
Battery voltage/capacity 12V V/Ah

Other

Noise level 79 dB
Working pressure 205/220 bar
Oil flow (For attachments) 32 l/min
Traction control HYDROSTATIC TRANSMISSION

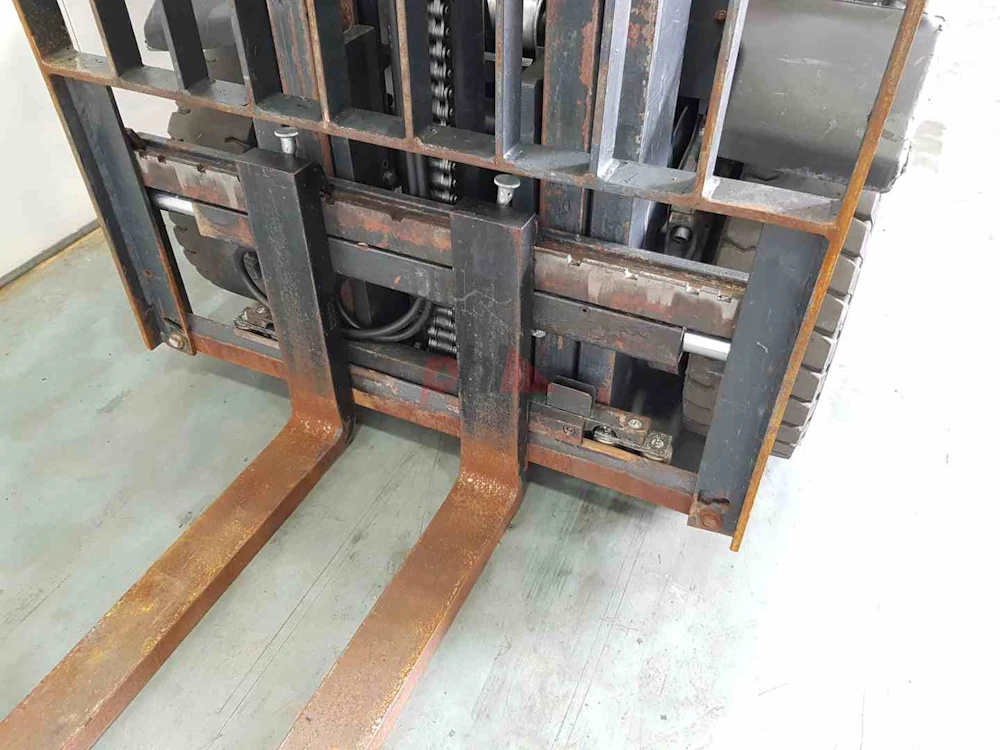

Attachment

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

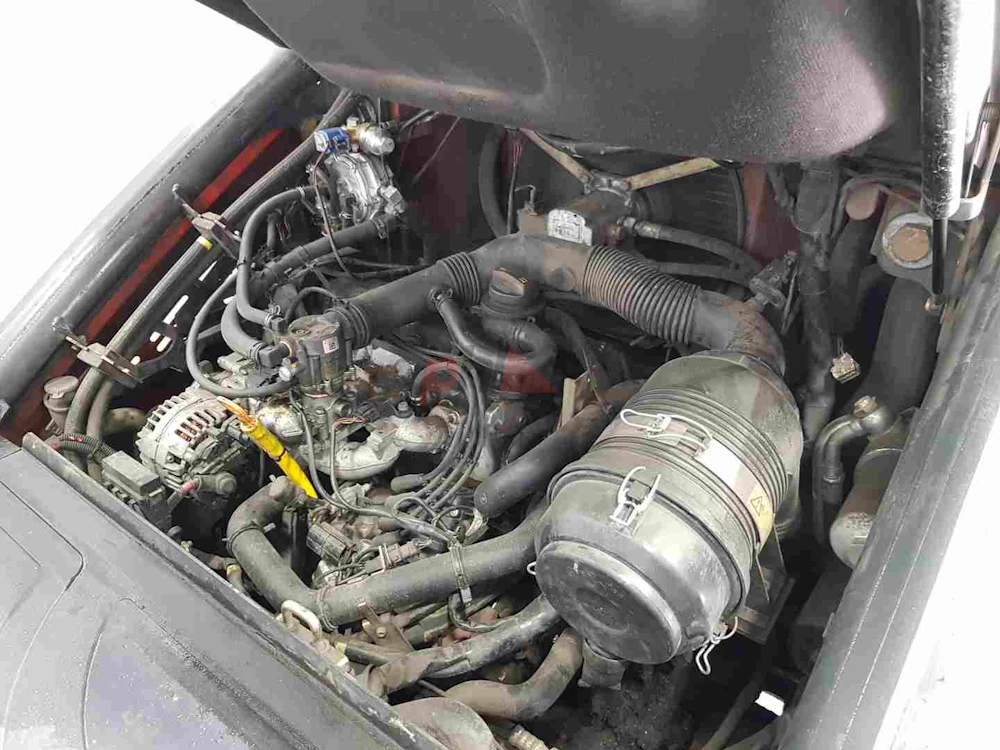

Engine

Manufacturer of engine/type VW / AUDI
Engine rated power (ISO 1585) 44 kW
Rated rpm 2600 rpm
Cylinders/Displac. ccm 4/1984
Fuel consumption (VDI) 2.1/2.7 l/h
Engine type (Engine type) gas

Extras

Extras SS, Half Cab, Lights.
Extras Hyds 3rd & 4th
To carriage 1
