Stock No: 336933

LINDE GAS

£ Register for a trade account
Model H18T 350
Year 1999
Euromast 2F350
Hours 9752
Capacity 1800 kg
Lift height 3500
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type GAS
Make LINDE
Valves 3

Character.

Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 1500 mm

Weights

Service weight (Total weight ) 2910 kg
Axle load without load (front/rear) 1250/1640 kg
Axle load with load (front/rear) 4070/620 kg

Wheels

Tyres type Superelastic
Tyres front condition 20%
Tyres rear condition WORN
Tyre size front 200/50-10 mm
Tyre size rear 18X7-8 mm
Track width front (b10) 945 mm
Track width rear (b11) 873 mm

Dimensions

Mast or fork carrage tilt (alpha,beta) 6/10 grad
Lift height (h3) 3500 mm
Extended height (h4) 4500 mm
Height of overhead guard (cabin) (h6) 2070 mm
Overall length (l1) 3460 mm
Length to fork face (l2) 2260 mm
Overall width (b1/b2) 1168 mm
Forks length (l) 1200 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 1040 mm
Ground clearance, mast (m1) 98 mm
Ground clearance, centre of wheelbase (m2) 119 mm
Turning radius (Wa) 2026 mm
Ast across 1000x1200 (Ast) 3606 mm
Ast along 800x1200 (Ast) 3806 mm
Towing coupling height (h10) 560 mm
Collapsed height (h1) 2080 mm
Seat/stand height (h7) 1000 mm
Forks height (s) 40 mm
Forks width (e) 100 mm

Performance

Travel speed (With, w/o load) 18/18.5 km/h
Lifting speed (With, w/o load) 0.57/0.58 m/s
Lowering speed (With, w/o load) 0.53/0.45 m/s
Climbing ability (30 min rating - with, w/o load) 31/26 %
Acceleration time (With, w/o load) 4.9/4.4 sec
Service brake hydrostatic

Drive

Drive motor (60 min rating) 27 kW
Battery voltage/capacity 12V V/Ah

Other

Noise level 76 dB
Working pressure 230 bar
Oil flow (For attachments) 18 l/min
Traction control HYDROSTATIC TRANSMISSION

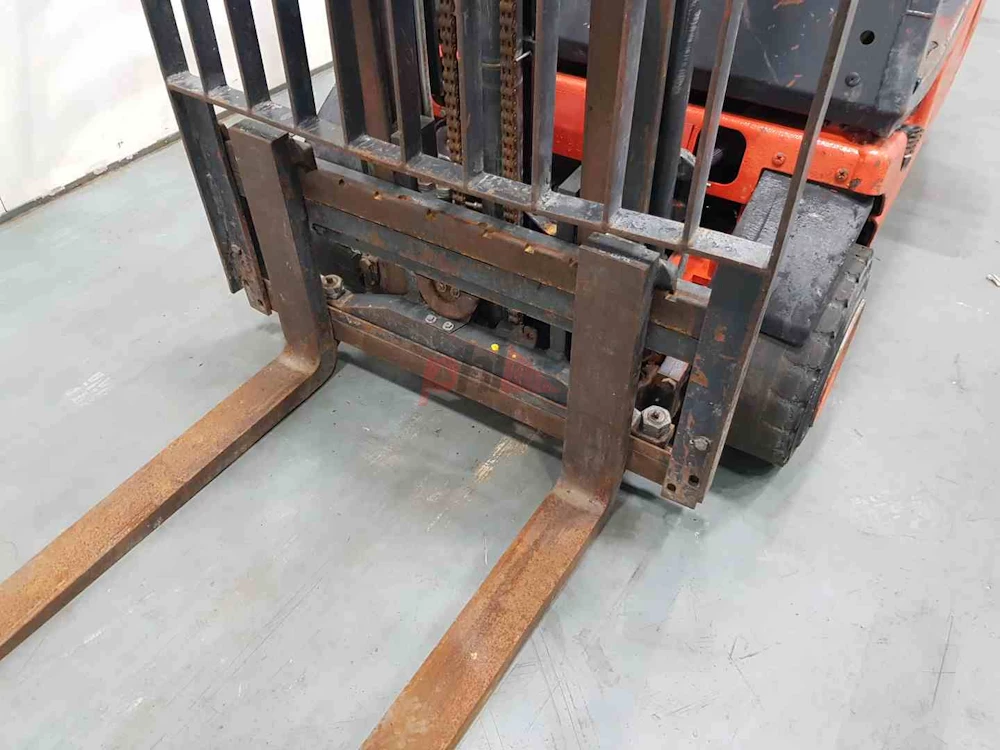

Attachment

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

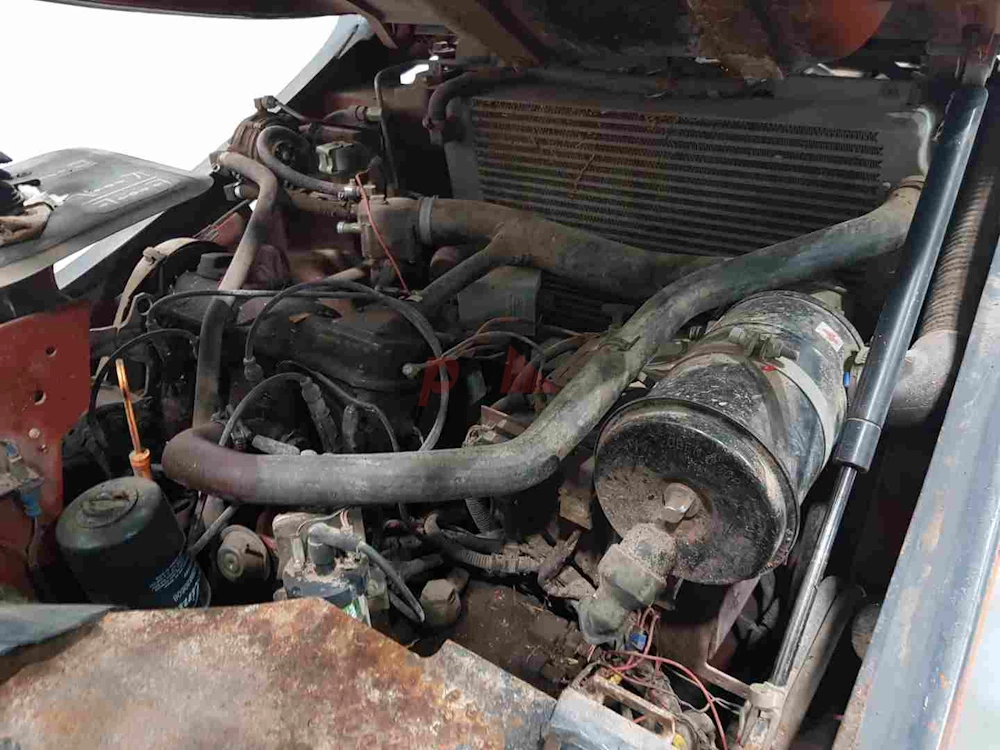

Engine

Manufacturer of engine/type VW/ADF
Engine rated power (ISO 1585) 27 kW
Rated rpm 2300 rpm
Cylinders/Displac. ccm 4/1781
Fuel consumption (VDI) 2.3 l/h
Engine type (Engine type) gas

Extras

Extras SS, Lights.
Extras Hyds 3rd
