Stock No: 326778 Enquire about this vehicle Enquire via

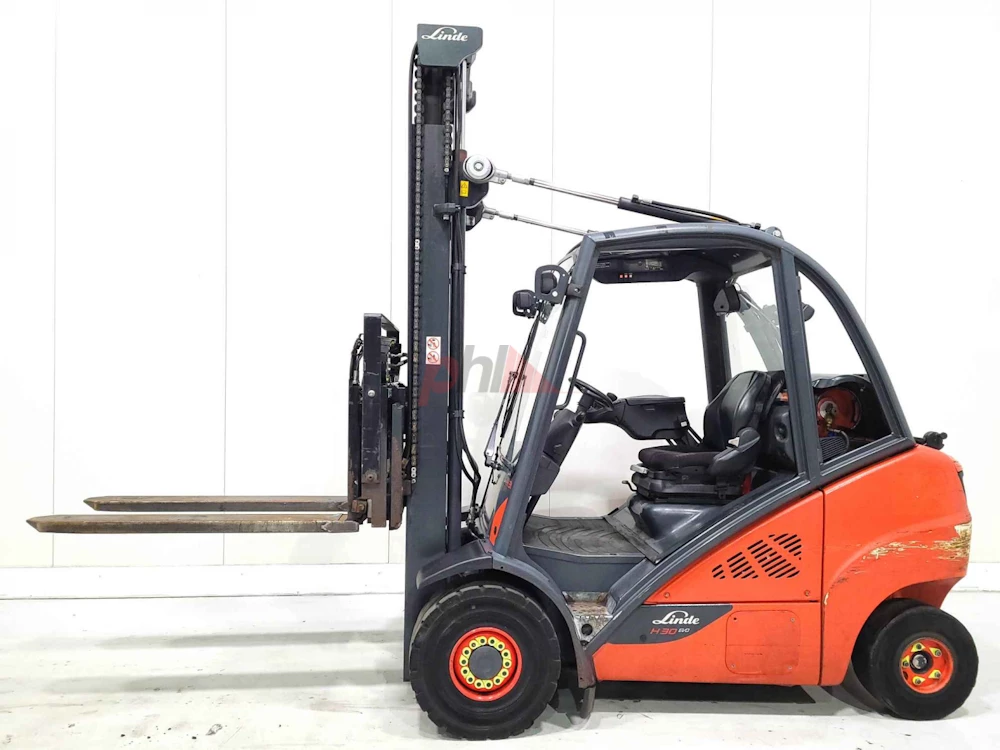

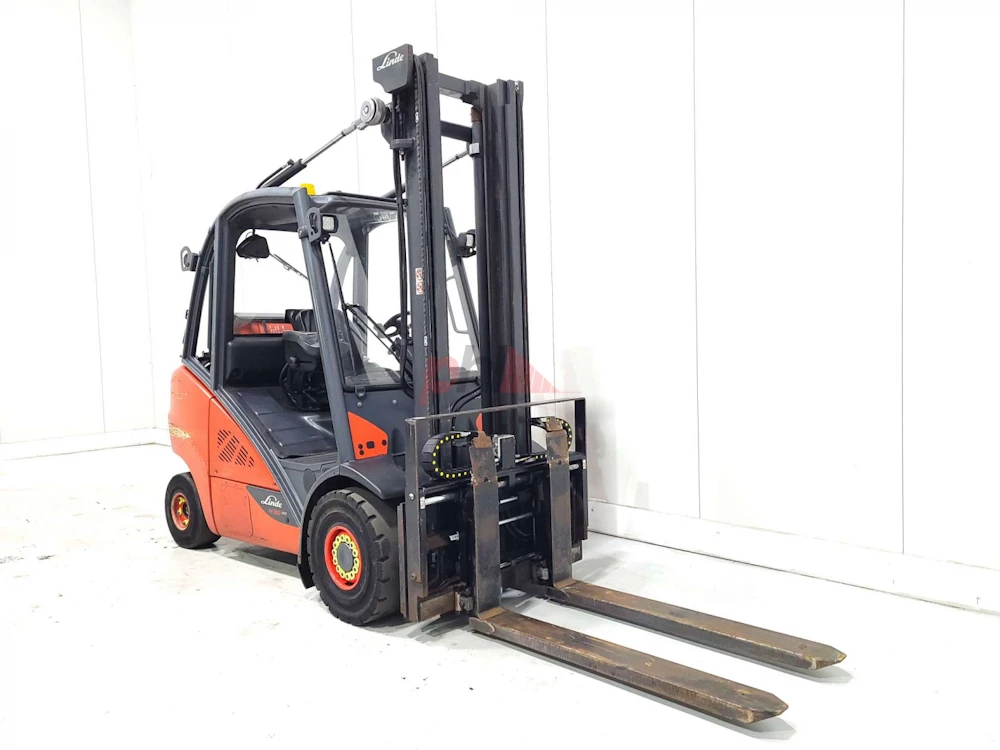

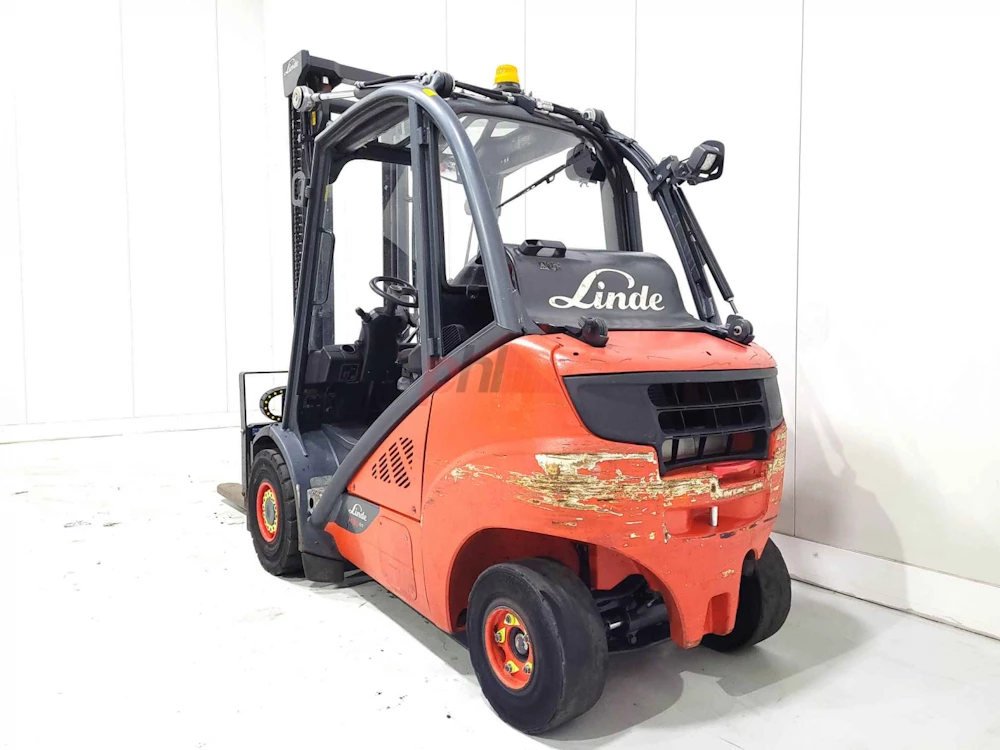

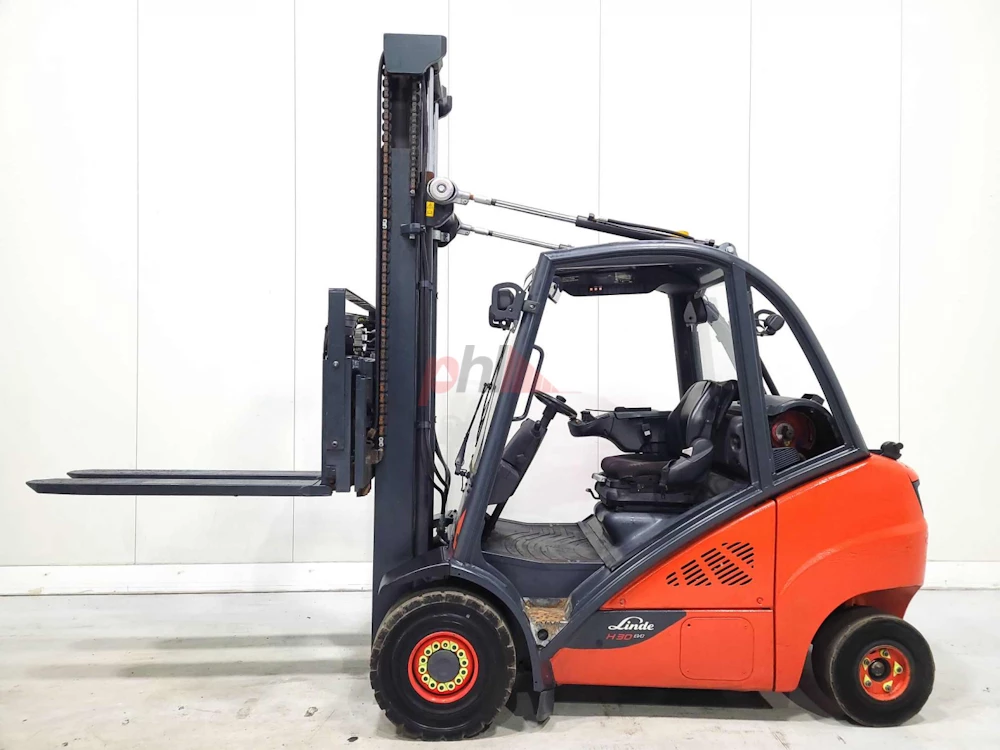

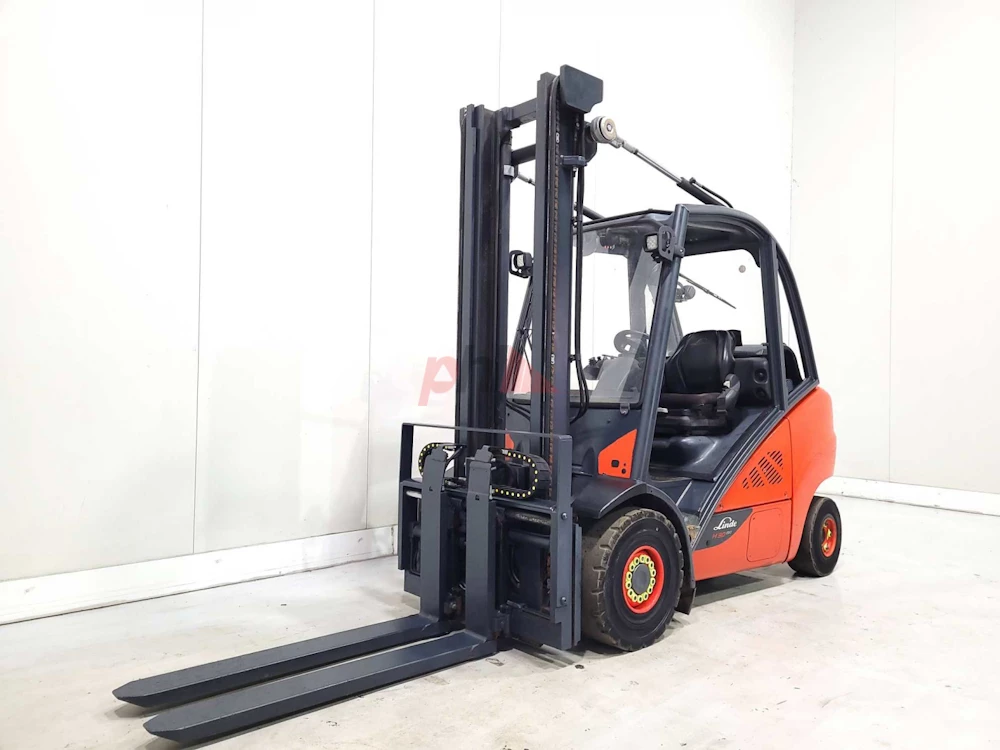

LINDE GAS
£££ Login to see price Register for a trade account Model H30T-02
Year 2019
Euromast 2W395
Hours 4315
Capacity 3000 kg
Lift height 3950
Download
Share
Further Vehicle Details
Specification:
Type GAS
Make LINDE
Valves
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 1930 mm
Weights
Service weight (Total weight ) 4535 kg
Axle load without load (front/rear) 1950/2270 kg
Axle load with load (front/rear) 6380/800 kg
Wheels
Tyres type Superelastic
Tyres front condition 70%
Tyres rear condition 60%
Tyre size front 27X10-12 mm
Tyre size rear 23X9-10 mm
Track width front (b10) 1008 mm
Track width rear (b11) 932 mm
Dimensions
Mast or fork carrage tilt (alpha,beta) 5/8 grad
Lift height (h3) 3950 mm
Extended height (h4) 4800 mm
Height of overhead guard (cabin) (h6) 2110 mm
Overall length (l1) 4000 mm
Length to fork face (l2) 2800 mm
Overall width (b1/b2) 1256 mm
Forks length (l) 1200 mm
Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1150 mm
Ground clearance, mast (m1) 119 mm
Ground clearance, centre of wheelbase (m2) 173 mm
Turning radius (Wa) 2444 mm
Ast across 1000x1200 (Ast) 4089 mm
Ast along 800x1200 (Ast) 4289 mm
Towing coupling height (h10) 698 mm
Collapsed height (h1) 2200 mm
Seat/stand height (h7) 1105 mm
Forks height (s) 50 mm
Forks width (e) 120 mm
Performance
Travel speed (With, w/o load) 22 km/h
Lifting speed (With, w/o load) 0.47/0.48 m/s
Lowering speed (With, w/o load) 0.52/0.54 m/s
Climbing ability (30 min rating - with, w/o load) 27/30 %
Acceleration time (With, w/o load) 6.1/5.3 sec
Service brake hydrostatic
Drive
Battery voltage/capacity 12V V/Ah
Other
Noise level 76 dB
Working pressure 170 bar
Oil flow (For attachments) 32 l/min
Traction control HYDROSTATIC TRANSMISSION
Attachment

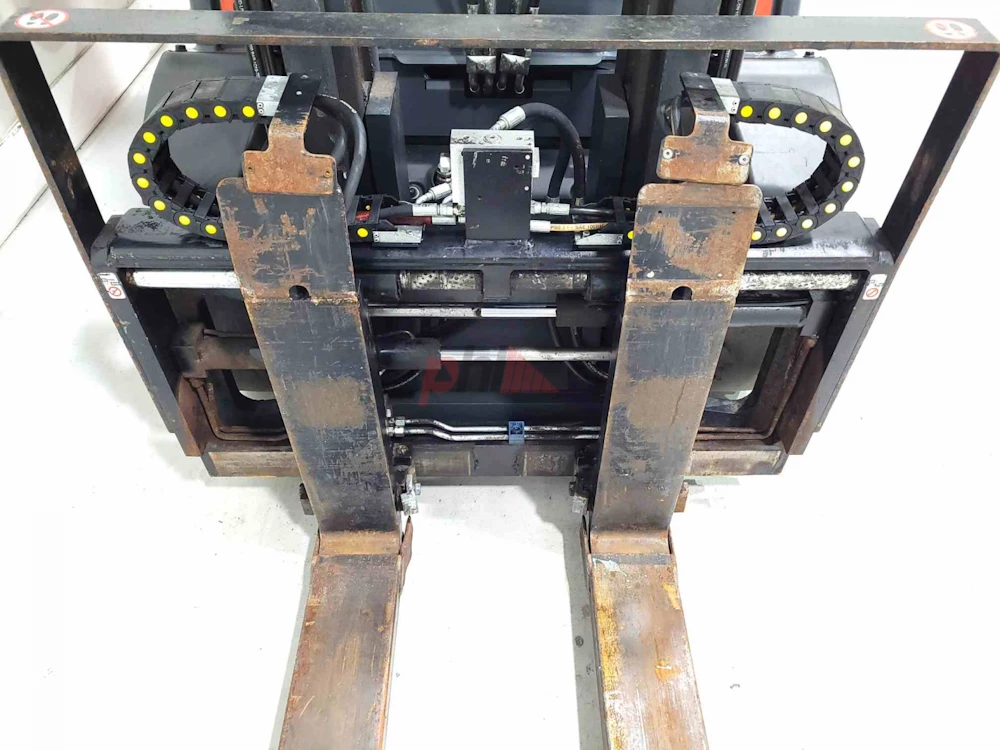

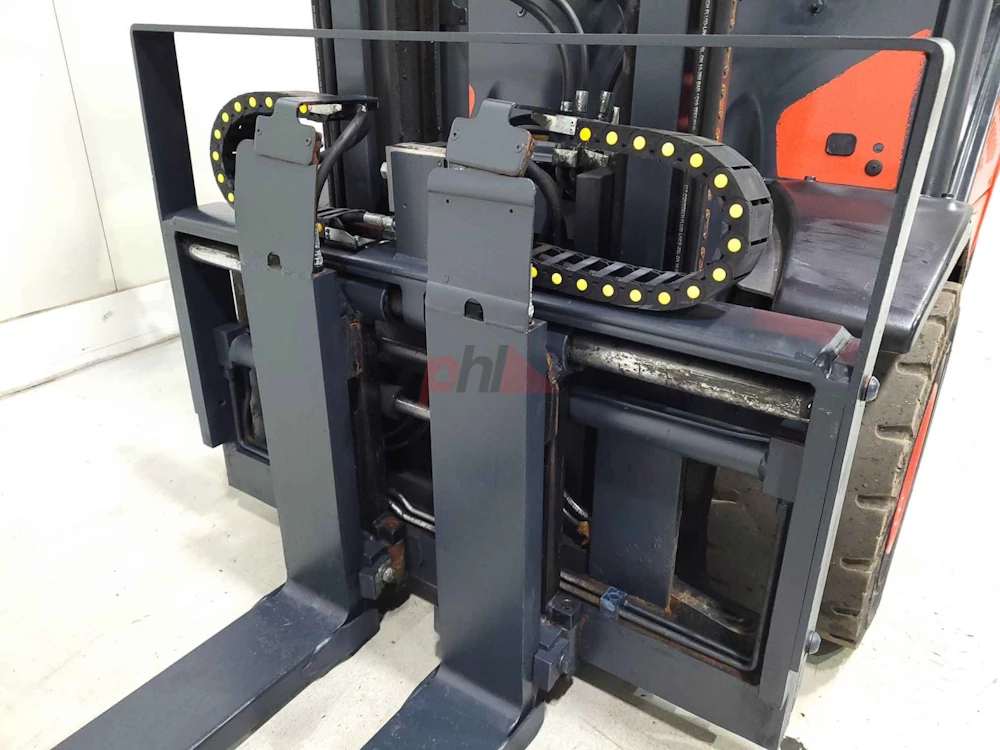

Attachment type (Attachment type) Fork positioners

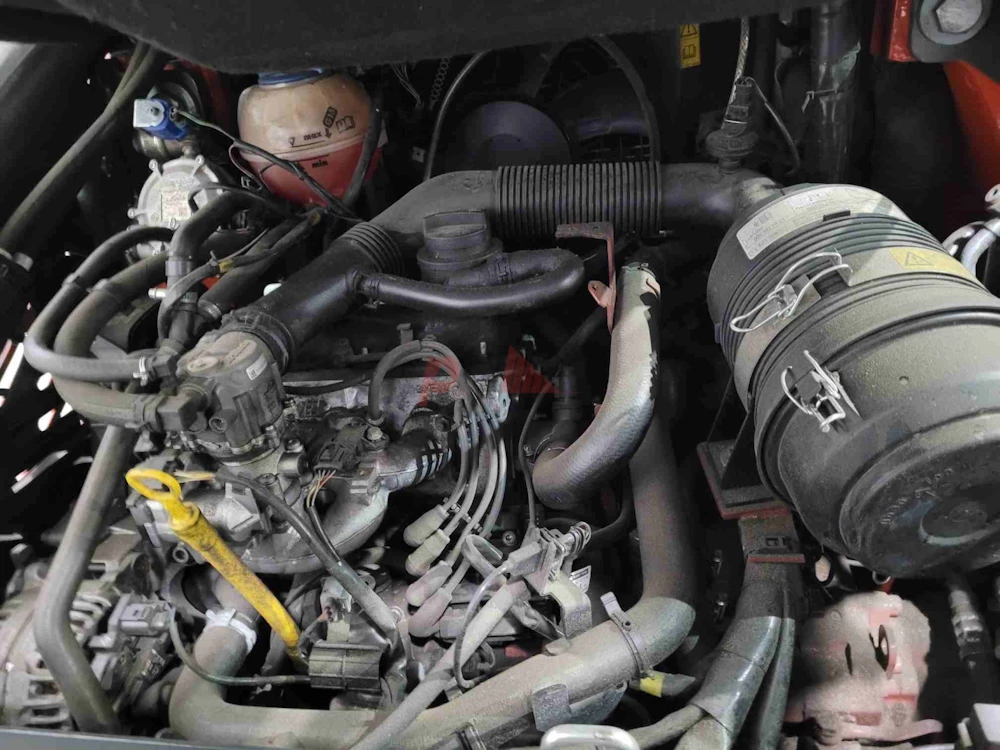

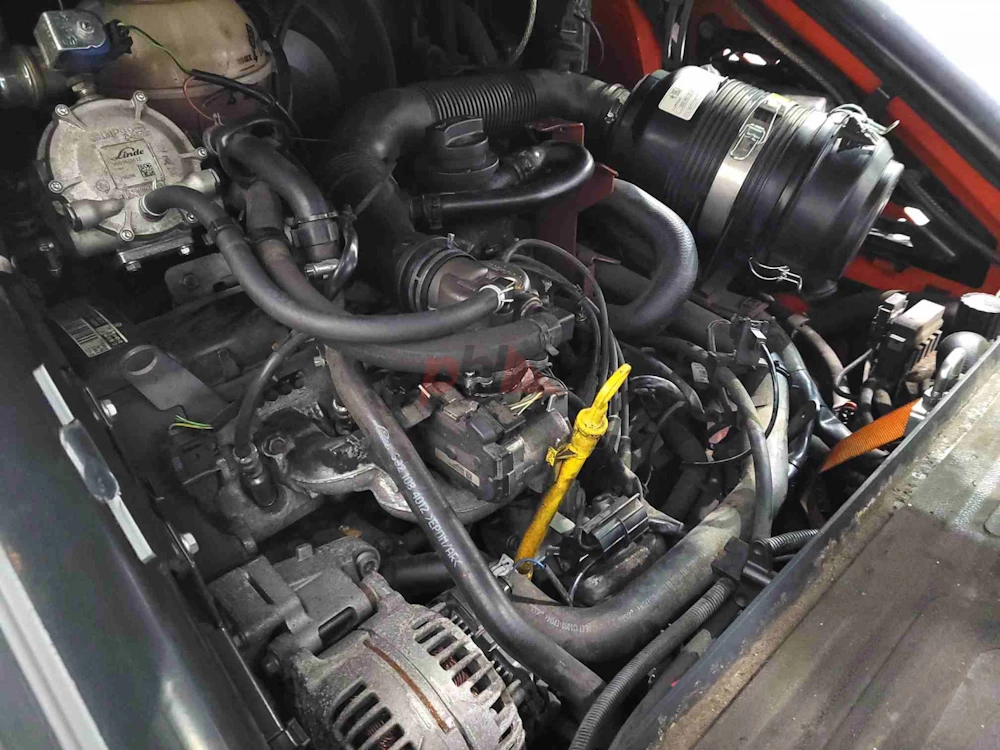

Engine
Manufacturer of engine/type VW/BEF
Engine rated power (ISO 1585) 39 kW
Rated rpm 2600 rpm
Cylinders/Displac. ccm 4/1984
Fuel consumption (VDI) 2.3/3.0 l/h
Engine type (Engine type) gas
Extras
Extras SS,LIGHTS, DD Forks + Positioners
Extras Hyds 3rd & 4th
