Further Vehicle Details
Specification:
Type ELECTRIC
Make LINDE
Valves 3
Character.
Load Centre (c) 600 mm

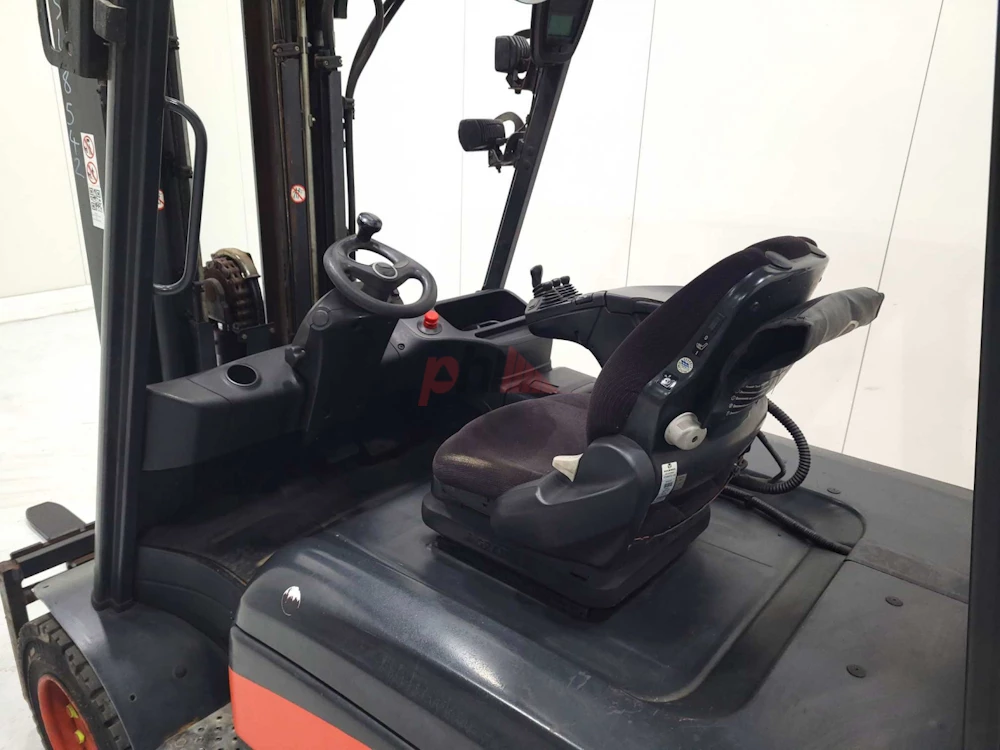

Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 8702 kg
Wheels
Tyres type Superelastic
Tyres front condition 65%
Tyres rear condition 15%
Dimensions
Lift height (h3) 4370 mm
Extended height (h4) 5325 mm
Height of overhead guard (cabin) (h6) 2330 mm
Overall length (l1) 4965 mm
Length to fork face (l2) 3000 mm
Overall width (b1/b2) 1445 mm
Forks length (l) 1965 mm
Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1350 mm
Collapsed height (h1) 2340 mm
Forks height (s) 60 mm
Forks width (e) 130 mm
Auxiliary lift (h9) 1520 mm
Performance
Service brake hydrostatic
Drive
Battery weight 2287 kg
Drive motor (60 min rating) 2 X 12.5 kW
Battery class British Standard
Battery voltage/capacity 80V / 930Ah V/Ah
Battery (Acc. to DIN) GNB MARATHON CLASSIC
Attachment

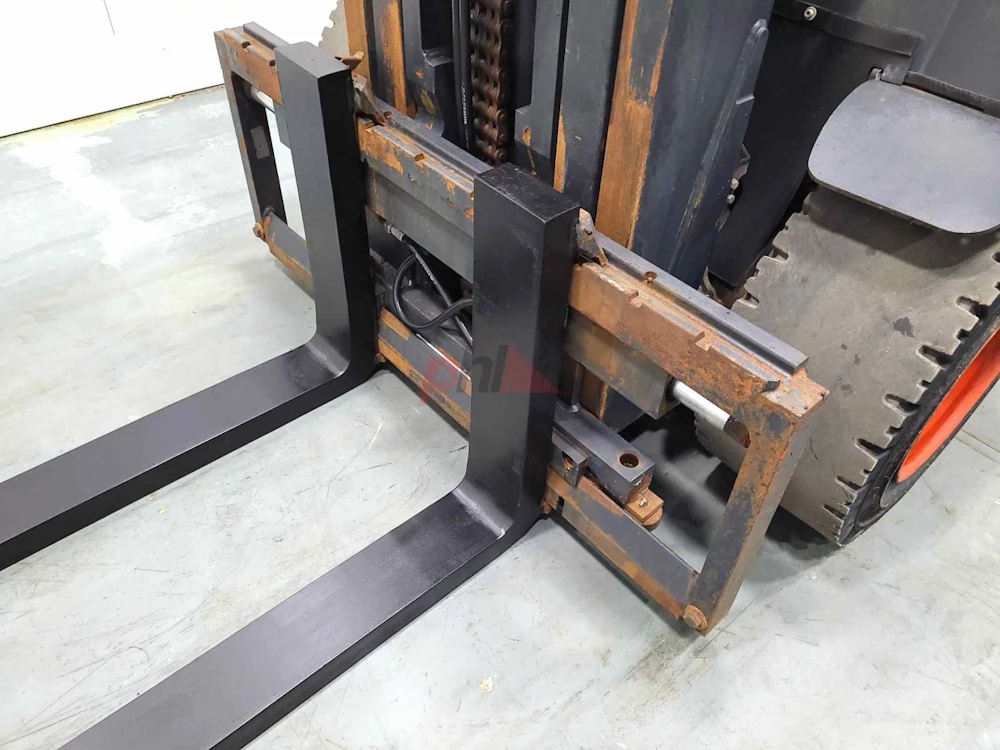

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, LED Lights, Blue Spot.
Extras Hyds 3rd

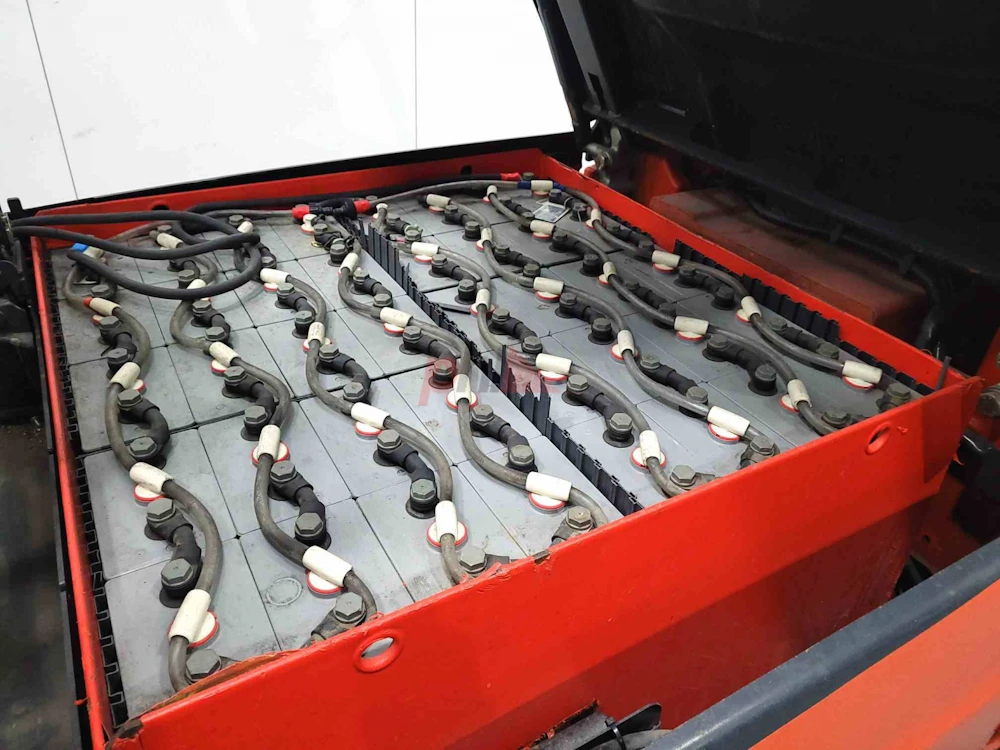

Battery
Battery Serial No 0201447792
Battery Year (Battery Year of Manufacture) 2017
