Further Vehicle Details
Specification:
Type ELECTRIC
Make LINDE
Valves 3
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 5360 kg
Wheels
Tyres type Superelastic
Tyres front condition 80%
Tyres rear condition 15%
Dimensions
Lift height (h3) 4705 mm
Extended height (h4) 5525 mm
Height of overhead guard (cabin) (h6) 2070 mm
Overall length (l1) 3600 mm
Length to fork face (l2) 2500 mm
Overall width (b1/b2) 1800 mm
Forks length (l) 1100 mm
Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1170 mm
Collapsed height (h1) 2225 mm
Auxiliary lift (h9) 1550 mm
Performance
Service brake hydrostatic
Drive

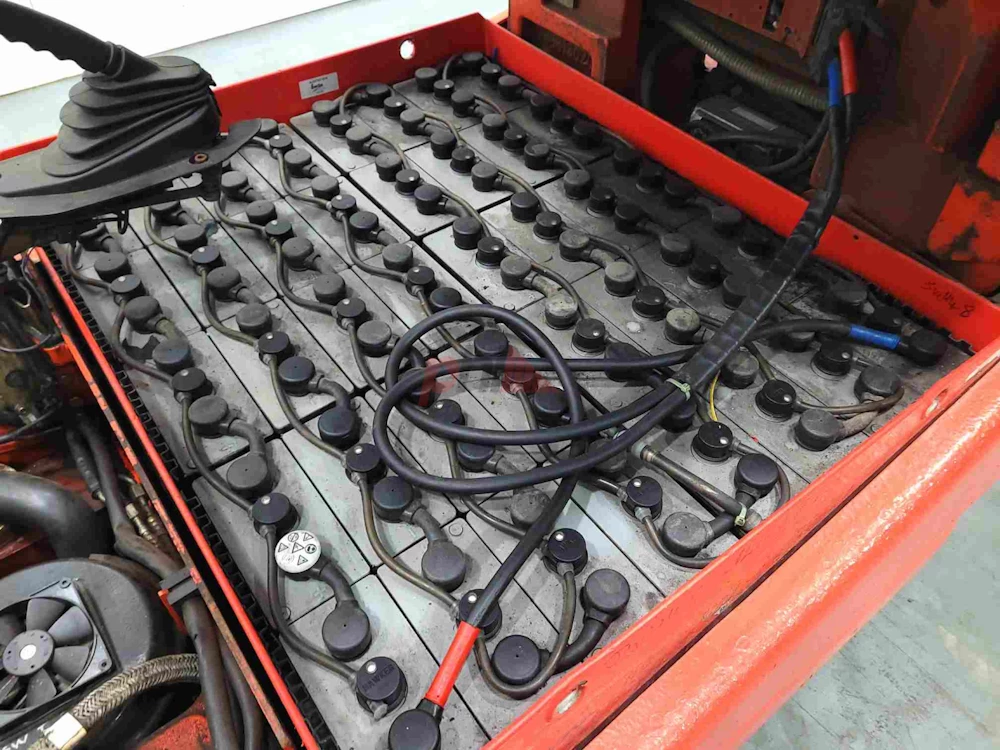

Battery weight 1531 kg
Battery class British Standard
Battery voltage/capacity 80 / 775Ah V/Ah
Battery (Acc. to DIN) HAWKER
Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, Full Cab, Non-Marking Tyres, Lights.
Extras Hyds 3rd
Battery
Battery Year (Battery Year of Manufacture) 2011
