Stock No: 328057

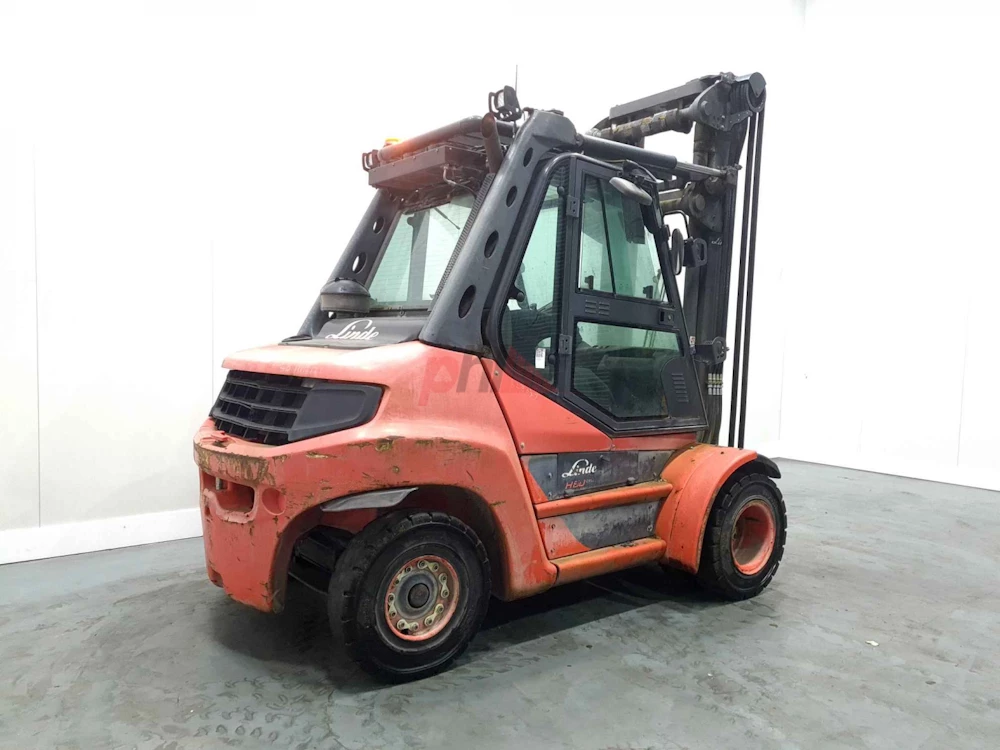

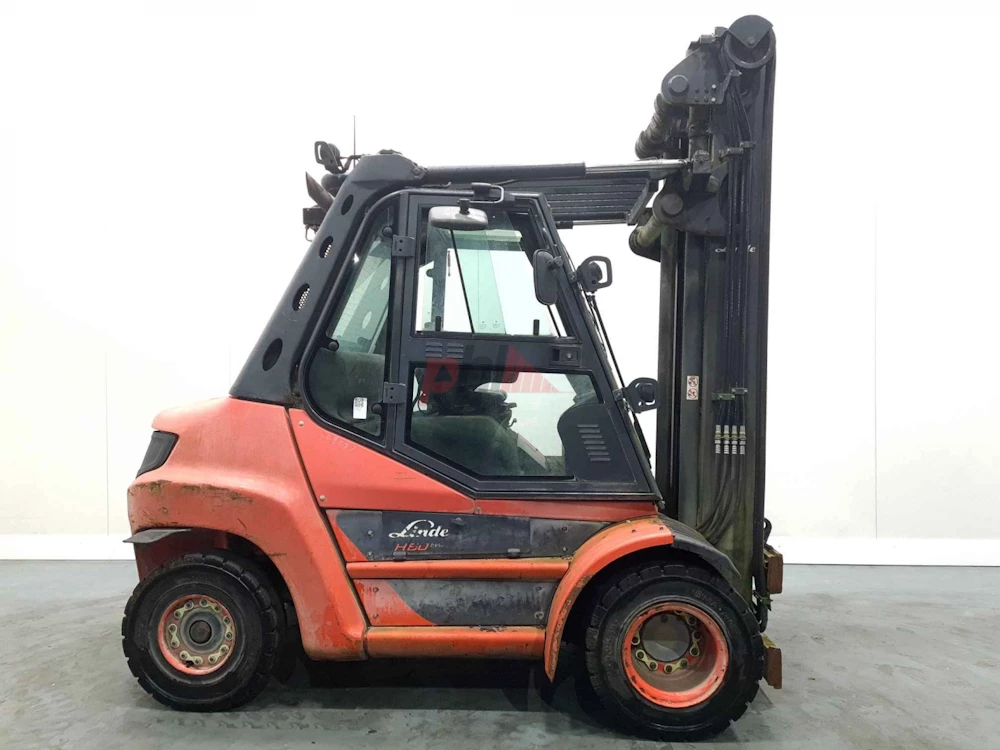

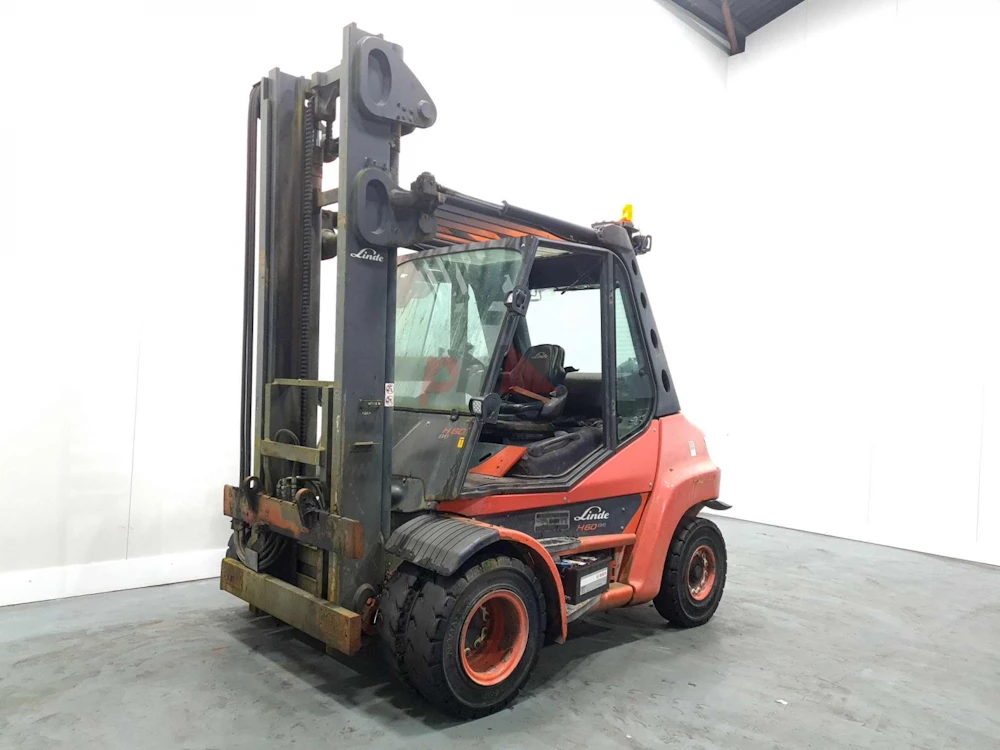

LINDE DIESEL

£££ Register for a trade account
Model H60D-03 396
Year 2017
Euromast 2W445
Hours 11556
Capacity 6000 kg
Lift height 4550
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type DIESEL
Make LINDE
Valves

Character.

Load Centre (c) 600 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 2160 mm

Weights

Service weight (Total weight ) 10520 kg
Axle load without load (front/rear) 4672/5210 kg
Axle load with load (front/rear) 13981/1884 kg

Wheels

Tyres type Superelastic
Tyres front condition 65%
Tyres rear condition 60%
Tyre size front 355/65-15 mm
Tyre size rear 8.25-15 mm
Track width front (b10) 1599 mm
Track width rear (b11) 1600 mm

Dimensions

Mast or fork carrage tilt (alpha,beta) 6/10 grad
Lift height (h3) 4550 mm
Height of overhead guard (cabin) (h6) 2730 mm
Overall length (l1) 4600 mm
Length to fork face (l2) 3400 mm
Overall width (b1/b2) 1948 mm

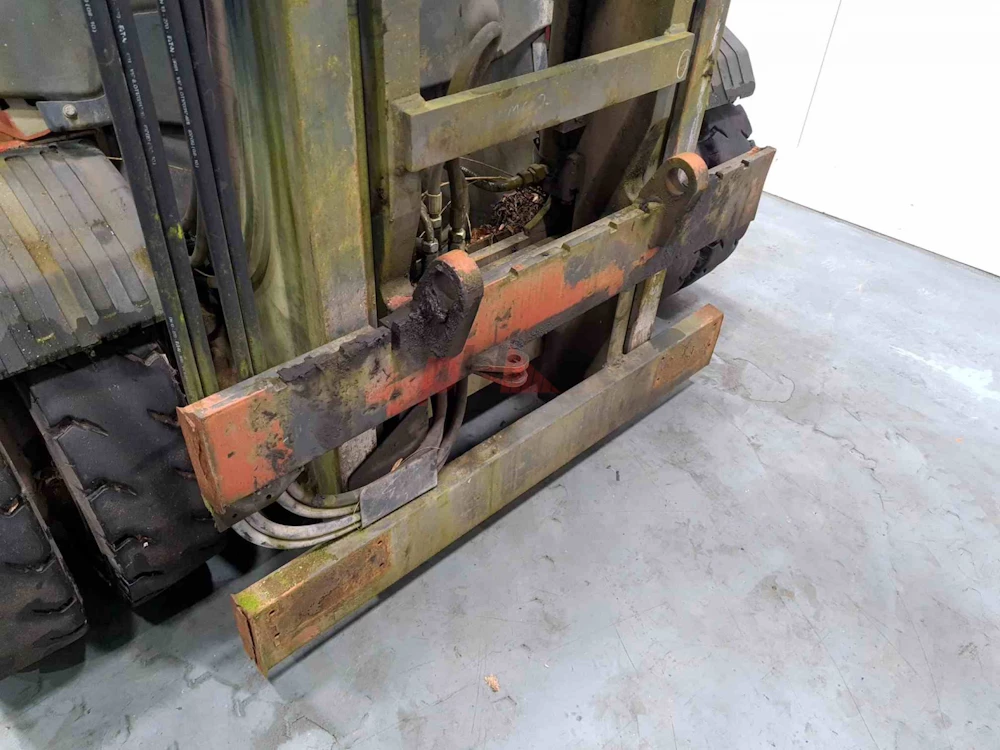

Fork carriage (class) DIN 15173 / 4A
Fork carriage width (b3) 1800 mm
Ground clearance, mast (m1) 153 mm
Ground clearance, centre of wheelbase (m2) 235 mm
Turning radius (Wa) 3060 mm
Ast across 1000x1200 (Ast) 4850 mm
Ast along 800x1200 (Ast) 5050 mm
Towing coupling height (h10) 810 mm
Collapsed height (h1) 3200 mm
Seat/stand height (h7) 1432 mm
Forks width (e) 155 mm

Performance

Travel speed (With, w/o load) 22 km/h
Lifting speed (With, w/o load) 0.53 m/s
Lowering speed (With, w/o load) 0.50 m/s
Climbing ability (30 min rating - with, w/o load) 22/31 %
Acceleration time (With, w/o load) 5.1/4.6 sec
Service brake hydrostatic

Drive

Drive motor (60 min rating) 85 kW
Battery voltage/capacity 12V V/Ah

Other

Noise level 78 dB
Working pressure 265 bar
Oil flow (For attachments) 70 l/min
Traction control HYDROSTIC

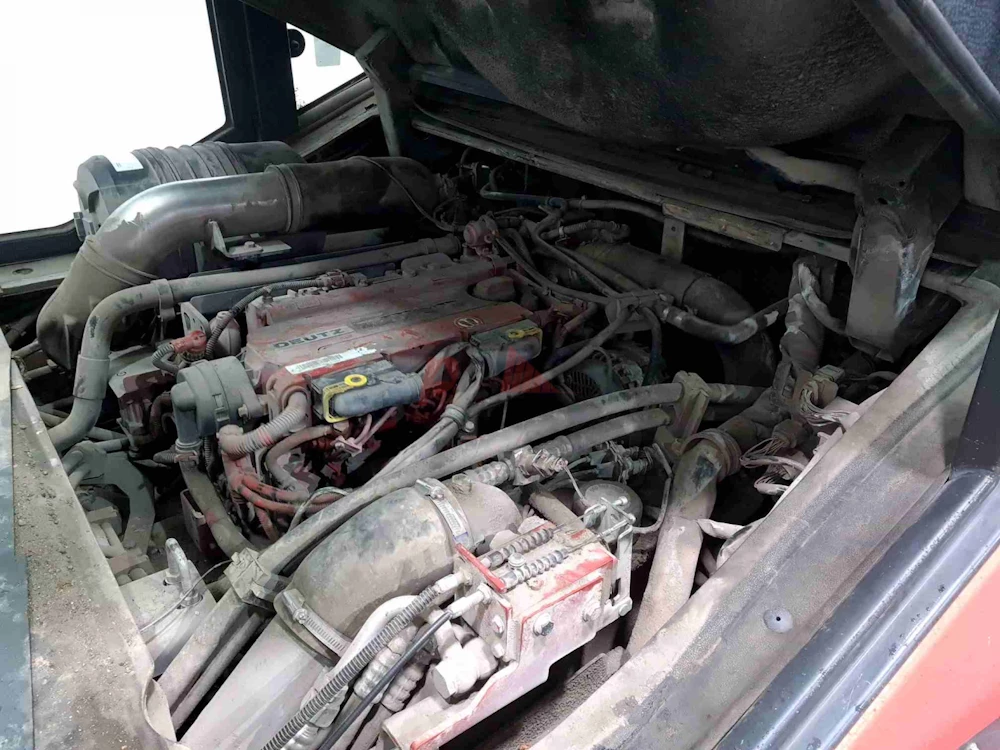

Engine

Manufacturer of engine/type DEUTZ / TCD 4.1 L4
Engine rated power (ISO 1585) 85 kW
Rated rpm 2200 rpm
Cylinders/Displac. ccm 6 Cylinders / 4038ccm
Engine type (Engine type) diesel

Extras

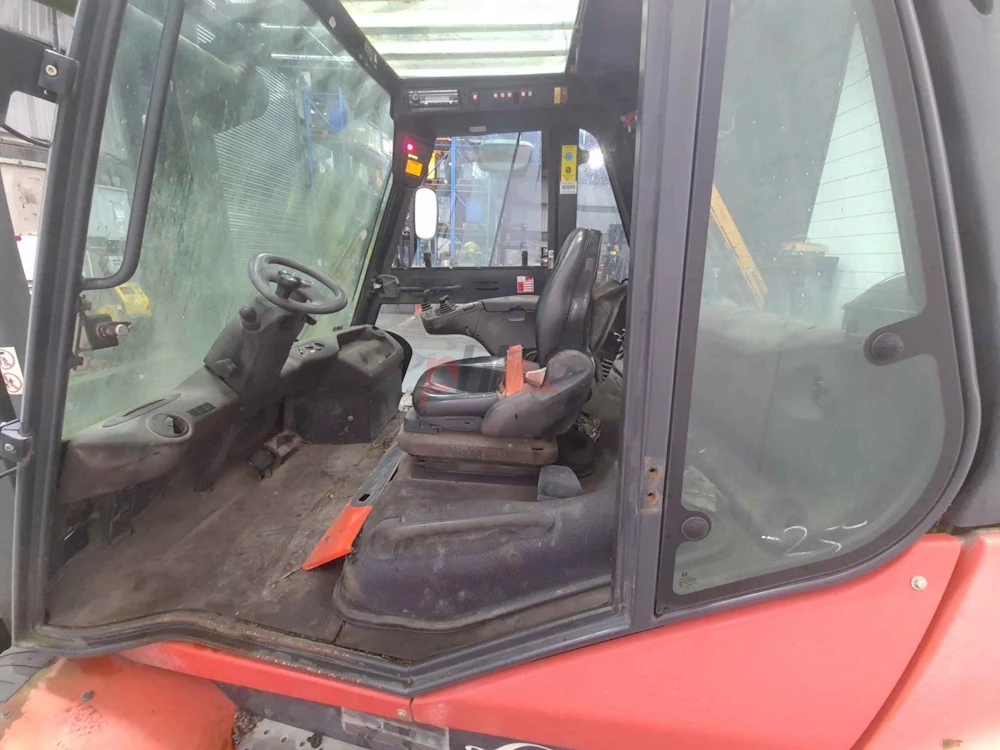

Extras Full Cab, LED Lights.
Extras Hyds 3rd & 4th
