Stock No: 324461

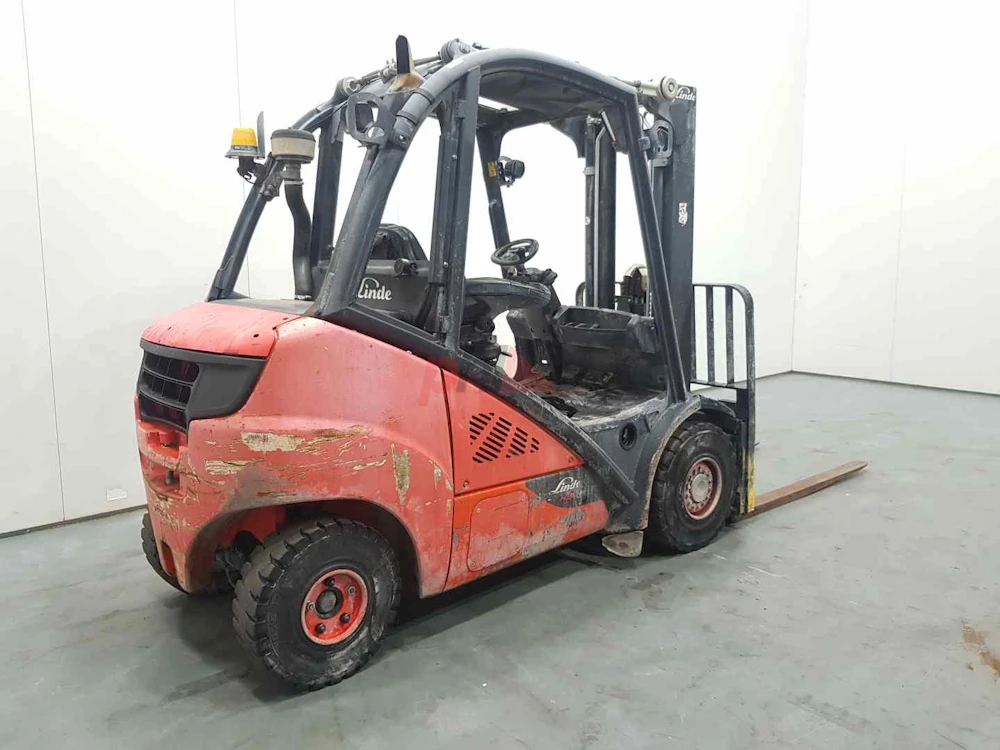

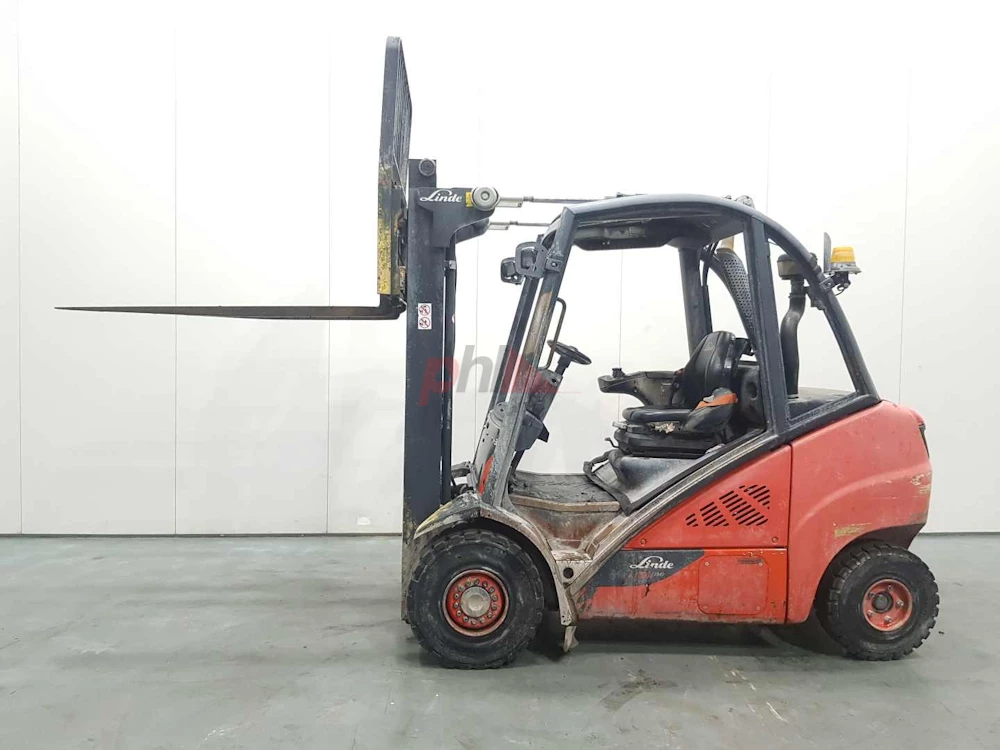

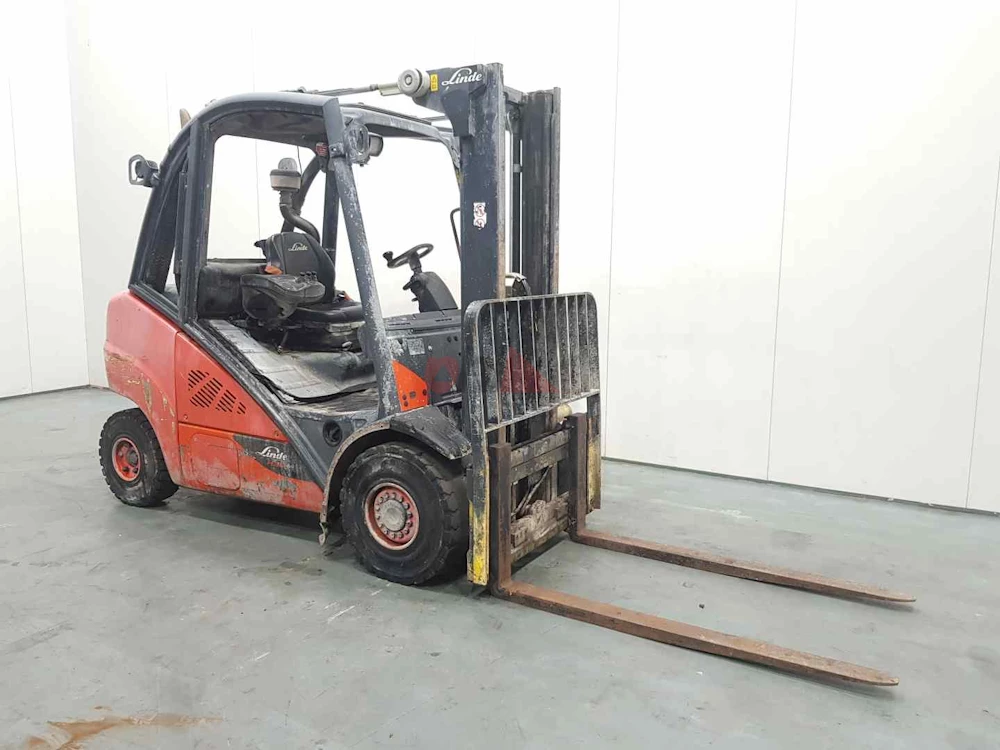

LINDE DIESEL

£££ Register for a trade account
Model H30D-02 393
Year 2016
Euromast 2F321
Hours 11327
Capacity 3000 kg
Lift height 3210
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type DIESEL
Make LINDE
Valves 3

Character.

Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Wheelbase (y) 1785 mm

Weights

Service weight (Total weight ) 4725 kg
Axle load without load (front/rear) 2285/2610 kg
Axle load with load (front/rear) 7105/985 kg

Wheels

Tyres type Superelastic
Tyres front condition 70%
Tyres rear condition 40%
Tyre size front 28X9-15 mm
Tyre size rear 23X9-10 mm
Track width front (b10) 1053 mm
Track width rear (b11) 932 mm

Dimensions

Mast or fork carrage tilt (alpha,beta) 5/9 grad
Lift height (h3) 3210 mm
Extended height (h4) 4420 mm
Height of overhead guard (cabin) (h6) 2250 mm
Overall length (l1) 3950 mm
Length to fork face (l2) 2750 mm
Overall width (b1/b2) 1200 mm
Forks length (l) 1200 mm

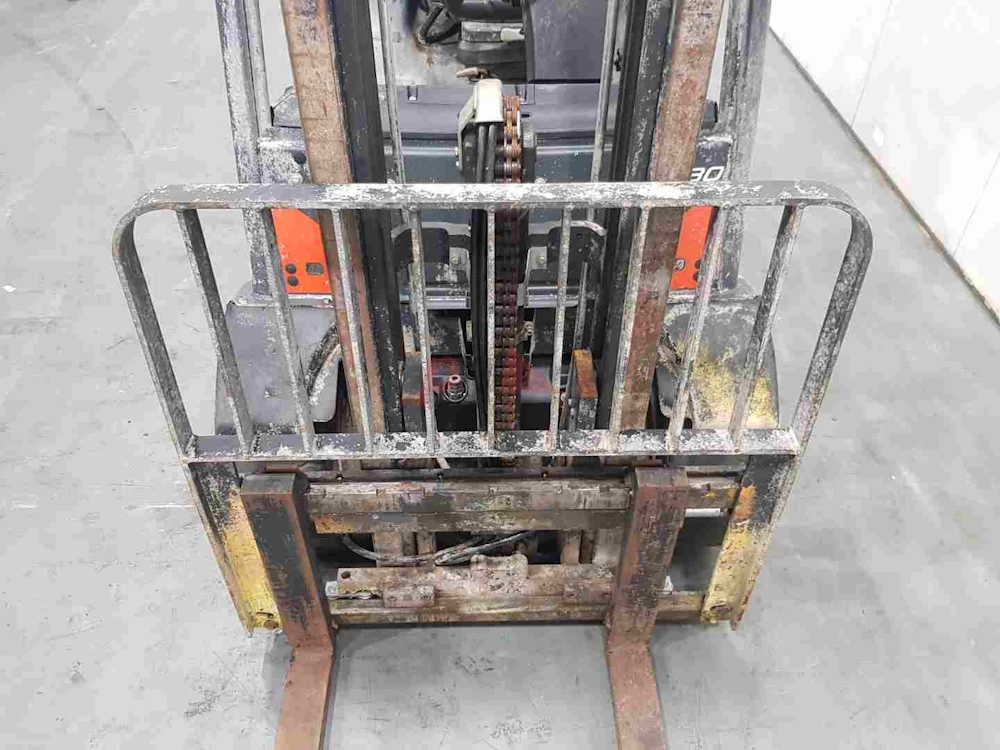

Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1160 mm
Ground clearance, mast (m1) 130 mm
Ground clearance, centre of wheelbase (m2) 160 mm
Turning radius (Wa) 2360 mm
Length of chasis (l7) 2560 mm
Ast across 1000x1200 (Ast) 4083 mm
Ast along 800x1200 (Ast) 4283 mm
Towing coupling height (h10) 650 mm
Collapsed height (h1) 2200 mm
Seat/stand height (h7) 1135 mm
Forks height (s) 50 mm
Forks width (e) 100 mm
Auxiliary lift (h9) 1620 mm

Performance

Travel speed (With, w/o load) 22/23 km/h
Lifting speed (With, w/o load) 0.52/0,57 m/s
Lowering speed (With, w/o load) 0.53/0.46 m/s
Climbing ability (30 min rating - with, w/o load) 19/30 %
Acceleration time (With, w/o load) 6.2/5.2 sec
Service brake hydrostatic

Drive

Drive motor (60 min rating) 36 kW
Battery voltage/capacity 12V V/Ah

Other

Noise level 76 dB
Working pressure 205 bar
Oil flow (For attachments) 34 l/min
Traction control HYDROSTATIC

Attachment

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

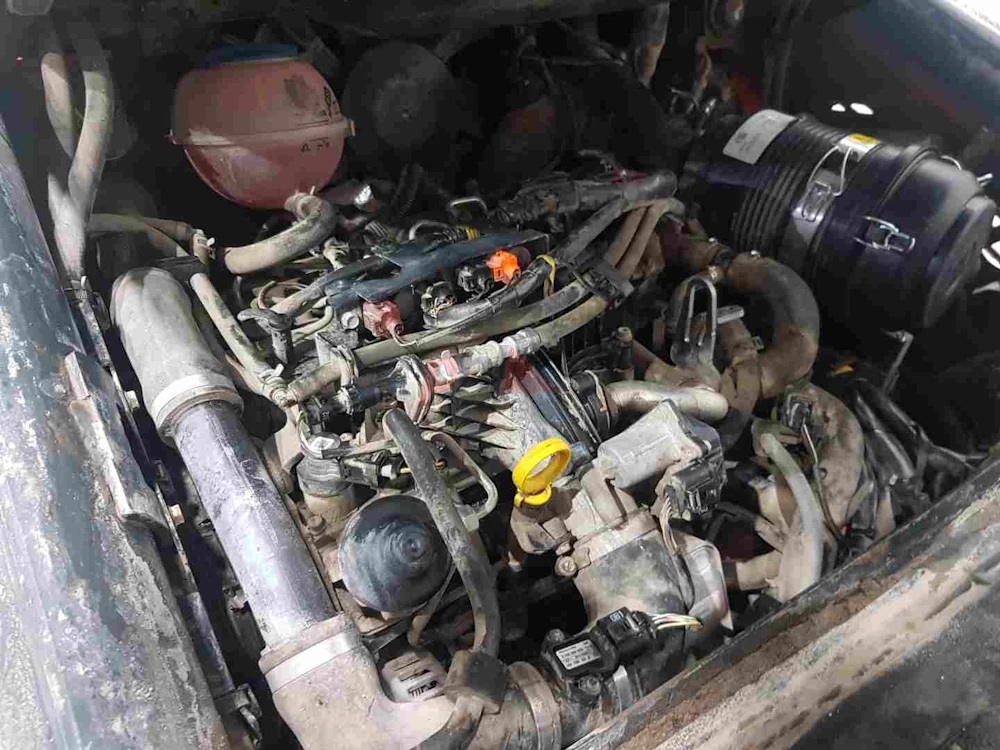

Engine

Manufacturer of engine/type VW / AUDI
Engine rated power (ISO 1585) 36 kW
Cylinders/Displac. ccm 4 Cylinders.
Engine type (Engine type) diesel

Extras

Extras SS, LED Lights.
Extras Hyds 3rd
