Stock No: 378849

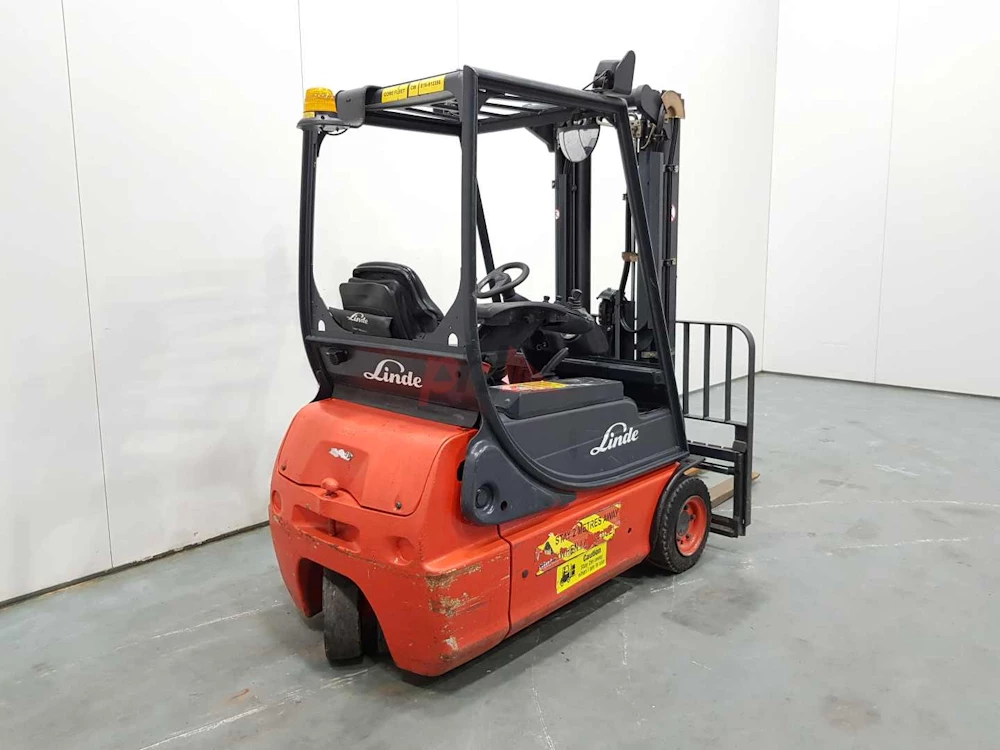

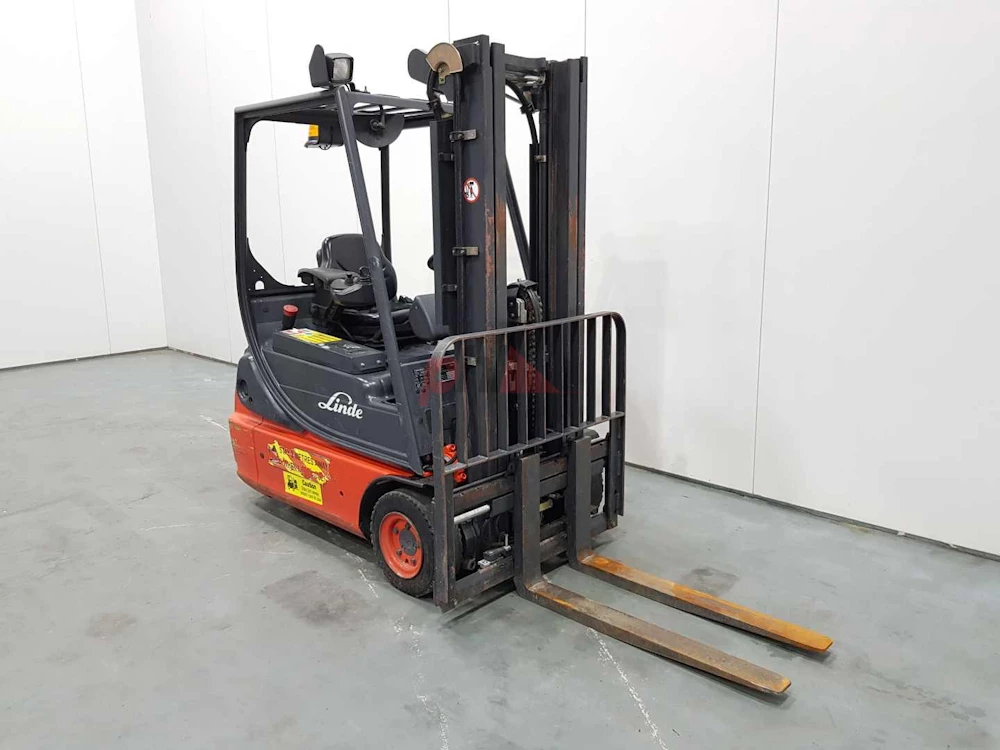

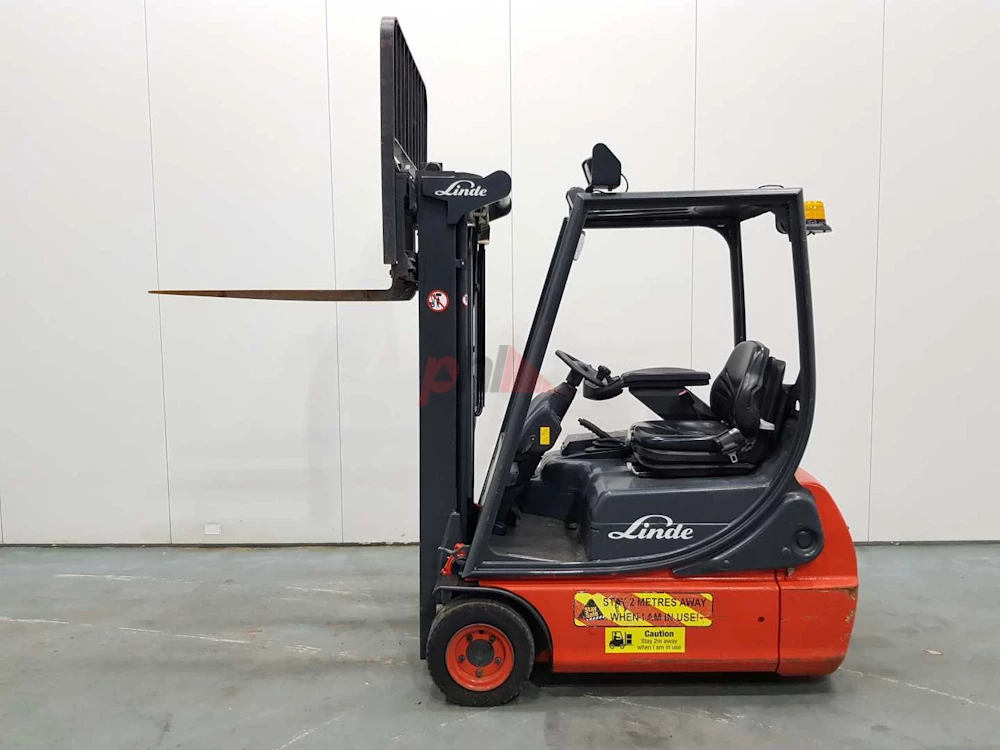

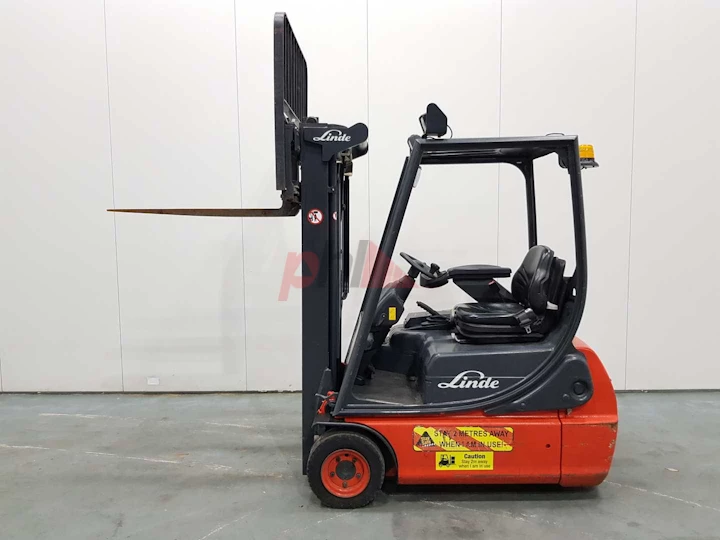

LINDE 3 WHEEL

££ Register for a trade account
Model E16C-02
Year 2006
Euromast 3F445
Hours 2363
Capacity 1600 kg
Lift height 4450
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type 3 WHEEL
Make LINDE
Valves 3

Character.

Load Centre (c) 365 mm

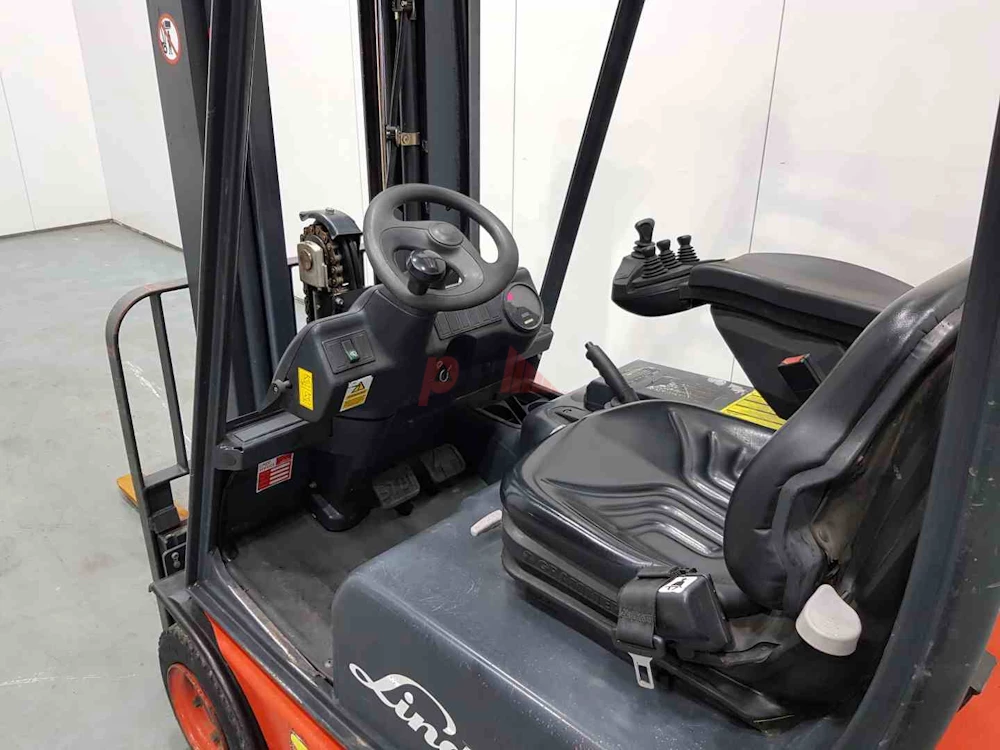

Operating mode (Characteristic) Seated
Wheelbase (y) 1301 mm
Load distance (x) 500 mm

Weights

Service weight (Total weight ) 3251 kg
Axle load without load (front/rear) 1427/1628 kg
Axle load with load (front/rear) 4091/564 kg

Wheels

Tyres type Superelastic
Tyres front condition 15%
Tyres rear condition WORN
Tyre size front 18 x 7 - 8 mm
Tyre size rear 15 x 4 1/2 - 8 mm
Track width front (b10) 930 mm
Track width rear (b11) 168 mm
Wheels (front/rear (x=driven)) 2x/2

Dimensions

Lift height (h3) 4450 mm
Height of overhead guard (cabin) (h6) 1970 mm
Overall length (l1) 2746 mm
Length to fork face (l2) 1846 mm
Overall width (b1/b2) 1090/1050 mm
Forks length (l) 1000 mm
Fork carriage (class) DIN 15173 / 2A
Ground clearance, mast (m1) 89 mm
Ground clearance, centre of wheelbase (m2) 96 mm
Turning radius (Wa) 1505 mm
Ast across 1000x1200 (Ast) 3196 mm
Ast along 800x1200 (Ast) 3320 mm
Collapsed height (h1) 2100 mm
Seat/stand height (h7) 908 mm
Forks height (s) 40 mm
Forks width (e) 80 mm

Performance

Travel speed (With, w/o load) 16/16 km/h
Lifting speed (With, w/o load) 0.4/0.6 m/s
Lowering speed (With, w/o load) 0.58/0.47 m/s
Acceleration time (With, w/o load) 4.5/4.0 sec
Service brake hydrostatic
Drawbar pull (60 min rating (w./wo. load)) 2300/2300 N
Maximum drawbar pull (With, w/o load) 9200/9200 N
Gradeability (With, W/o load) 6.7/10.3 %

Drive

Battery weight 896 kg
Drive motor (60 min rating) 2x4.6 kW
Lift motor (15% rating) 10 kW
Battery voltage/capacity 48V / 430Ah V/Ah
Energy consumption (VDI cycle) 6.4 kW/h
Battery (Acc. to DIN) CHLORIDE

Other

Noise level <65 dB
Oil flow (For attachments) 32 l/min

Attachment

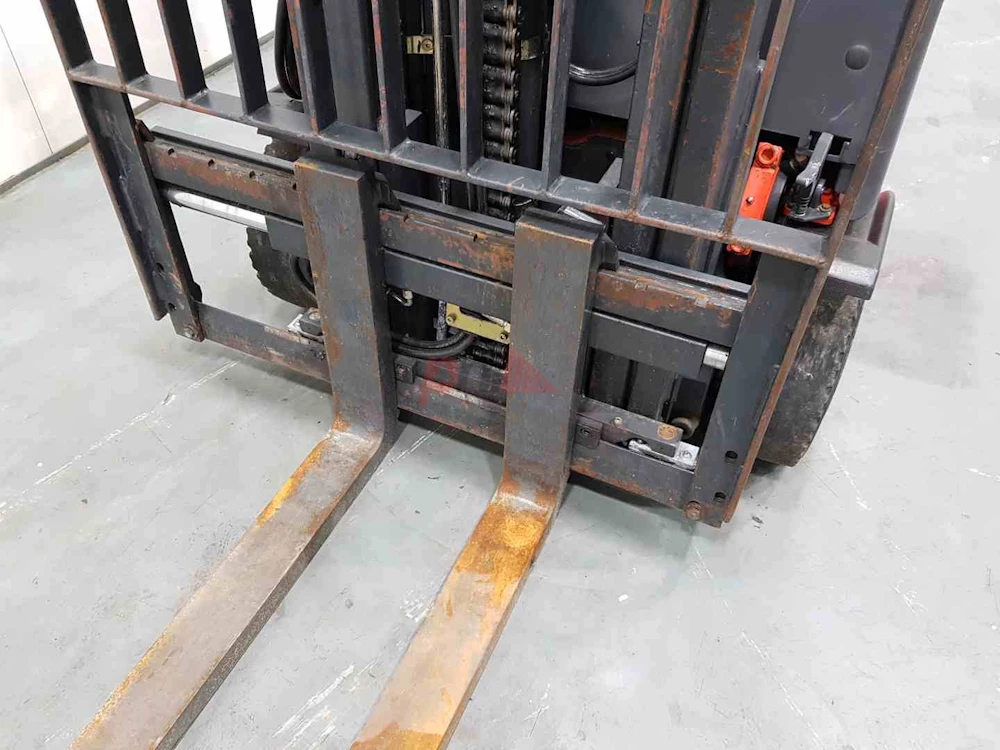

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

Engine

Engine type (Engine type) electric

Extras

Extras SS, Lights
Extras Hyds 3rd
To carriage 1

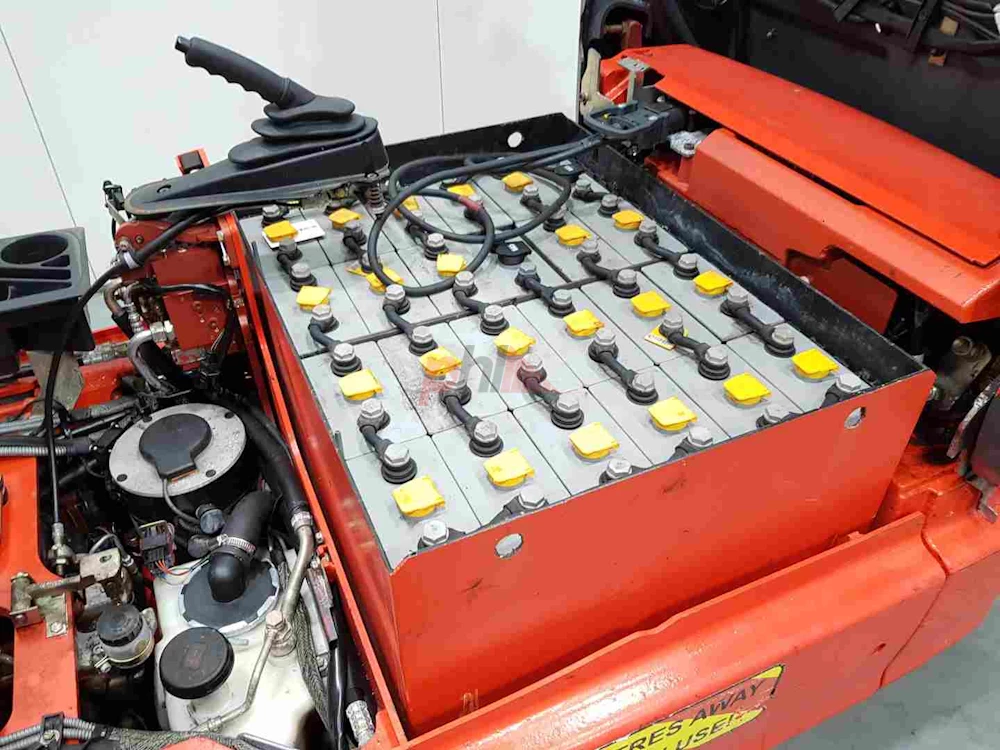

Battery

Battery Serial No 1G 1137330 F6
