Stock No: 456854

JUNGHEINRICH REACH

££ Register for a trade account
Model ETV216
Year 0
Euromast 3F992
Hours 25709
Capacity 1600 kg
Lift height 9920
Enquire about this vehicle Enquire via WhatsApp

Further Vehicle Details


Specification:

Type REACH
Make JUNGHEINRICH
Valves

Character.

Load Centre (c) 600 mm
Operating mode (Characteristic) Seated

Weights

Service weight (Total weight ) 3796 kg

Wheels

Tyres type Polyurethane

Dimensions

Free lift (h2) 3380 mm
Lift height (h3) 9920 mm
Extended height (h4) 10920 mm
Height of overhead guard (cabin) (h6) 2120 mm
Height of reach legs (h8) 290 mm
Overall length (l1) 2495 mm
Length to fork face (l2) 1350 mm
Overall width (b1/b2) 1280 mm
Forks length (l) 1145 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 800 mm
Width between legs (b4) 930 mm
Reach travel (l4) 495 mm
Length of chasis (l7) 1700 mm
Collapsed height (h1) 3820 mm
Forks height (s) 40 mm
Forks width (e) 120 mm

Performance

Service brake electromagnetic

Drive

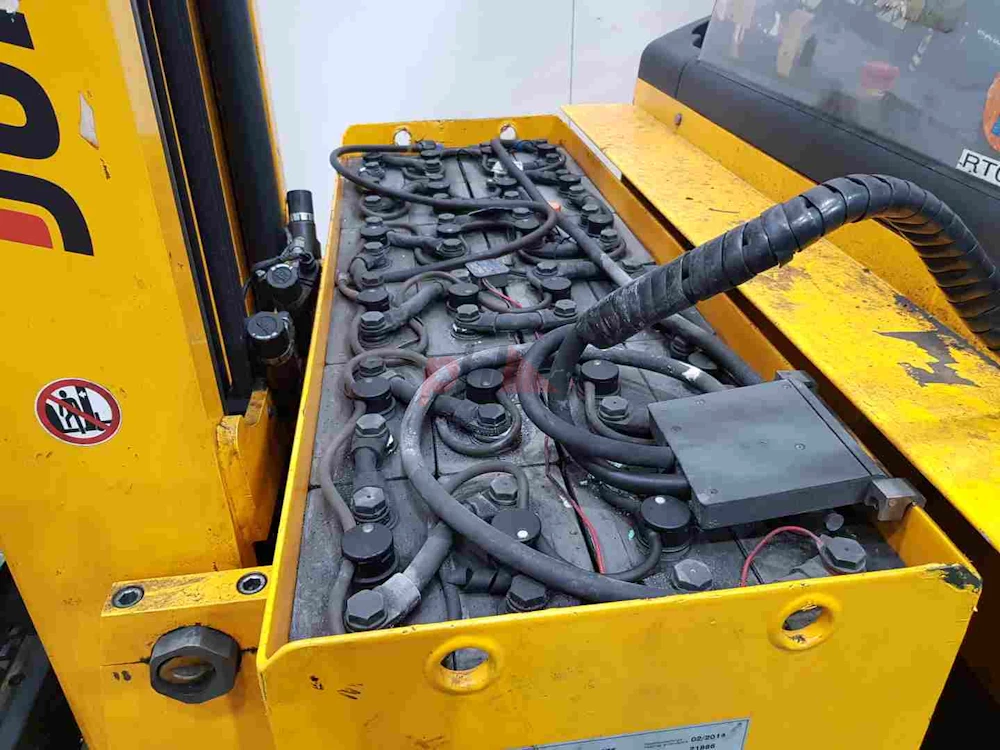

Battery weight 986 kg
Drive motor (60 min rating) 4,5 kW
Battery class British Standard
Battery voltage/capacity 48V / 620Ah V/Ah
Battery (Acc. to DIN) JUNGHEINRICH

Attachment

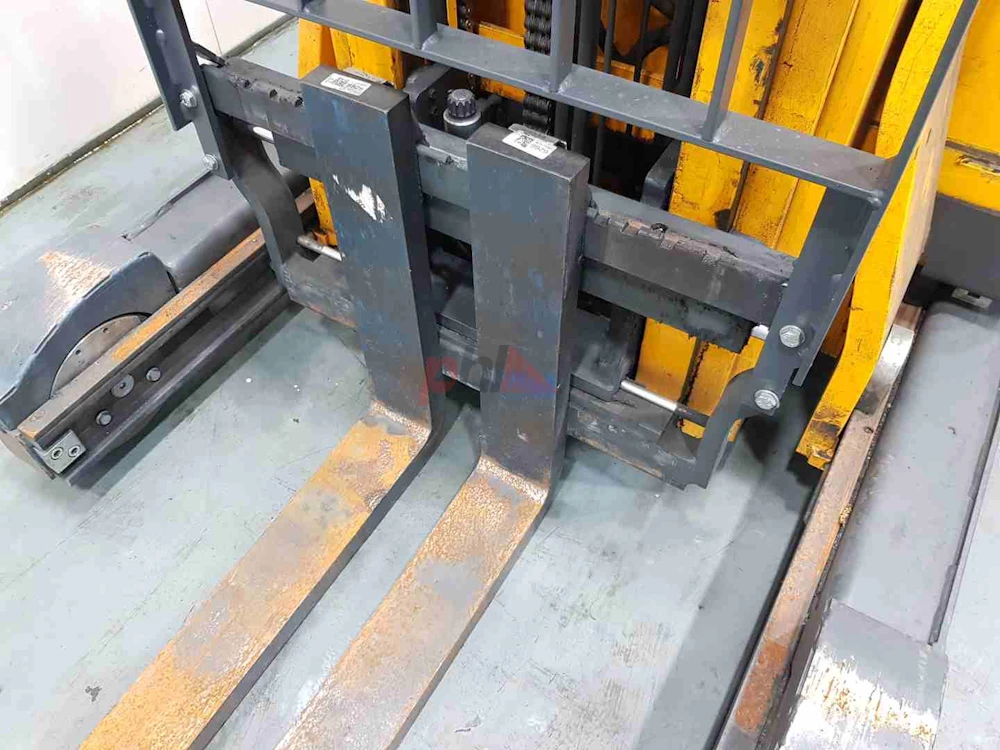

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts

Engine

Engine type (Engine type) electric

Extras

Extras SS, LED Lights, Red Spot.
Extras Hyds 3rd & 4th

Battery

Battery Year (Battery Year of Manufacture) 2014
