JUNGHEINRICH REACH
REACH • Stock No: 484028 £££
Login to see price Model ETV325
Year 2015
Euromast 3F1202
Hours 6103
Capacity 2500 kg
Lift height 12020
Back to search results
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
![JUNGHEINRICH REACH]()
Stock No: 450559 Enquire about this vehicle Enquire via
JUNGHEINRICH REACH
££ Login to see price Register for a trade account Model ETV325
Year 2015
Euromast 3F1202
Hours 21127
Capacity 2500 kg
Lift height 12020
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make JUNGHEINRICH
Valves
Character.
Load Centre (c) 500-700 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 5177 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 4140 mm
Lift height (h3) 12020 mm
Extended height (h4) 13005 mm
Height of overhead guard (cabin) (h6) 2170 mm
Height of reach legs (h8) 360 mm
Overall length (l1) 2495 mm
Length to fork face (l2) 1500 mm
Overall width (b1/b2) 1350 mm
Forks length (l) 995 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 830 mm
Width between legs (b4) 940 mm
Reach travel (l4) 585 mm
Length of chasis (l7) 2100 mm
Collapsed height (h1) 4710 mm
Forks height (s) 50 mm
Forks width (e) 140 mm
Performance
Service brake electromagnetic
Drive
Battery weight 1371 kg
Drive motor (60 min rating) 6,9 kW
Battery class British Standard

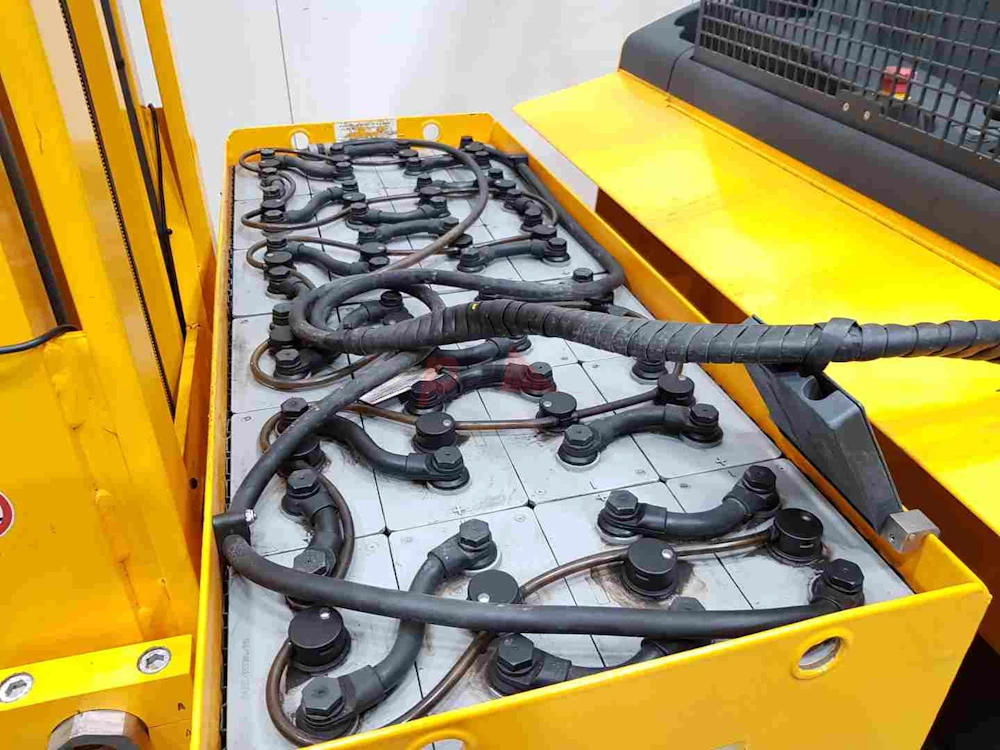

Battery voltage/capacity 48V / 930Ah V/Ah
Battery (Acc. to DIN) TRIATHLON
Attachment

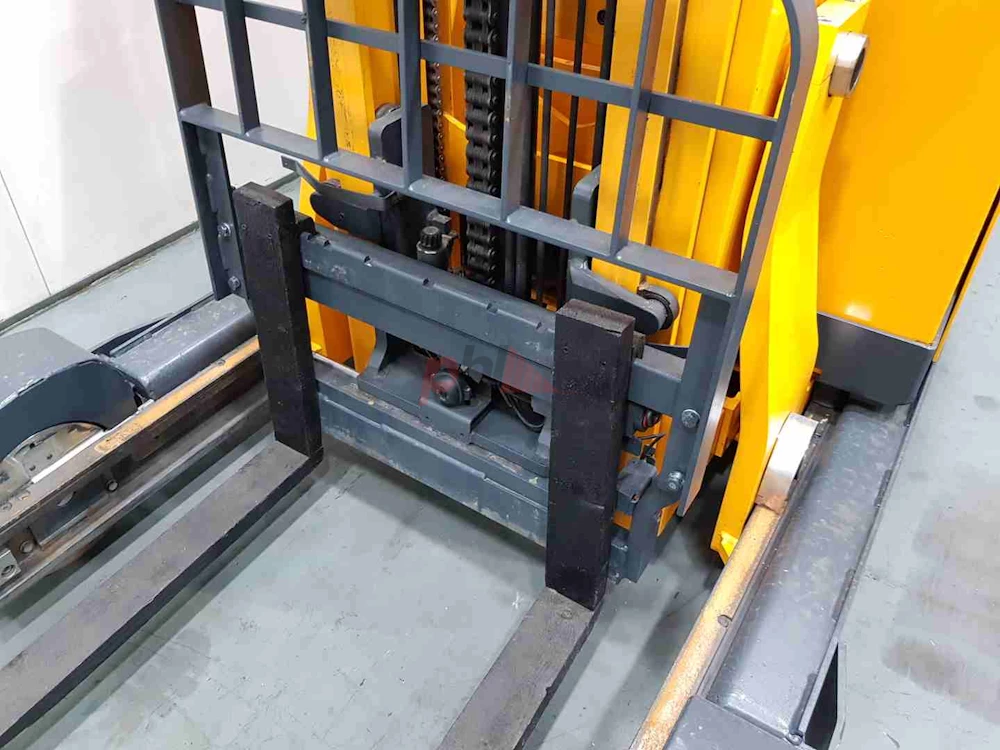

Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS, CCTV.
Extras Hyds 3rd & 4th
Battery
Battery Year (Battery Year of Manufacture) 2022
