Further Vehicle Details
Specification:
Type DIESEL

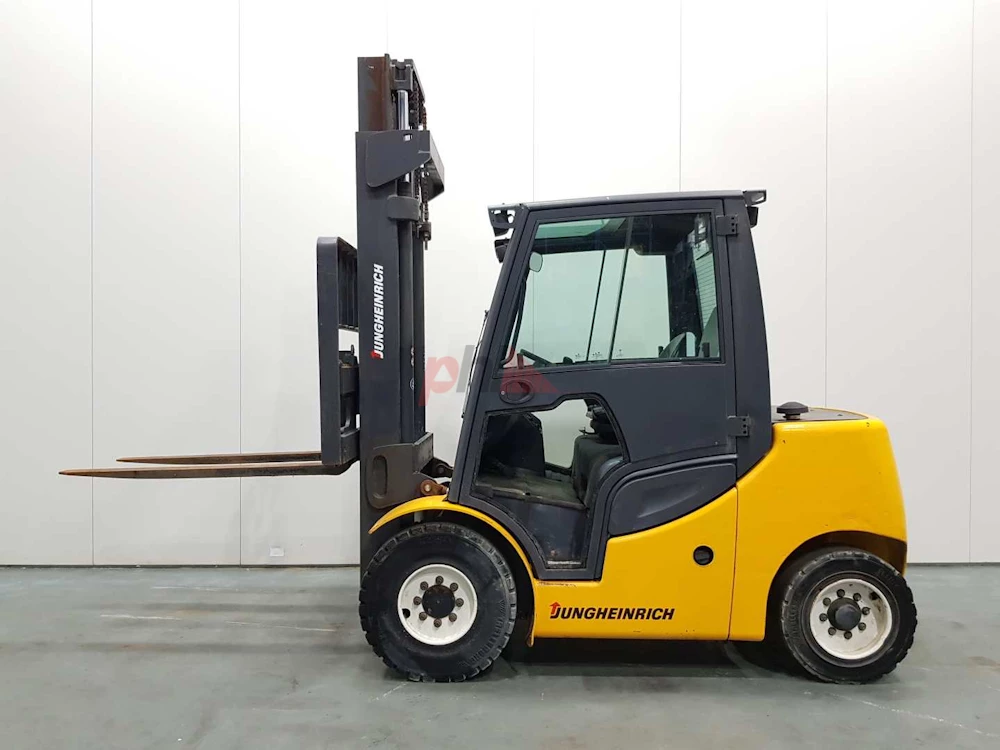

Make JUNGHEINRICH
Valves
Character.
Load Centre (c) 500 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 6343 kg
Wheels
Tyres type Superelastic
Tyres front condition 50%
Tyres rear condition 50%
Dimensions
Lift height (h3) 4000 mm
Extended height (h4) 5170 mm
Height of overhead guard (cabin) (h6) 2380 mm
Overall length (l1) 4545 mm
Length to fork face (l2) 3035 mm
Overall width (b1/b2) 1445 mm
Forks length (l) 1510 mm
Fork carriage (class) DIN 15173 / 3A
Fork carriage width (b3) 1295 mm
Length of chasis (l7) 2855 mm
Collapsed height (h1) 2740 mm
Forks height (s) 50 mm
Forks width (e) 120 mm
Performance
Service brake hydraulic/mechanical
Drive
Drive motor (60 min rating) 55 kW
Battery voltage/capacity 12V V/Ah
Attachment
Attachments (Has attachment) Forks.
Attachment type (Attachment type) Forks
Engine
Manufacturer of engine/type DEUTZ
Engine rated power (ISO 1585) 55 kW
Cylinders/Displac. ccm 4 Cylinders.
Engine type (Engine type) diesel
Extras
Extras Full Cab, Air-Con, Lights.
Extras Hyds 3rd & 4th
