CROWN REACH
REACH • Stock No: 156333 £
Login to see price Model ESR4500
Year 2007
Euromast 3F885
Hours 0
Capacity 1400 kg
Lift height 8850
Back to search results
![CROWN REACH]()
![CROWN REACH]()
![CROWN REACH]()
![CROWN REACH]()
![CROWN REACH]()
Stock No: 152607 Enquire about this vehicle Enquire via
CROWN REACH
££ Login to see price Register for a trade account Model ESR5000-14 OPT3
Year 2010
Euromast 3F750
Hours 16841
Capacity 1400 kg
Lift height 7500
Download
Share
Further Vehicle Details
Specification:
Type REACH
Make CROWN
Valves
Character.
Load Centre (c) 600 mm
Operating mode (Characteristic) Seated
Weights
Service weight (Total weight ) 3934 kg
Wheels
Tyres type Polyurethane
Dimensions
Free lift (h2) 2520 mm
Lift height (h3) 7500 mm
Extended height (h4) 8680 mm
Height of overhead guard (cabin) (h6) 2370 mm
Height of reach legs (h8) 295 mm
Overall length (l1) 2610 mm
Length to fork face (l2) 1470 mm
Overall width (b1/b2) 1290 mm
Forks length (l) 1140 mm
Fork carriage (class) DIN 15173 / 2A
Fork carriage width (b3) 960 mm
Fork spread (min/max) (b5) 260 / 670 mm
Width between legs (b4) 970 mm
Reach travel (l4) 415 mm
Length of chasis (l7) 1770 mm
Collapsed height (h1) 3020 mm
Forks height (s) 40 mm
Forks width (e) 105 mm
Performance
Service brake hydraulic/electric
Drive

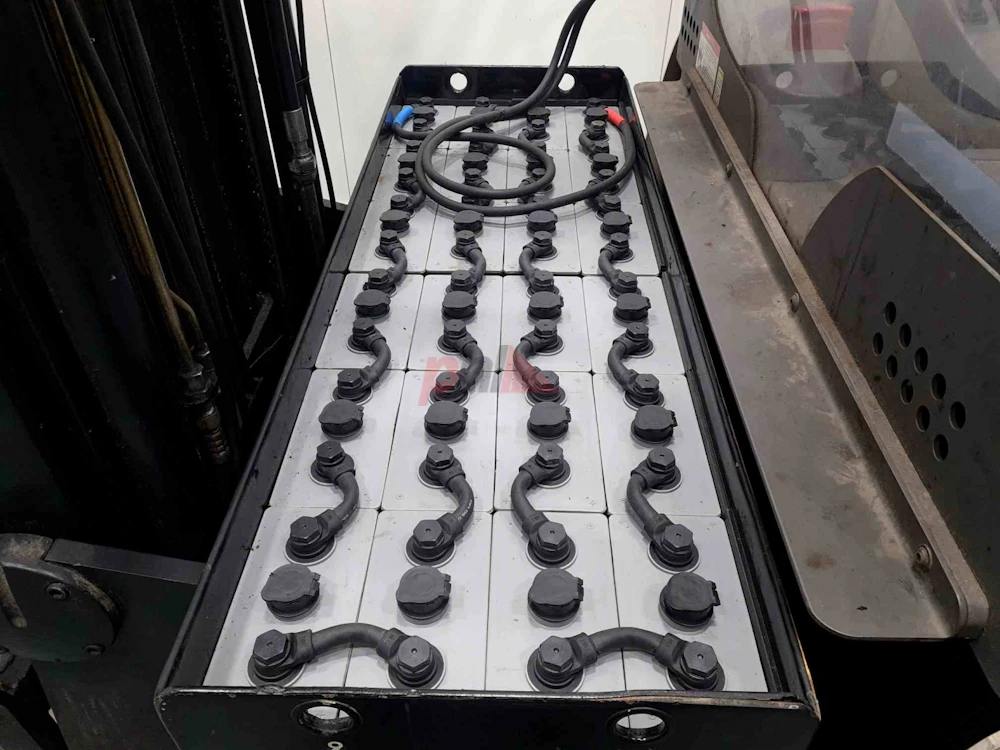

Battery weight 1175 kg
Battery class British Standard
Battery voltage/capacity 48V / 775Ah V/Ah
Battery (Acc. to DIN) WB POWERSOURCE
Attachment
Attachments (Has attachment) Sideshift and Forks.
Attachment type (Attachment type) Sideshifts
Engine
Engine type (Engine type) electric
Extras
Extras SS.
Extras Hyds 3rd & 4th
Battery
Battery Serial No WN050423009
Battery Year (Battery Year of Manufacture) 2010
